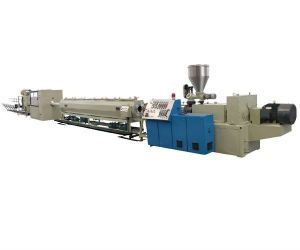

PVC pipe extrusion line
PVC pipe extrusion line can produces pvc pipe which diameter is from
16mm to 630 mm. It consist of PVC conical twin screw extruder/mold/
Vacuum calibration tank/ spray cooling water tank /haul-off unit/ cutting machine/stacker and so on. PVC pipe is widely used
In the machinery, coal mine, oil, chemical, agriculture irrigation. Gas and
Building, etc.
Feature of PVC pipe extrusion line
1. Advanced screw design ensures PVC high speed extrusion
2. Reliable temperature control system ensures the high quality pipes
3. Spiral type mold for the high quality
4. Inner heat exchange unit effects more convenient extrusion.
5. Precise set of tin bronze or phosphor bronze calibration unit with fast
Cooling design ensure high production speed
6. Center height adjustable
7.6m length of water rank effect high efficiency cooling
8. Adopt PLC control and easy operation.
Pipe Range |
16-50mm(double) |
75-160mm |
110-315mm |
315-630mm |
Extruder type |
SJZ51/105 |
SJZ65/132 |
SJZ80/156 |
SJZ92/188 |
Motor power |
22KW |
37KW |
55KW |
110KW |
Capacity |
180kg/hour |
250kg/hour |
360kg/hour |
800kg/hour |
Lineal speed |
10m/min |
6m/min |
3m/min |
1.2m/min |
Qingdao Jinfuxin Plastic Machinery Co., Ltd is a state designated enterprise producing plastic machinery and high-tech enterprise in Qingdao. Mainly engaged in research & development, manufacturing, sales, and after-sale service of new plastic machinery. Products consist of PVC Crust Foam Board Production Line, Plastic Grass Mat Machine, PET/PP Strap Production Line, PA/PP/PE/PET/PBT Filament Extruding Machine, etc. And all kinds of plastic pipe, profiles, board, bar extrusion line and auxiliary equipment. Our machines are popular with the customers, which are sold all over the country and exported to Southeast Asia, Russia, Ukraine, Iran and other countries.
Since our company has establishd, it always takes the domestic and international market as the guide, the technology as leader, the quality as the life, strengthens joint units with domestic colleges and universities of science and technology and brings in and absorbs foreign advanced technology, in a timely manner to develop new plastic industry products according to the market demand, provides customers with a complete innovative set of production line, takes customer satisfaction as the ultimate goal, to strive for the best plastic machinery in China.
And expand the Qingdao Jin Xinquan Plastic Products Co., Ltd., production of plastic corrugated pipe products are mainly used for electrical threading pipe, auto threading pipe, casing, machine tool products, food packaging machinery, electric locomotives, engineering installation, lamps and lanterns, automation instruments and meters, etc
Jinfuxin company aim "morality for the surplus, credit management, service oriented, joint development, shaping the future".
