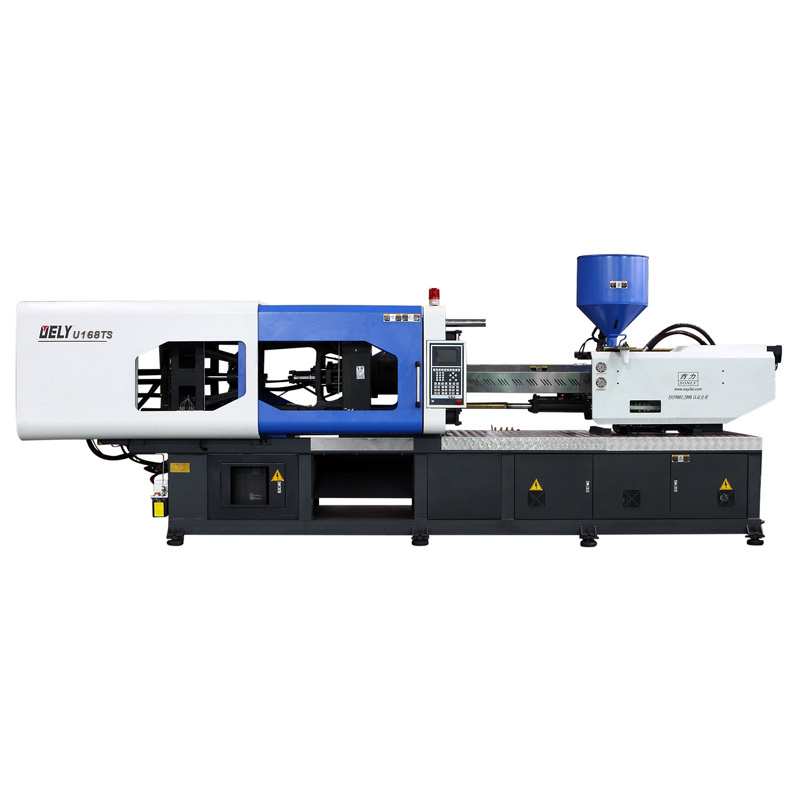

Plastic Machine Injection Molding Machine (168ton)

Plastic Machine Injection Molding Machine (168ton)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
SONLY's "U-TS"series with clamping force ranges from 98ton to 3400ton injection molding machine. Except the normal machine, it also have special machine for PVC, PET, Variable Pump, clear double color, servo-motor machine. Excellency of this series machine: A: High rigidity, excellent performance, and fast response, energy efficient and durable. B: Products have obtained praise and good comment from domestic and foreign customers with its excellent service and quality. C: We use high-quality of steel casting for the machine. D: We have testing equipment for testing the material such as the plate. E: The front and moving plate has T-slot, it is easy for change mould. Clamping unit: 1. Internally-rolled 5-point double toggle mold clamp structure, greatly increases rigidity and precision of the mold clamp unit. 2. With box type bridge structure, moving platen, and high rigidity continuous rear platen reinforced through finite-element analysis, we guarantee that the mold platens are not deformable and are durable. 3. The tie rods are made of high quality structural alloy steel plated with hard chromium, with high mechanical strength and fatigue strength. 4. Provided with low-pressure mold protection device. 5. Multi stages controlling of mold clamp pressure, speed and position. 6. Mold thickness adjusted through ring gear driven by hydraulic oil motor. 7. Several hydraulic ejection modes. Injection unit: 1. Use of double guide posts and dual-cylinder balance injection device, guarantees that balanced and uniform forces are applied on the screw during injection and moving forward. 2. High quality alloy screw nitride or with chromium plating, and nitride barrels, are protected against corrosion and fatigue, which greatly increase their service life. 3. With fine adjustment of nozzle centering. 4. Screw preplasticizing driven by high torque hydraulic motor device. 5. Multiple injection speed, pressure and position settings. 6. Special screws and barrels are provided according to different properties of engineering plastics to ensure the molding quality of finished products. Lubricant unit: 1. With use of volumetric electrical lubricator, automatic centralized lubrication and uniform oil distribution in the pipeline, the machines have high lubrication efficiency and long toggle life. Hydraulic unit: 1. Well-known oil pump and control valves in the world are used, to execute accurate controlling over the force, speed and direction of hydraulic mechanism and ensure the accuracy, reliability, stability and durability of the machine. 2. Control system of the constant displacement pump ensures steady outputs and high response. 3. Main hydraulic elements and seals are international well-known brands. 4. The pipelines are arranged more reasonably and better, and thus ensure easy maintenance. Due to constant updating of technical design, please forgive no further notice in case any change of above configuration.
U168TS Unit A B C
INJECTION  UNIT
SCREW  DIAMETER mm 40 45 48
SCREW  L/D  RATIO L/D 24.8 22 20.6
SHOT  VOLUME(THEORETICAL) cm3 313.7 397 451.7
INJECTION  PRESSURE Mpa 191.1 151 132.7
SCREW  SPEED rpm 208
SHOT  WEIGHT(THEORETICAL)(PS) g 285 361 411
SHOT  WEIGHT(THEORETICAL)(PS) oz 10.053 12.734 14.498
CLAMPING  UNIT
CLAMPING  FORCE Kn 1680
OPEN  STROKE mm 425
SPACE  BETWEEN  TIE  BARS(W*H) mm 467*467
MAX. MOULD  HEIGHT mm 500
MIN. MOULD  HEIGHT mm 170
EJECTOR  STROKE mm 130
EJECTOR  FORCE Kn 38
EJECTOR  NUMBER   4+1
DIE  HOLE  DIAMETER mm 125
OTHERS
SYSTERM  PRESSURE Mpa 16
MOTOR  POWER Kw 15
HEATING  POWER Kw 13.2
OIL  TANK  CUBAGE L 267
MACHINE  WEIGHT Ton 5
BOUNDARY  DIMENSION(L*W*H) m 5.25*1.4*2.03
SERVO  MOTOR  CAPACITY Kw 20.3

Prod Model: SONLY_U168TS
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automation: Automatic
Structure: Horizontal
Computerized: Computerized
Plastic Type: Thermoplastic
Ningbo OELY Machinery Manufacturing Co., Ltd. is a professional design and manufacture of plastic injection molding machine manufacturers, the company was founded in 1993, after 20 years of development, it has now become a certain scale and strong competitive domestic plastic machinery R&D and manufacturing enterprises.
OELY has more than 60, 000 square meters of production plant and office space, the large advanced precision machining equipment and high-quality research and development, the management team, set of manufacturing, processing, testing stop production lines, company's current annual production capacity of 5, 000 units. Established more than 40 sales outlets in the country and exported to the Middle East, South America, Southeast Asia, the CIS and other countries and regions.
Existing OELY's "U-T" series ordinary injection molding machine and SONLY"s "U-TS" series of high precision injection molding machine, servo injection molding machine, PET preform injection molding machine, PP-R pipe joints injection molding machine, fruit baskets dedicated injection molding machine, double color injection molding machine, the large two-plate injection molding machine, all-electric injection molding machines and other series, can accept the user special order.
