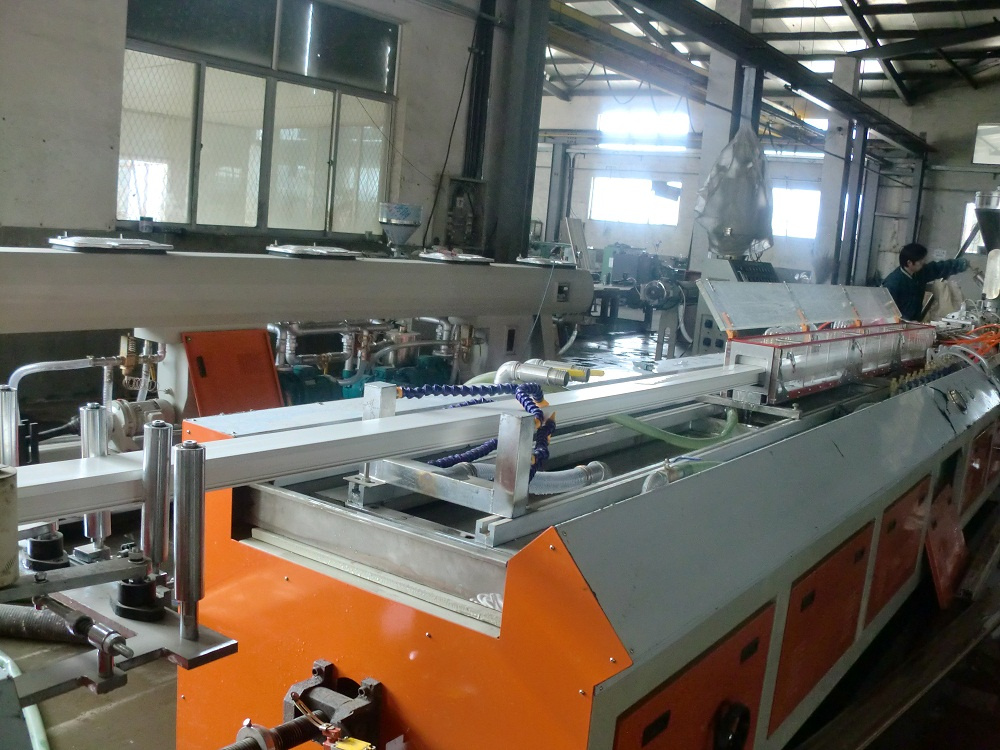

Plastic PVC Profile Extrusion Production Line is used to produce the window and door profile, wood-plastic profile, plintus, wall panel and ceiling panel, election conduit trunking chanel, decorative board etc.
ADVANTAGES OF THIS EXTRUSION LINE:
1. High automation, Even plasticization,
2. Optimized human machine interface,
3. Stable and reliable performance,
4. Safe and easy operation, durable
5. CE/ISO9001-2008/SGS/GOST certifications
6. Mia electrical parts: Omron, Schineider, ABB, Delix, Rkc, Siemens etc
THIS LINE CONSISITS OF:
1 ZJF-700 Automatic Spring Feeding Machine 1 set
2 SJSZ Series Conical Twin Screw Extrude 1 set
3. Profile Die Heads/Moulds 1 set
4 ZDY Series Vacuum Calibration Table 1 set
5 QYY Series Hauling-off Machine/Unit 1 set
6 SFL Series Stacker 1 set
Optional Devices
1 SRL-Z High Speed Hot and Cold Mixing Machine/Unit 1 set
2 SWP-Plastic Crusher 1 set
3 SMP-Plastic Milling Machine/Pulverizer 1 set
|
Name of equipments |
Spec. /Model |
YF210 |
YF240 |
YF500 |
YF800 |
|
Extruder |
Extruder model |
LSZ51/105 |
LSZ65/132 |
LSZ80/156 |
LSZ92/188 |
|
Dimension(m) |
3.3*1.45*2.1 |
3.45*1.45*2.25 |
5*1.54*2.28 |
6.2*1.55*2.7 |
|
Capacity(kg/h) |
50-150 |
80-250 |
100-350 |
200-600 |
|
Installed paower(KW) |
25 |
64 |
115 |
168 |
|
Sizing table |
Dimension(m) |
4.2*1*1.1 |
5.8*1. *1.1 |
6.5*1.5*1.1 |
6.5*1.5*1.1 |
|
Installed paower(KW) |
18 |
24 |
30 |
43 |
|
Hauling and cutting machine |
Dimension(m) |
5.8*1.1*1.7 |
5.8*1.1*1.7 |
3.1*1.3*1.7 2.2*1.45*1.8 |
3.55*1.85*1.6 2.5*1.8*1.6 |
|
Hauling speed (m/min) |
0-4 |
0-4 |
0-3 |
0-2 |
|
Hauling force (N) |
30000 |
30000 |
35000 |
50000 |
|
Max cutting area and width (mm) |
240*65 |
240*65 |
500*80 |
800*80 |
|
Installed power (KW) |
6 |
6 |
8 |
8 |
|
Stacker |
Stacking length(mm) |
6 |
6 |
6 |
6 |
Qingdao Leader Machinery Co., Ltd is an experienced and professional manufacturer of plastic extruder and extrusion lines for years. We can produce various equipments, including plastic pipe extrusion lines, plastic profile extrusion lines, plastic sheet/plate extrusion lines and also some recycling and pelletizing machines etc. According to different requirement s of each customer, our engineers will provide most professional mechanical design and manufacturing, and the complete processing technology to meet their special application requirements.
Since foundation, we have been dedicated to study and research new products, new processing technology to satisfy the updating requirements of the world, and also we continuously digest and learn from the world advanced science technology and leading process. We are always standing firm ahead domestically in the plastic-extruder field as the pioneering representative. With years of experience in design and fabrication, we newly developed LM series extrusion lines, which realized the high efficiency extrusion idea "high precision control, high efficiency production, high quality production".
Through ISO9001-2008 quality certification, CE certification, SGS certification and GOST certification for Commonwealth of Independent States, strict following the standards of modern enterprise, the overall strengthening and the effective management of production, procurement, technology, and after sale service. We win the market by high quality products and services. At present, products have been exported to the US, Korea, Russia, Ukraine, Kazakhstan, Hungary, UAE, Turkey, Iran, Saudi Arabia, South Africa, Libya, Algeria, India, Nepal, Bangladesh, Mexico, Argentina, Chile and other countries and regions, praised by customers.
