Home Mould Products Plastic Mold for Motorcycle Parts (LY-6045)

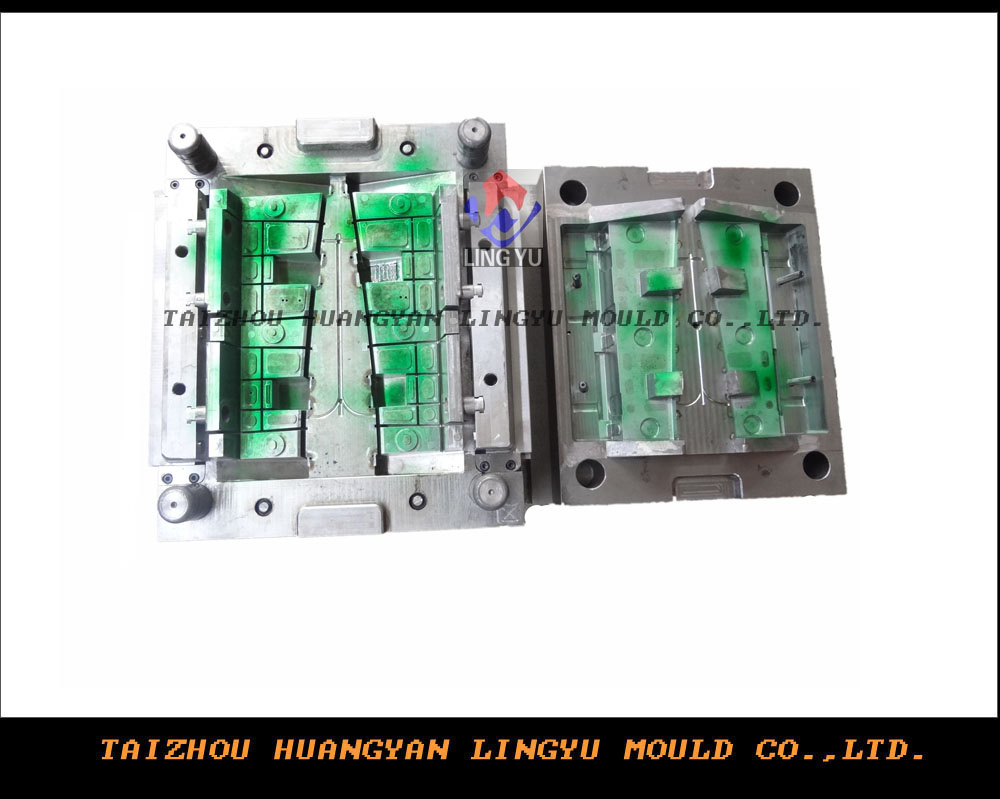

Plastic Mold for Motorcycle Parts (LY-6045)

Plastic Mold for Motorcycle Parts (LY-6045)
Price: US $ 30000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Plastic Motor Mould

Detailed MOULD Description

1)mould steel: P20, 718, 2738, etc
2)product Material: PP, ABS, PE, etc.
3)Runner: Hot/cold
4)provide 3D design
5)Cavity: Single/multi
6)mould size: 1300*890*850mm
Some details of Plastic Motor Mould
Name Description
Mould Material NAK80, S136, 2316, 2738, H13, 5CrNiMo, 718H, P20, 40Cr, 60#, 45# etc
Product Material PP, PE, PC, PA, PS, PU, PVC, PMMA, ABS etc
Cavity No. Single or multi
System Of Runner Hot runner, Cold runner, Pin-point gate, Submarine gate, etc
Ejector Type Ejector pin, Air gate, Ejector plate, Hydro-cylinder, etc
Term Of Mould Production 15days- 60days
Guaranteed Number Of Cycles 300, 000-3, 000, 000 closing
Mould Design Software Ug, Proe, Solidworks AotoCAD, Moldflow, ect

Mould Produce Process
1 Product Design Customer send us the product drawing directly or we draw the product according to the
 sample, then we send customer the product drawing to confirm
2 Mould Design We' ll start to design mould after the product drawing confirmed, then send customer the
mould drawing to confirm
3 Mould Making The mould start to make after the mould drawing confirmed, the process include
prepare steel, rough cut, finish machining, assembly etc
4 Mould Test we' ll test the mould after mould assembly, then we' ll send customer samples and
 video of mould test to confirm
5 Final Process  The mould start to polish if the sample is ok, and make grain, nitridation or chroming if
customer required
6 Mould Test We' ll test the mould again after polishing, then send customer the final sample and
video of mould test to confirm
7 Mould Packing The mould stard to pack with wooden case after the final sample confirmed, then
 the mould will be sent to port and waiting for shipping

Prod Model: LY-6045
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mould Material: Steel
Product Material: Plastic
Mould Base Material: Lkm, Hasco
Runner: Hot/Cold
Shaping Mode: Injection Mould
Process Combination Type: Single-Process Mode
Application: Motorcycle
Installation: Fixed on Injection Machine
Taizhou Huangyan Lingyu Mould Co., Ltd. is a professional plastic mould manufacturer, specializing in developing, designing, manufacturing and processing various kinds of size plastic moulds for both international and national customers. LingYu Mould produces different kinds of injection moulds, which are mainly used for auto inner parts, vehicles instrument panels, door plates, bumpers, auto radiator fans & covers, completes sets of motorcycle & fittings, household, air-conditioners or refrigerator parts, baby carriage & fittings and daily used articles. LingYu uses the latest versions of PRO-E, U. G, Cimarron, auto-CAD to output designs in full 3D formats and uses the Moldflow for the analysis of injection. With rich experience in designing, our design team has the ability to provide the financially feasible solution to meet all the requirements of clients. No business is too small, no problem is too big is the quality policy of our company. All the moulds supplied by our company come with the following features: High precision, long life, short production cycle, fast delivery, and reasonable price. Our products enjoy good popularity and high credit. We aim at providing high standard products and satisfactory service to customers. In order to create a brilliant future, we will double the effort to realize the needs of our customers.
