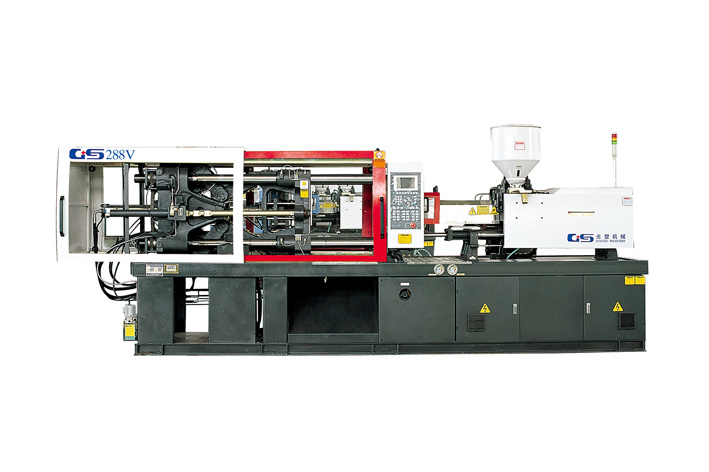

Plastic Molding Machine GS288HS
PRODUCT SHOW
GS-HS Plastic Molding Machine of oil-electric compound system control series is the product newly developed by Guangsu Company with features of economic benefits, energy saving, high response and low noise.
Structure principle: During actual working status, the system directly feedbacks the pressure-flow rate signal through exit pressure sensor of oil pump and cycloscope to the high speed servo driver. The servo driver gives out electric signal to servo driving motor and oil pump, allowing for corresponding change of pressure and flow rate, therefore, the closed circuit control of pressure and flow rate is realized.
Advantages:
Energy-saving:
Super low energy consumption, saving energy about 30% as compared to load sensitive variable pump, and about up to 80% as compared to constant flow pump, and its energy saving effect is comparable to the fully electric forming machine.
Low noise:
Reduce greatly the noise produced by pressure control operation.
Reducing cost for long term:
Realize energy saving and reduce running cost. Compared to electric type, the initial investment and maintenance cost is reduced greatly.
Easy operation:
Parameters setting and system speed adjustment are very simple digital operations. The customer only needs to operate the control panel just like common machine.
High performance:
High response (30ms-130ms), high stability, accurate repeatability and energy saving.
COMPANY INTOR
Modernized garden type factory, first-rate hardware equipment, professional science &technology team and perfect management system, ensure the outstanding product performance of "GS".
It is equipped with the modern fashion standard in the aspects of production, design, machining technique, outline design. It lays the greatstress on the development, absorbs and introduces the excellent managing concepts, studies and develops the top grade skill and technology, fosters the professionally qualified personnel. Executing one-stop service and special-people responsible system to the sale, design, installation, troubleshooting and maintenance, we have accumulated abundant practial experien and products adjustment data.
Following the principle of "Technology oriented, Management innovation, Quality first and Customer uppermost", the company is continuing to enhance the development capacity, focusing on the development of a series of products with leading level at home and surpassing the international level, making it the new highlight of economic growth of the company. At the same time, the company has launched a series of new measures in the aspect of management and quality control, and strengthened the cooperation with the domestic and international scientific research institutes and famous enterprise to build the "GS" brand. Under the leadship of the company, all the staffs have decided to carry on the spirit of "Union, Struugle, Practice, Devotion, Innovation and Development" leading the company to a first-class famous enterprise.
Glorious GS, Steer the flourishing future. We welcome all domestic and international customers to visit us and give us intructions. Just as what we did before, we shall continue to try our level best to provide our customers with professional and considerate service to gain the confidence and support from both the old and new customers.
Shanghai GS(GuangSu) Machinery Manufacture Co., Ltd
AddNo. 888, Kungang Rd, Songjiang Sci. & Tech. Park, Shanghai, China
Tel +8621-5785 0702; 5785 0726; 5785 0727
Fax +8621-5785 0725
P. C 201614
|
Injection Unit |
GS288HS |
|
|
A |
B |
C |
|
INJECTION UNIT |
Screw Diameter |
mm |
55 |
60 |
65 |
|
Screw L/D Ratio |
L/D |
21.8 |
20 |
18.5 |
|
Shot size(Theoretical) |
cm3 |
713 |
848 |
995 |
|
(PS) Injection Weight |
g |
649 |
772 |
906 |
|
PS Injection Rate |
g/s |
184 |
219 |
257 |
|
PS Plasticizing capacity |
g/s |
43 |
53 |
67 |
|
Injection Pressure |
Mpa |
219 |
184 |
257 |
|
Screw stroke |
mm |
300 |
|
Screw Speed |
rpm |
0-170 |
|
CLAMPING UNIT |
Clamp Tonnage |
KN |
2880 |
|
Toggle stroke |
mm |
590 |
|
Space Between Tie Bars |
mm |
630*630 |
|
Max.Mold Height |
mm |
630 |
|
Min.Mold height |
mm |
230 |
|
Ejector stroke |
mm |
150 |
|
Ejector tonnage |
KN |
62 |
|
Ejctor Numbre |
peicc |
13 |
|
Max.Pump Pressure |
Mpa |
16 |
|
OTHERS |
Pump Motor Power |
KW |
37 |
|
Heater Power |
KW |
18.1 |
|
PS Hopper Capacity |
Kg |
50 |
|
Oil Tank Capacity |
L |
350 |
|
Machine Dimension(L*W*H) |
m |
6.21*1.84*2.03 |
|
Machine Weight |
t |
11 |
Shanghai Guangsu Plastics Manufacture Co., Ltd., locates in Shanghai Songjiang Hi-tech Park, covering an area of 238 mu. As situated at the exit Dagang near HuHang Highway and TongSan Highway, as well as neighboring Shanghai University City and the terminal station of Shanghai Metro Line 9---Songjiang New City Station, It enjoys very convenient transportation.
Having consistently adhered to the operation concept of "Excellent Products, Star-grade Service", the plastic injection machine of "Guangsu" brand is well popular in plastic machinery industry by its advantages of high quality, high efficiency and energy saving etc. The main products of the company include GM series plastic injection machine with constant-flow pump, HS series energy-saving plastic injection machine with servo-motor GSV series variable energy-saving plastic injection machine and other plastic injection machines of more than 40 specifications as well as relevant auxiliary machines and molds, with its range covering from 50t to 2000t, and the injection amount from 30g to 10000g. At same time, the company has rich experience and excellent cooperation suppliers for peripheral equipments of plastic formation products.
The annual output of plastic injection machine reaches up to over 3200sets, with its sales network covering all over the country. The products are also exported to more than 50 countries and regions in Europe, Central America, Middle East, South East Asia and Africa, such as Russia, USA, Romania, Turkey, India, Syria, Iran, Burma, Nigeria, and Cameroon. Meanwhile, in order to be adapted to the product processing demand of various industries, the company has developed the permanent suppliers for auxiliary equipments of plastic processing and mould processing manufacturers for the purpose of satisfying the processing demand for all kinds of products. The company has fully introduced the advanced CNC processing center from abroad to ensure the excellent quality of Guangming plastic injection machinery. The company has also taken the lead in the industry to pass the attestation of ISO9001-2000 quality management system standard and CE certification.
Following the principle of "Technology oriented, Management innovation, Quality first and Customer uttermost", the company has continued to enhance the development force, focusing on the development of a series of products with leading level at home and surpassing the international level, to make it become the new highlight for economic growth of the company. At same time, the company has introduced a series of new measures in the aspect of management and quality control, strengthened the collaboration with the domestic and international scientific research institutes and famous enterprise, creating carefully the brand "Guangsu" and improving the customer satisfaction. Under the leadership of the company, all the staffs have decided to carry on the spirit of "Union, Struggle, Practical, Devotion, Innovation and Development" to build the company as a first class famous enterprise. We'd like to give our sincere thanks to the friends from all circles for their support and care. We welcome the presence of all kinds of customers!
Guangsu machinery, molds the brilliant future. We welcome all domestic and international customers to visit us and give us instructions. We will spare no efforts to provide our customers the more overall, professional and considerate service, to gain the confidence and support from both the old and new customers.
