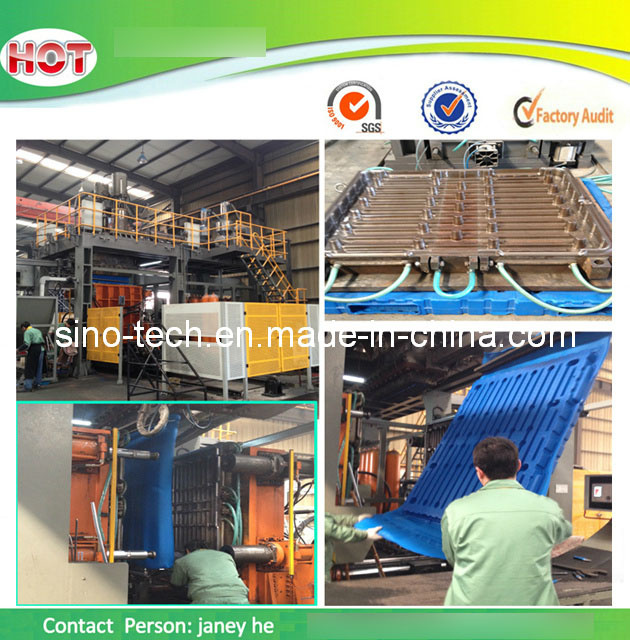

Plastic Pallet Blow Molding Machine

Plastic Pallet Blow Molding Machine
Price: US $ 800000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Western Union
Plastic Pallet blow molding machine

Good quality and best price can make your needs

It is a special machines used for producing products with High Molecular Weight High Density
Polyethylene (HMWHDPE) as the raw material, including oversize plastic wall panels, door panels, ocean buoys, safety barriers for highway, athletic equipments, and plastic products of recreational facilities. The machines is designed and manufactured in accordance with standards of similar machine models of Germany, and this machine model has the optimized performance price ratio in the world.

TDB160E is an accumulation and injection type extrusion blow molding machine which can produce plastic door panels and plastic desktop panels. It has reasonable structure and steady and reliable performance.
ItemCode ItemStandard CodeManual
Extruder
(Main extruder)

















Max. capacity160L
Main screwφ100mmHigh efficiency of mixing
Screw L/D 28: 1
Screw material
38CrMoALA
Max. extruder consumption200KG/HrTake HDPE for example, change with material density
Twisting transition method Electrical FESTO, Germany machinery, Gear box, Leather belt transmissionHard gear surface decelerator
Driving motor75KW
Screw rotate speed10---70r/min
Ahead/back adjustingYes
Up/down adjustingYes
Temperature control zone5Japan MTSUBISHI
Heating power4φ9.5KW
Cooling for blower 4
Cooling functionYesCooling water
Clamping unit   (Mold opening/closing unit)Structure
With patented TONGDA two-bar timing clamping structure in high speed and high force, to achieve quality products.
Clamping directionsBall railFor high precise location for longer service life.
Clamping speed450mm/sce;
27m/min

Platen dimension1600*1900 mmW*H
Max. mold dimension1300*2000 mmW*H
Mold opening stroke1400 mm
Platen distance500~1900 mmMin.~Max.
Clamping force1100 KN
Mould thickness scope650~1400 mm
Fixing pattern of moldMold press platen
Mold opening/closing stroke controlInducing switch+movingDiscriminate mold opening/ closing end, mold opening/ closing slow speed,
Light electric safety protect
Taiwan FOTEK
Die head













FormAccumulatorFirst in, first out
Material
38CrMoALA, inner mirror treatment
Accumulator volume 18L
Output of injecting13.5KgHDPE, density: 0.75g/cm3
Die dimension sizeφ100~ 510mmMin.~Max.
Heating method
Stainless steel heating ring, precision + 1%
Heating power4φ15.6KW
Temperature control zone4
Blow-airYes
Adjusting of parison thicknessYesMOOG 100-point
Injecting stroke control
Accumulator electronic ruler + limit switch
Adjusting method of thicknessInner mold adjusting
Adjusting output at axial direction+ 5mm
Injecting pressure0~150kgTONGDA 10-point pressure adjusting control
Max. injecting speed1.6kg/secNot sure
Top blowingBlow-air control method
Discriminate high/low blow-air
Side blowingBlow-air control method
Discriminate high/low blow-air
Bottom blowingBlow pin stroke controlInducing switchDiscriminate blow pin up/down end
 Blow-air control method
Discriminate high/low blow-air
Blow pin cooling functionCooling water1-in 1-out cooling system
Blow pin supporting material YesChangeable
Adjusting of blow pin position
Ahead/back, left/right, up/down adjusting
Mechanical handRunning methodFESTOGermany
Direction controlBall railHigh precise and speed
Electric system



Temperature controlMITUSBISHMITUSBISH, PID control
Load protection

Movement controlMITUSBISH PLC
Operation interfaceHuman-machine interfaceHITECH, Taiwan
Time settingTouch screen
Oil pressure system



Main motor37KW
Main oil pumpDENISONAmerican
Movement control methodProportion pressure control0~999
Direction controlAIRTECTaiwan
Max. pressure150kg/cm2
Air-pressure systemDirection controlAIRTECTaiwan
Pressure controlSeparated
Max. pressure8kg/cm, 1.2m3/minAll air pipes are connected by PU pipe
Other reference





Lubrication way

Oil pressure cooling
Cooling effect is achieved by oil pressure cooling
Mold cooling
Separated cooling water resource, use 5-in 5-out fix (single side)
Gear box, hopper place, die dimension cooling
Use separated cooling water circuit, insure cooling effect
Overall dimension L*W*H5930*3000*5600mm
WeightTON22.0T
Prod Model: TDB 1200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Production Name: Plastic Pallet Blow Molding Machine
Usage: Big Plastic Panel Forming
Type: Extrusion Blow Molding Machine
Making Method Of Parison: Extrusion-Blow Molding
Automation: Automatic
Computerized: Computerized
Raw Material: PP, PE, HDPE...
Certification: CE, SGS, ISO9001
Zhangjiagang Sino-tech Machinery Co., Ltd. is a group company located in the beautiful seaport city of Zhangjiagang, which is near to Shanghai. We devote ourselves to the development, research and production of plastic machine, beverage equipments filling and packing industry and automatic blow molding machine with over 20 years'experience.
Now our equipments have been exported to USA, Canada, Mexico, Colombia, Brazil, Argentina, UK, France, Germany, Belgium, Russia, Saudi Arabia, UAE, Yemen, Iran, Oman, Syria, Jordan, Israel, Egypt, Japan, Philippines, Myanmar, and India etc...

For plastic machine: , Our main products include as follow

Big-mouth PVC pipe excluding production line
PE big-mouth for gas, water supply excluding production line
Plastic sheet or panel production lin
Plastic profile production line
Plastic granulating production line
Plastic recycling machine
PP-R pipe production line
Plastics extruder
High speed mixer, various plastic auxiliary machines

For beverage machine, our Main products include as follow
The capacity of 2000-- 40000 BPH for mineral water and purified water producing line.
The capacity of 2000-- 40000 BPH for hot filling, MID-temp filling, aseptic cold filling lines.
The capacity of 2000 -- 36000 BPH for carbonated beverage producing line.
The capacity of 300 -- 1200BBH 3 gallon, 5 gallon barrel filling line
The capacity of 1000 -- 12000BBH glass bottle beer filling line
The capacity of 2000 -- 25000BH ice pop, ice lolly filling production line
Various kinds of linear and rotary engine oil and edible oil filling line
All kinds of water treatment equipment.
PET perform injection and blowing-stretching machine.
Extrusion blow molding machine
Turn-key projects
Flat and tube UHT device, and CIP system.

SINO-TECH purpose is "keep developing to meet worldwide clients' demands. "

Welcome to visit our company. Thank you!
