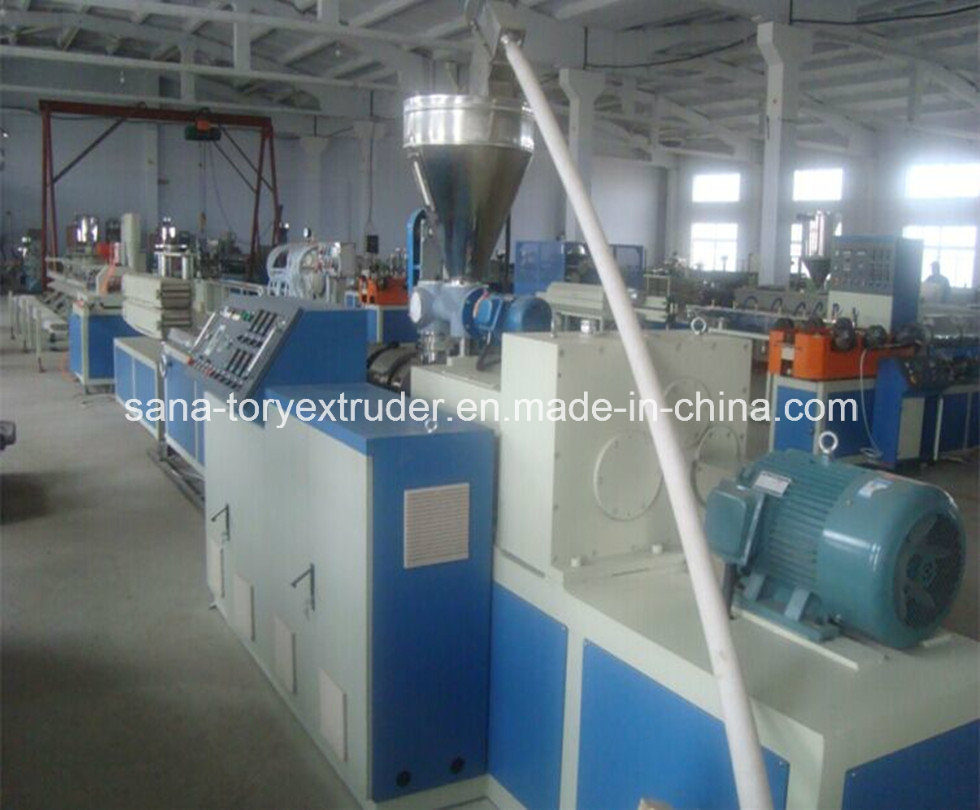

Plastic PE Single Wall Corrugated Pipe Making Machine
Characteristics: Special designed screw and mould; the convenient and reliable changing of the mould have solved the problems of easy wear of the barrel and hard foamed of the material. The production line is running fast, stably and easy to operate.
Material: Nylon, temperature range: - 40°C-115°C without halogen. The oil-proof, acid-proof and flame retardant ratio is HB(UL94); The black pipe is resistant to the ultraviolet radiation.
Material: Polypropylene (PP), temperature range: - 20°C-110°C; oil-proof, acid and alkali-resistance, the black pipe is resistant to the ultraviolet radiation.
Material: Polythene (PE), temperature range: - 40°C-80°C; oil-proof, acid and alkali-resistance, the black pipe is resistant to the ultraviolet radiation.
Material: PVC; temperature range: - 10°C-95°C oil-proof, acid and alkali-resistance, the black pipe is resistant to the ultraviolet radiation.
Main technical parameters:
Model |
ST-10 |
ST-32 |
ST-50 |
ST-110. |
ST-160 |
Screw diameter(mm). |
Φ45 |
Φ45 |
Φ65 |
Φ65 |
Φ75 |
ratio (L/D) |
25-30:1 |
25-30:1 |
25-30:1 |
32:1 |
33:1 |
Total installed power(kW) |
45 |
50 |
70 |
80 |
100 |
Pipe spec.(mm) |
Φ6-Φ10 |
Φ10-Φ32 |
Φ16-Φ50 |
Φ50-Φ75 |
Φ90-Φ160 |
Hauling speed (m/min) |
10-20 |
5-10 |
2-5 |
1-3 |
0.5-2 |
Based of extensive experience over many years in the field of plastic extruder machinery technology our business activities are as follows:
Planing, design and Manufacturer of plastic extruder mainly for the plastic sheet/pipe/profile extrusion line, and we also supply all kind of plastic raw material to support different customer needs.
We supplies extruder and extrusion lines manufactured in our own production facility and engineered specifically to meet the needs of customers in international markets.
We would like to offer our quality to you, and looking forward to discussing your special plastic extrusion line solution individually and professionally.
