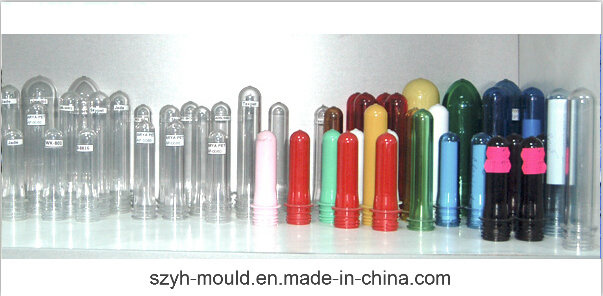

Plastic Pet Preform Injection Multi Cavity Mould

Plastic Pet Preform Injection Multi Cavity Mould
Price: US $ 1000-500000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Specifications 1. Cavity numbers range from 8 to 96, with Valve gate. 2. Hot runner or Cold runner, is up to customer. 3. Materials for cavity, core: Germany 2316, P20 or specified by customer. Product Desciption 1. Needle Valve of No-Cutting PET Preform Moulds 2. The number of PET preform mould cavities is up to 96 cavities for standard neck finishes, such as PCO1881, PCO1810. The cam roller design for the thread splits helps operator maintenance freely. 3. Individual Valve-Gate unit with balanced hot runner system. 4. Dual Tapers design for Lock 5. Materials: Mould cavity, core, cavity: Germany 2316 or specified by customer. Valve pin: SKD51 from Japan THE MATERIAL OF THE MOLD Mould cavity Germany 2316 with HRC 42-45 Mould core Germany 2316 with HRC 45-48 Valve Pin SKD51 from Japan with HRC 58-60 Valve Pin heat Isolation pad America Dupont can withstand 350 degrees temperature Hot runner nozzle America Beryllium copper with HRC 37 Mould manifold plate H13 from America with HRC 35-38 Mould other plate P20 Other Specification of the Mould Hot runner system can be choose by customer
Prod Model: YHM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 480*530*430
Steel: 1.2316/1.2344/8407/S136
Designing Software: Ug
Finish: Polishing
Shaping Mode: Injection Mould
Application: Hardware
Installation: Fixed
Process Combination Type: Single-Process Mode
Established in the city of Shenzhen, Shenzhen Yuhong Precision Mould Co., Ltd, a company specialized in making procision mould, enjoys advantageous geographic location and advanced traffic network. Currently, the factory of Yuhong covers over 5000 square meters and was equited with advenced facilities as well as a team of proffesional designer and engineer. By virtue of its years professional production experience, Yuhong constantly absorb advanced teachnologies internationally and strive to provide our customers with high quality automatic hot runner multi-cavity and bottle cap/pre-form injection moulds like plastic packages, cosmetic bottle caps, tubes, pump heads, mineral water bottle caps(3025), thin wall mould, Laboratory&Diagnostics, medicine bottler caps as well as PET injection mold.

Yuhong Precision Mould is committed to invole the concept of innovation and profession into its production practice, precisely grasp the traits of cap moulds such as multi-cavity, standardization, high efficiency and long moulding life. Our development is base on new technology and production process for designing and manufacture. In order to make high quality mold, Yuhong adopts only the high quality steel, which, after fine processing, greatly enhances the hardness as well as the anti-corrosioness of the mould. The hot runner technology and digital control technique, plus the hardwork of our skilled workers, makes almost all the mold Yuhong made are precision mold. High quality is always our first and most important pursue.

Yuhong Precision Mould upholds "people-oriented, technology-centric, customer first" philosophy. Advanced technology and management mode, continuous improvement, and never satisfied spirit has always been the pursue of Yuhong.
