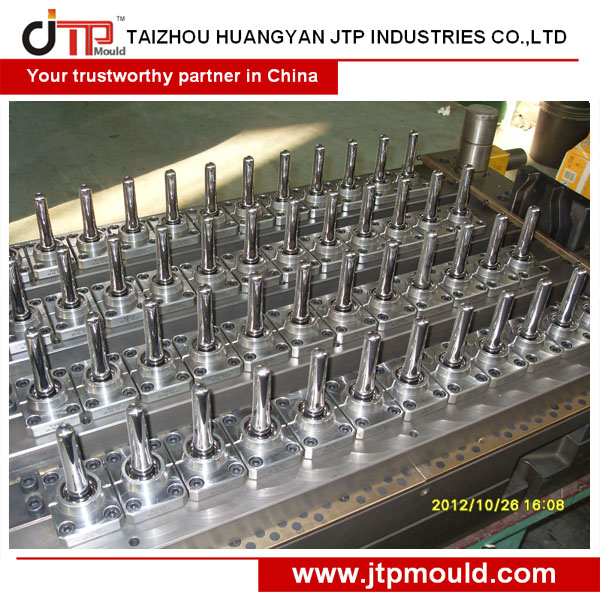

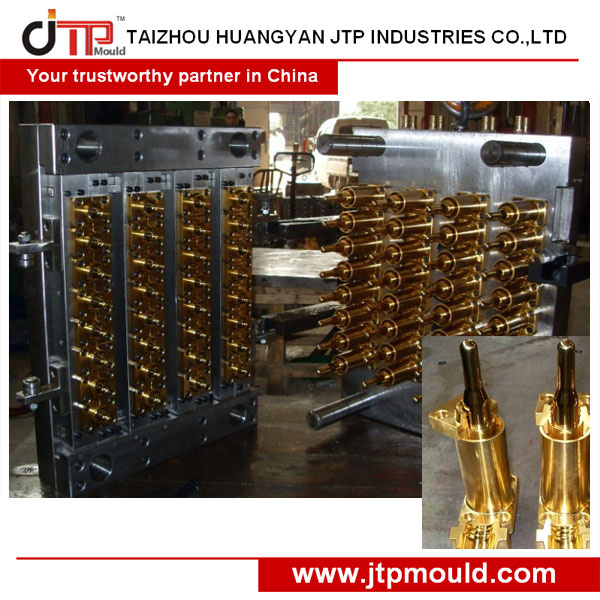

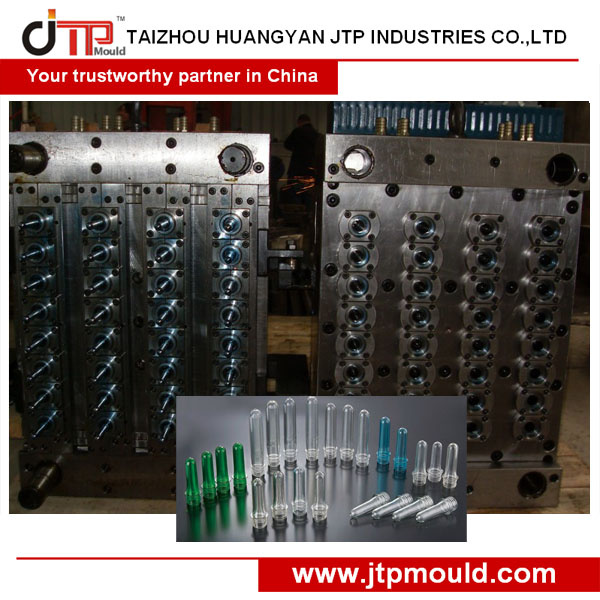

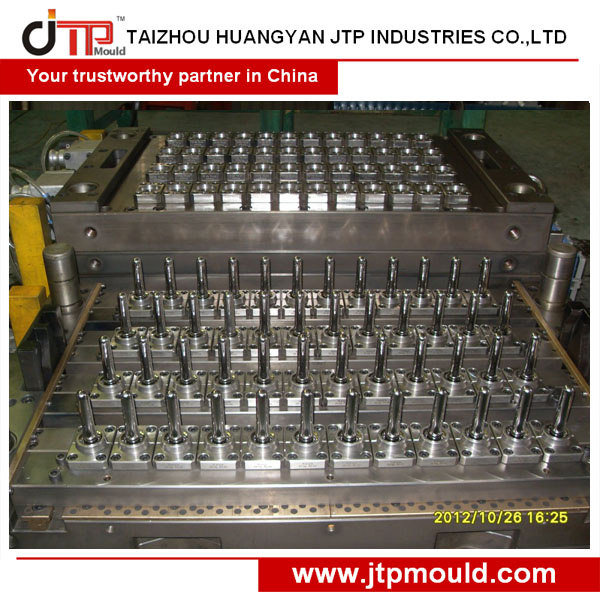

Plastic Pet Preform Mould

Plastic Pet Preform Mould
Price: US $ 750/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
JTP MOULD have built so many kinds design & size of PET preform moulds,

Now I'd like to let you know much more about PET preform mould from JTP MOULD.


1. PET Preform Mould Design


    JTP MOULD not only design preforms with standard neck size for water preform, carbonated drink preform and oil preform,

    but also design preform with special shape according to customer's requests.

    JTP MOULD adopts a wide range of computer-aided engineering service from design conception to the finished products to make customer satisfied.

 2. Injection System
     A. valve gate
         JTP MOULD usually use an advanced valve gate unit for PET preform mould,
          this special system can control the injection hole on each cavity, making it open and close,
          reliable sealing function, smoothing moving, low thermal expansion rate and long using life are all its main features.
     B. pin point gate
         Some customers will choose pin point gate for PET preform mould to reduce the costs.
         This is also many customers' good choice.
     C. direct gate
          PET preform mould with direct gate is much cheaper than moulds with other injeciton gate,
          but it will increase the labor costs to deal with the gate on products.
3. Heating System
    JTP Mould usually use double heating system to ensure perfect heating effect on PET preform mould.
    It has separate temperature control mode: the heater bars are used to heat the mold's manifold plate;
    the small heaters are used to supply the continuous heating temperature for cavity nozzle.
4. Cooling System
    A special design of cooling system with perfect cooling effect for each inner parts including core, cavity and valve gate system of PET preform moulds.
5. Hot runner System
    JTP MOULD adopts specially designed hot runner system to achieve ideal and prompt heating effect for PET preform production.
    Larger flowing channels of such hot runner system ensures the mould to produce preform with lower injeciton pressure, which reduces mould's each part's wear & tear, maintenance cost and saves electric energy.
6. Steel material and machining tools
    Cavity & core steel is imported mould steel with fine polishing, high hardness and anti-corrosion to guarantee mould's high precession and good quality.
     Digital Control Lathe, EDM, jig-boring machine and high-precision grinding machine have been used on mould machining.
     High machining precision and fast machining speed ensure JTP MOULD's high quality moulds.
7. Heat treatment of steel
    After mechanical treatment, enhance steel's strength and prolong mould service life.
    For example, we coat chrome on the mould plate surface for rustproof purpose and go on nitrogen treatment on neck part to increase its hardness.
    With right operation, PET preform mould from JTP MOULD can reach to 2.5 million shots.
8. After- purchase service
    Each set of PET preform mould undergoes strict mould trials before shippment and attached with full set of parameter .
    Together with the PET preform mould, full set of spare parts will be supplied for free to keep mould normal working.
    In the using of PET preform mould, JTP MOULD provides adequate spare parts to any requests and JTP MOULD service department are willing to provide technical support immediately for any possible requests in any time.
Now here, I think you've know more about PET preform mould and JTP MOULD, please contact us directly if you have any PET preform mould plans,  you'd better send us the drawings or pictures of PET preform with your mould requests, then we can offer you the best mould solution and good price accordingly!
Prod Model: PET Preform
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shaping Mode: Injection Mould
Application: Home Use
Installation: Fixed
Jtp Mould is located in Huangyan, Zhejiang, China. It only takes 40 minutes from Luqiao Airport and takes only 10 minutes from Taizhou train station. We enjoy the convenient transportation in our city.

Jtp Mould is known as one of the best manufacturers and exporters for plastic injection moulds for household articles, chair mould, pallet mould, crate mould, automotive mould and so on. Our moulds are mainly exported to Italy, Australia, Saudi Arabia, Jordan, Argentina, Colombia, India, Malaysia, Philippines and other 20 countries.

We have a full range of CNC machining centers, large gantry milling machines, vertical milling machines, CNC engraving Machines, electric spark(EDM), wire-cutters, etc. We have advanced technology for CAD / CAM / CAE design and rich experiences in mould making. This makes us to have great ability to manufacture big size moulds, complex moulds, deep-cavity moulds, thin wall moulds and high precision moulds.

We have a strong technical team. We have 5 senior designers and 20 engineers who has more than 15years experiences in mould making. Our designers are good at designing new products and mould structure. In order to avoid any defects during the mould manufacturing, we usually do the mould flow analysis for the mould before we start the work on it. After mould flow analysis, we decide the mould injection gate and structure. Therefore, the mould can be finished successfully and smoothly.

Our current main business are as follows:

1) household moulds: Plastic chair, table, buckets, laundry basket, trash bin, kitchenware, etc.

2) Industrial moulds: Pallet mould, crate mould, paint container mould, etc.

3) Thin wall moulds: Thin wall cup, thinwall tablewares, etc.

4) Pipe fitting moulds: PPR pipe fittings, PE, PVC pipe fittings.

5) Automotive parts: Bumper mould, dashboard mould, etc.

6) packaging moulds: Blowing mould, bottle mould, cap mould, etc.

Why will you choose us:

1. Good quality

2. Punctual delivery time

3. Competitive prices

4. Excellent after-sale service.

5. Professional communication with customers during mould process.

6. We can provide whole set of production line for injection molding.

We always focus on perfection on quality and services. We would like to supply our best services and our best products to all the customers.

Please feel free to contact us by telephone, email or Messenger any time if you are interested in our company. You are always welcome to visit our company.

Let' S start our cooperation and create mutual benefits for each other soon!
