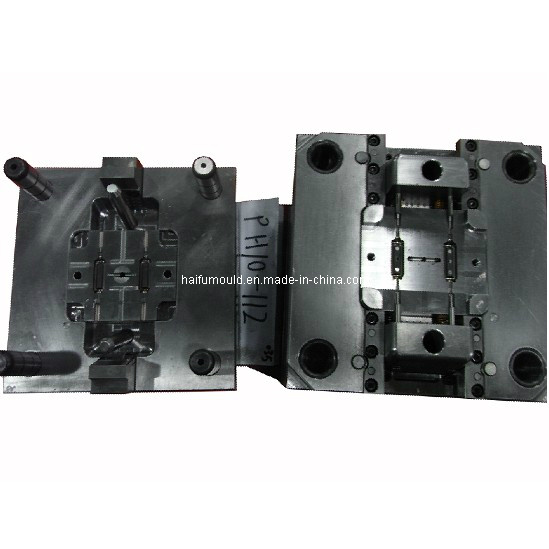

Plastic Pipe Fitting Injection Mould

Plastic Pipe Fitting Injection Mould
Price: US $ 3000-30000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Money Gram,Western Union
Plastic Pipe Fitting Injection Mould

Mould Base Standard: LKM, Hasco, DME
Mould Steel: H13, 1.2344, 8407, S136, DC11, DC53
Plastic Raw Material: PP, ABS, PE, PA6, PA66, PA66GF30, TPE, TPU, PPGF30, PBT
Initial Mould tryout: 30-45 days
Package: Wooden Box
Payment Terms: T/T, 40% deposit with P. O, 40% payment after submission the first trial
Samples, 20% Balance after samples approval before shipping.

Mold Making Instructions:

Customer RFQ--->Tooling Offer--->Price Approval--->Customer order
2D/3D Mold design confirmation--->Tooling Schedule--->Mold manufacturing
--->Mold Tryout--->Sample Delivery--->Improvement Suggestions--->Mold Modification
--->Mold Approval--->Pilot Runs--->Mold Delivery

Our experienced team offers innovative solutions in part, product and mold design and project management.
Haifu Mould Main Technique Parameters  :
Base LKM, Hasco, DME or by requested
Cavity Material DC11, DC53 , 718H, P20, NAK80, 2316
Product Material PP, ABS, PE, PA6, PA66, PA66GF30, TPE, TPU, PPGF30, PBT
Structure Double color injection mould, Solid Mould, Insert Mould, Mould with Slide, Mould with Lifter
Runner System Hot runner / Cold runner
Injection System Direct Gate, Side Gate, Point Gate, Sub Gate, etc.
Ejector System Ejector Pin
Mould Size Up to 2 meters and 15 Ton
No. Of Cavities Single cavity, multi cavity by requested
Finish Corrosion word, Mirror finish, Brushed
Longevity 0.5-1 million shots
Mould standard HASCO, DME, MISUMI, or by requested etc.
Software Auto CAD, UG, Catia, Solid-works, etc
Tolerance ± 0.02mm
Design Time 3-7days
Sample Time 3-7days
Main Technique Milling, Grinding, EDM, Wire-cutting, Engraving, CNC, and 2.5 Dimension test, etc.
Production time 2- 7 weeks, depends on mould structure
Initial Mould tryout 30-45 days
Packing Wooden box   or by request
Remarks:  Special requirements of different models can be customized.

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shaping Mode: Injection Mould
Application: Pipe Fitting
We are capable of from small to large plastic mould from design to production with Quality, Timely Delivery and Cost Efficiency being the three important foundation pillars of the company. With over 14 years experiences in this area. Our key strengths are in manufacturing of Plastic injection moulds, Zinc alloy & aluminum alloy die casting moulds.

Our Injection Molds are designed and manufactured in Automotive Parts, Office Appliances, Electronics Appliance, Medical products, Telecommunication, Household Appliance and Industrial Products etc.

Our in house facilities include:
*Product Development, Mould Design & Tool Making
*Injection Moulding
*Production, Assembly and Packaging

Win-win, Honesty, Teamwork, is our company culture. We always do business on the basis of equality, mutual benefits and long time cooperative relationship. We sincerely look forward to becoming a good partner with you. We will make our most efforts to meet your demands based on competitive price, high efficiency and good service.

Manufacturing injection moulds from us! !
1, Increases your competetive advantage
2, On time mold delivery
3, Maximises productivity

We can design mould bases and standard components according to customer's requirement, such as LKM, Hasco, DME standard.

With a variety of offerings to choose from, we're sure you'll be happy working with us. Look around our website and if you have any comments or questions, please feel free to contact us.
