Plastic/PP/PVC/WPC/PE Profile Extrusion/Production Line

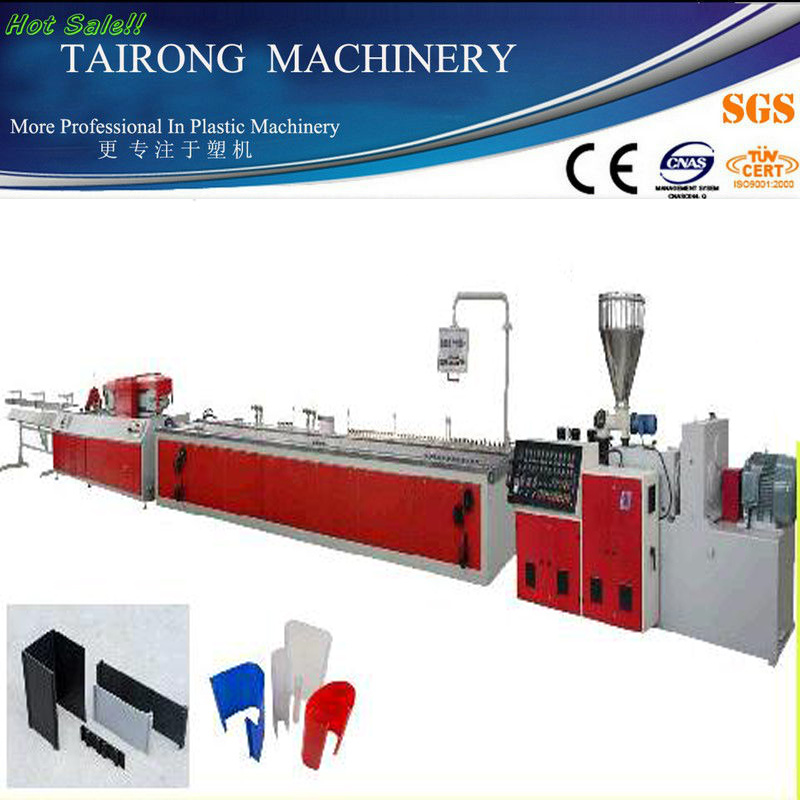

Plastic Profile Extrusion Line
This production line is composed of Conical Twin-screw Extruder, Calibration Table, Haul-off, Cutter, Stacker.
This line could produce PVC door&window profile, PVC foamed profile, etc. By changing the Screws, Barrels&Moulds.
|
Model |
LYF-180 |
LYF-240 |
LYF-400 |
LYF-610 |
LYF-810 |
|
Length of the calibration table (mm) |
4000 |
6000 |
8000 |
9000 |
11000 |
|
Max profile width (mm) |
180 |
240 |
400 |
610 |
810 |
|
Drawing speed (m/min) |
0-8 |
0-6 |
0-5 |
0-5 |
0-5 |
|
Power of extruder |
SJZ51/105
18.5KW
(22kw) |
SJZ55/110
22kw |
SJZ65/132
37kw |
SJZ80/156
55kw
(75KW) |
SJZ92/188
110kw
|
|
Length of the calibration table (mm) |
4000 |
5000 |
6000 |
8000 |
|
Zhangjiagang Tairong Machinery Co., Ltd. is located in the economically developed Yangtze River Delta, east to Shanghai, south to Suzhou and west to Nanjing. The geographic location is extremely advantageous.
TAIRONG integrates the research, development, production, and trade of plastic machinery. Our company has a strong technical team and a perfect after-sales service system. We have won customers' consistent high praise.
Our main products are no-dust cutting machines, PPR, PERT, PEX-B pipe high-speed extrusion production lines, gas pipe extrusion lines, fiberglass composite enhanced PP-R pipe production lines, PEX-A cross-linked pipe production lines, single/double screw extruders, washing line, granulating production lines and dryers, feeding machines, crushers, water chillers and other types of plastic auxiliary equipment.
TAIRONG Machinery has strong technical strength, excellent processing equipment, and leading R & D capability. Our company has always insisted on the business purposes of "prestige first, customer first, full service". We have provided clients with better quality, complete service and technical support.
