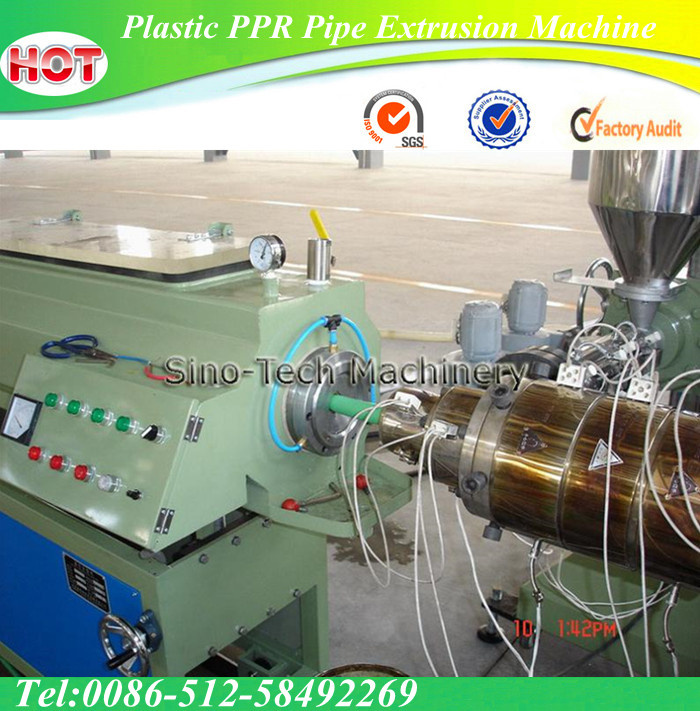

Machine: PPR pipe extrusion machine
Configuration:
Single screw extruder
Marking extruder (Optional)
Mould
Vacuum tank
Calibration tank
Haul off
Cutter
Stacker
Application and features:
This line is mainly used for extruding PPR PERT etc pipe products. Equipped with co-extrusion machine head it can produce PPR fibre composite pipe.
1. The design of groove feeding barrel and barrier type screw can improve the efficiency of plasticization. The extruding capacity is high and melting temperature and pressure is low and save energy source.
2. The filtering type mould head are adopted, which guarantee the material is sheared overly and prevent the material from being degraded.
model |
PP-R63 |
PP-R110 |
pipe range(mm) |
20-63 |
63-110 |
capacity(kg/h) |
90 |
150 |
center height(mm) |
1000 |
1000 |
single screw
extruder |
extruder model |
SJ65 |
SJ90 |
screw diameter(mm) |
65 |
90 |
L/D |
30:1 32:1 |
28:1 30:132:1 |
Screw rotation speed(rmp) |
80 |
70 |
motor power(kw) |
30/37 |
45/55 |
heating power(kw) |
20 |
30 |
coolin blower power(kw) |
0.18 |
0.18 |
vacuum calibration tank |
length of calibration case(mm) |
6000 |
6000*2 |
vacuum degree(mpa) |
-0.08 |
-0.08 |
absorbing gas speed(m3/h) |
60 |
60*2 |
water pump power(kw) |
2*2.2 |
2*2.2 |
longitudinal moving motor power(kw) |
1.1 |
1.1 |
Spray cooling tank |
length of spraying tank(mm) |
4000-6000 |
6000-8000 |
water pump power(kw) |
2.2 |
2.2 |
haul off |
driving power(kw) |
3 |
5.5 |
max pull(N) |
7000 |
10000 |
effctive haul off length(mm) |
1200 |
1700 |
blade type cutter |
blade diameter(mm) |
350 |
350 |
driving power(kw) |
2.2 |
2.2 |
working air pressure(mpa) |
0.7-0.7 |
0.7-0.7 |
stacker |
length(mm) |
6000 |
6000 |
|
