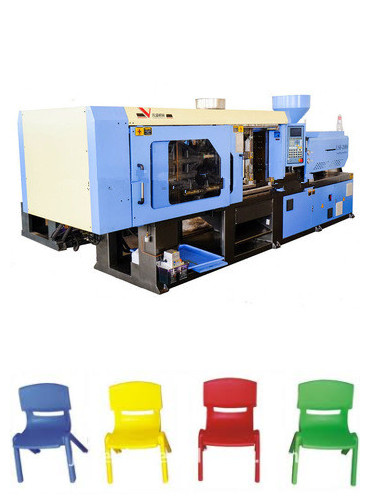

Plastic Products Injection Machine
| Price: |
US $ 12580/Piece |
| Trade Terms: |
FOB,CIF,others |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
plastic products injection machine
Machines we build clamping force from 600 to 32000KN, injection weight from 68g to 40570g. suitable for all kinds of plastic products production , features like durability & sturdy construction.
Pls let us know your production details (sizes & weights, mold sizes if available) to recommend related machine to you if you need help.
Features
* Higher Productivity
* Low Power Consumption
* Precision & Consistency
* Robust Construction
* Simple Versatile Accurate ProfitableSome of the important features:
Clamping system: Faster response, stable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation,molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
Other Information
Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil,good for pump and valves
Long working life: Imported spare parts and updated version
- Aftersales service: Professional & timely
INJECTION UNIT |
| Unit | LSF-398 |
| A | B | C |
| Screw Diameter | Mm | 70 | 75 | 80 |
| Screw L/D Ratio | L/D | 21.4 | 20 | 18.8 |
| Short Size | Cm3 | 1385 | 1590 | 1809 |
| Injection weight | G | 1260 | 1447 | 1646 |
| Injection Rate | g/s | 310 | 356 | 405 |
| Plasticizing capacity | g/s | 60 | 65 | 70 |
| Injection Pressure | Mpa | 195 | 158 | 139 |
| Screw Speed | Rpm | 0-165 |
CLAMPING UNIT | Clamp Force | KN | 3980 |
| Space Between Tie Bars | mm | 720*720 |
| Toggle Stroke | mm | 700 |
| Max. Mold Height | mm | 760 |
| Min. Mold Height | mm | 280 |
| Ejector Stroke | mm | 200 |
| Ejector Tonnage | KN | 110 |
| Ejector Number | P | 13 |
OTHERS | Max. pump Pressure | Mpa | 16 |
| Pump motor powder | Kw | 37 |
| Heater Power | Kw | 24.8 |
| Machine Dimension(L*W*H) | M | 7.3*2.0*2.2 |
| Oil Tank Capacity | L | 850 |
| Machine Weight | T | 16 |
| Prod Model: |
LSF-398 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Preform Injection |
| Structure: |
Horizontal |
| Plastic Type: |
Thermoplastic |
| Automation: |
Automatic |
| Computerized: |
Computerized |
