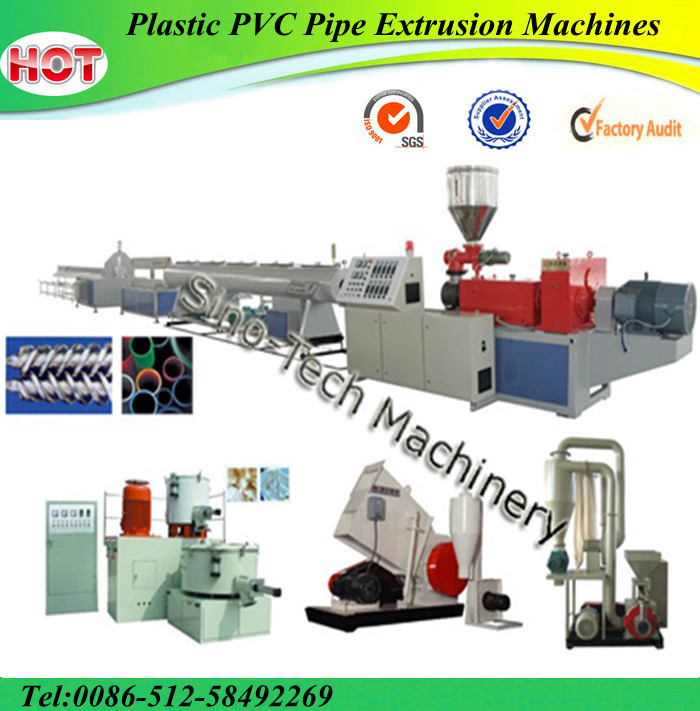

Plastic PVC Pipe Extrusion Machines
| Price: |
US $ 25000-115000/Set |
| Trade Terms: |
others |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Machine: PVC pipe production line
Configuration:
Conical double-screw extruder
Mould
Vacuum calibration tank
Haul off
Cutter
Stacker
Details:
GF series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc.
Model number |
FST-63 |
FST-110 |
FST-160 |
FST-250 |
FST-315 |
FST-450 |
FST-630 |
Pipe diameter |
16-63mm |
20-110mm |
50-160mm |
75-250mm |
110-315mm |
200-450mm |
315-630mm |
Max output |
120kg/h |
120kg/h |
180kg/h |
300kg/h |
450kg/h |
650kg/h |
800kg/h |
Production rate |
1.5-15m/min |
0.8-8m/min |
0.5-5m/min |
0.4-4m/min |
0.3-2m/min |
0.1-1m/min |
0.07-0.7m/min |
Extruder model |
SJZ-50/105 |
SJZ-50/105 |
SJZ-55/110 |
SJZ-65/132 |
SJZ-80/156 |
SJZ-92/188 |
SJZ-92/188 |
Installed power |
45kw |
45kw |
55kw |
75kw |
105kw |
160kw |
205kw |
Center height |
1000mm |
1000mm |
1000mm |
1000mm |
1100mm |
1100mm |
1200mm |
Installation area |
22*2.5*2.0m |
24*2.8*2.0m |
24*2.8*2.0m |
30*2.8*2.2m |
35*3.0*2.4 m |
36*3.0*2.4 m |
38*3.2*2.8 m |
|
| Prod Model: |
GF-40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Production Name: |
Plastic PVC Pipe Extrusion Machines |
| Product Type: |
PVC Pipe |
| Automation: |
Automatic |
| Computerized: |
Computerized |
Zhangjiagang Sino-tech Machinery Co., Ltd. is a group company located in the beautiful seaport city of Zhangjiagang, which is near to Shanghai. We devote ourselves to the development, research and production of plastic machine, beverage equipments filling and packing industry and automatic blow molding machine with over 20 years'experience.
Now our equipments have been exported to USA, Canada, Mexico, Colombia, Brazil, Argentina, UK, France, Germany, Belgium, Russia, Saudi Arabia, UAE, Yemen, Iran, Oman, Syria, Jordan, Israel, Egypt, Japan, Philippines, Myanmar, and India etc...
For plastic machine: , Our main products include as follow
Big-mouth PVC pipe excluding production line
PE big-mouth for gas, water supply excluding production line
Plastic sheet or panel production lin
Plastic profile production line
Plastic granulating production line
Plastic recycling machine
PP-R pipe production line
Plastics extruder
High speed mixer, various plastic auxiliary machines
For beverage machine, our Main products include as follow
The capacity of 2000-- 40000 BPH for mineral water and purified water producing line.
The capacity of 2000-- 40000 BPH for hot filling, MID-temp filling, aseptic cold filling lines.
The capacity of 2000 -- 36000 BPH for carbonated beverage producing line.
The capacity of 300 -- 1200BBH 3 gallon, 5 gallon barrel filling line
The capacity of 1000 -- 12000BBH glass bottle beer filling line
The capacity of 2000 -- 25000BH ice pop, ice lolly filling production line
Various kinds of linear and rotary engine oil and edible oil filling line
All kinds of water treatment equipment.
PET perform injection and blowing-stretching machine.
Extrusion blow molding machine
Turn-key projects
Flat and tube UHT device, and CIP system.
SINO-TECH purpose is "keep developing to meet worldwide clients' demands. "
Welcome to visit our company. Thank you!
