Plastic soft bottle blowing mold machine
Sanqing Blow Molding Machines are very famous in China. Many companies around china are currently using Sanqing Machinery.
Volume Range: 1ml to 60 Liter, all kinds of hollow product could be produced.
We are the most variety types of blow molding machines manufacturer, one of the biggest blow molding machine manufacture in China.
Our machines could produce: Jerry Can, HDPE bottle, LDPE bottle, 3 Layer Pesticide Bottle, Liquid soap bottle, liquid detergent bottle, washing machine liquid bottle, medical bottles, beverage bottles, milk/yogurt bottles, seaball, fishing ball etc.

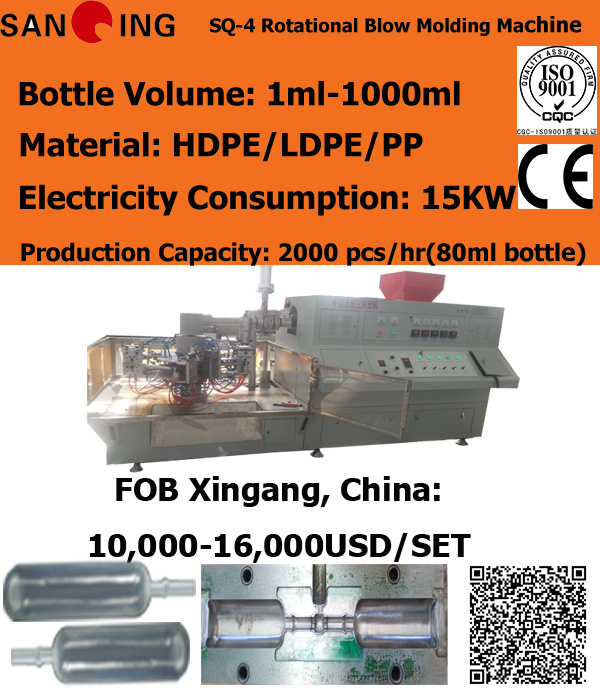

Rotational Blow Molding Machine Application:
This rotational blow molding machine is suitable to produce PE/PP milk bottle, yogurt bottle, fruit milk bottle.
Efficient:
Every hour, the bottles could be produced around 1000-2000 pieces per hour.
Deflashing:
We have a cutter device that could help to deflash the bubble of the bottles.
Video is available upon requirement.
Model
Parameters |
4 work station |
6 work station |
8 work station |
Max. Volume of Bottle(ml) |
1000 |
1500 |
1500 |
Max. Dia. Of Bottle(cm) |
7 |
10 |
10 |
Productive capacity(pcs/hour) |
500-7000 |
1000-8000 |
1500-8000 |
Mould Size (L, W, H) (mm) |
118x120x350 |
118x120x350 |
118x120x350 |
Motor Power(KW) |
0.75 |
1.1 |
1.5 |
Air Consumption(m3/Min) |
0.4 |
Product Weight(KG/Hour) |
400 |
800 |
1000 |
Dimension(L, W, H)(mm) |
1400x1000x1400 |
1600x1200x1500 |
1900x1700x1400 |
Applicable Raw Material |
PE, PP, PVC |
Speed regulating method |
Frequency control of motor speed |
Cangzhou Sanqing company is a manufacturing group, it includes two kinds of main products: Stainless steel press fitting, blow molding machines. It also export some other valuable products such as tire valves.
We have two main plants, one is for stainless press fitting, another plant is for blow molding machine.
Stainless steel press fitting includes stainless pipes, stainless press fittings, size range since DN15-DN100. It includes raw material: SUS304 and SUS316L. The stainless steel press fitting already been used for many years in the market and it is under process to develop more international markets. Sanqing is one of the leading manufactures for stainless steel press fittings.
Blow Molding machine is another main products, it including pneumatic type blow molding machine and hydraulic blow molding machine. The machines are able to produce hollow products since 1 ml to 40 Liters. Nowadays, our machines are already full of China and Sanqing brand is a famous brand for this plastic field.
Rotational blow molding machine, or we call it rotational bottle making machine is the star machine and main machine, since it has been developed, it has been improved gradually, now it is a very successful machine and shipped to many foreign countries such as: Russia, Mongolia, Pakistan, India, Malaysia, Kenya, South Africa, Brazil, Mexico, Paraguay, Dominican Republic etc.
So Sanqing brand is keep on growing and hope we could cooperate together to grow together.
