Plastic Tool Box Making Machine

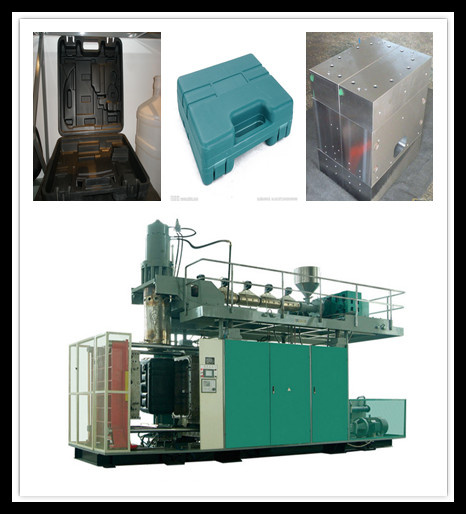

Plastic Tool Box Making Machine for Plastic Tool-box, Cans(FSC80/FSC90)/2 Layer Drum/Jerrycan Blow Molding Machine/Jerrycan Extrusion Machine(FSC80):
1). blow molding machine experience of the engineer for more than 12 years
2). Machine produce the max for 30L jerrycan
3). The capacity is about 30PCS/h.
4). The famous imported components for machine
5). Taiwan Yuken hydraulic valve for stable working
6). The deflashing system can be equiped according to customer's request.

2. Main characteristics of Plastic Plastic Tool Box Making Machine Extrusion Machine(FSC80):
1). Accumulator head, single layer, the capacity is up to 2 layer 120L jerrycan, drum.
2). It process the material as HDPE, PP, ABS and etc.
3). Power supply: 380VAC, 50Hz (depending on client's county ).
4). The machine is mainly composed of extrusion system, die head system, clamping system, hydraulic system and electrical systems.

General information for this Plastic Tool Box Making Machine:
Extrusion system: Screw: Specially designed based on material's trait, High quality nitriding steel 38CrMoAlA, with nitriding surface HV≥ 800, brittleness≤ 2. Barrel: High quality nitriding steel 38CrMoAlA, with nitriding surface HV≥ 900, brittleness≤ 2.
Die head system: Accumulator die head, single cylinder, central injection, vertical fist in first out design, accumulator channel slick; Slip parts like injection piston and cylinder made with different material and technique, work balanced and reliable.
Clamping system: Fixed clamping system, double diagonal tie bar single cylinder central clamping, wider space for the mould, install and dismantle the mould easily, linear roll guide rail.
Hydraulic system: Adopted proportional pressure controlling, with hydraulic valve and pump of Taiwan Yuken, balanced and accurate action, prolonged useful life, sensitive response.
Electrical system: Adopt PLC to control the action program of the whole machine; Adopt touch screen for communication, parameter setting, modification and picture display; Every parameter could be set and modified directly with the complete obstacle self-diagnosing function, menu operated directly and conveniently.

3. Advantages of this Plastic Tool Box Making Machine:
1). Adopt energy-saving system which can increase the 20% efficiency.
2). The capacity is about 30PCS/h which is15% higher than some others.
3). Power consumption is about 15% lower.
4). All process are well computerized which makes the operation more conenient.
5). Imported hydraulic components which gurantee the stable working for long time.

4. Products produced by this Plastic Tool Box Making Machine:

extruder
1	Screw diameter	80mm
2	L/D ratio	24:1
3	Screw speed	50-90r.p.m.
4	Drive motor	AC45Kw  3 Phase asynchronism motor
5	Inveting drive	America Amerson
6	Heating zone with cooling fan	5 zones
7	Output/Throughout	170Kg/hr(HDPE  particle)
8	Heating capacity	5X5.02 (=25.1) kw
9	Vertical adjustment of head	450mm
10	Forward/Backward adjustment of head	600mm
11	Groove feed barrel cylinder	No
12	Gear box	Hard gear decelerator
13	Ladder and safety rails	fixed
	DIE HEAD
1	Accumulator capacity	5L(3.5kgHDPE)
2	Design	First in and first out
3	Heating zone	5 zones
4	Heating capacity	26kw
5	Max die diameter	450mm
6	Die head axis with pre-blow	100mm
7	Accumulator push-out stroke measurement	Transducer  Italy Gefran
8	Injection pressure	12Mpa
9	Extruder stop	Have
CLAMPING UNIT
1	Tie bar	Two tie bar
2	Platen size	1260(W)X1020(H)
3	thickness of mold	465-600mm
4	Clamping force	410KN
5	Close/Open stroke	450-1250mm
6	size of mold	780×1260mm
7	Clamping stroke measurement	Proximal sensor TAIWAN RIKO
8	Hydraulic valve	YUKEN
		YUKEN
9	Number of hydraulic cylinder	1
10	High pressure	14mpa
11	Support parts for platen movement	Guide
