Plastic (wide mouth) Container Preform Mould

Plastic (wide mouth) Container Preform Mould
Price: US $ 1200/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

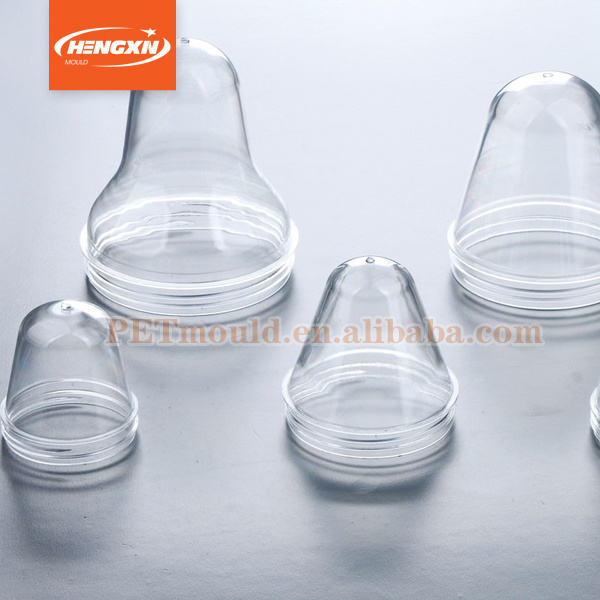

Jar preform mold

Wide mouth preform mold

food container preform mold



Detailed Product Attribute
s136 steel : hot runner
pin value : ≥3000,000 shots

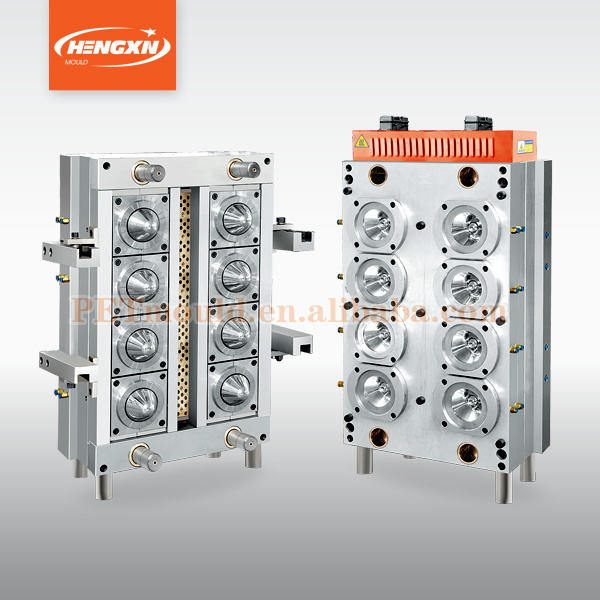

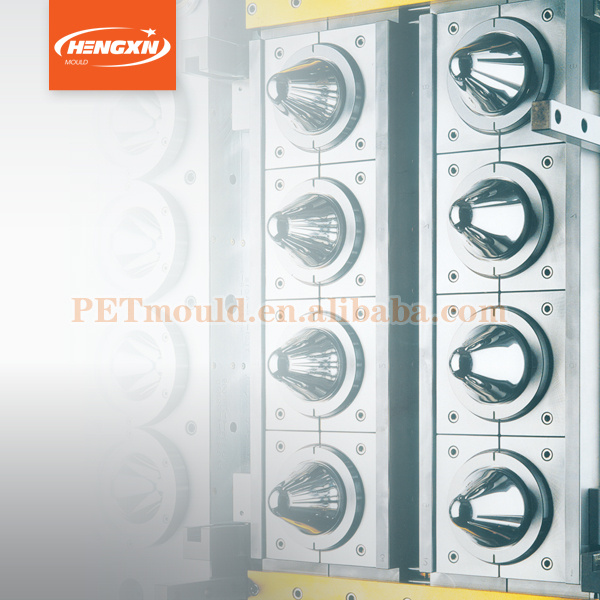

8cavity jar preform mold:



THE ADVANTANGE OF PET VAVLE TYPE PREFORM MOLD
1.cavaty,core and screw neck of steel adpot imported S136 in Sweden,and be heating treatment of hardness up to HRC 48-50; All mould base do heat treatment of heardness up to HRC 30-35.
2.Advanced mold design technology:
Each cavity self-locks independently and using high precision JAPAN SYATEM.
To ensure low decent ration & precision of the product.
Each mold spare part be inserted with durable parts,which are interchangeable.
In order to improve and achieve high production efficiendy,we always design the best cooling system and can match a cooling machine for each mold.
3.Advanced & accurated vavle hot runner & tempertature controller,ensure reliability of production and high transperendy & brightness of product.
4.Mold sliding use copper,bottle be achieved FOOD SECURITY standard,and mould life guarantee more than 3 million shots.


CUSTOMER SUPPORT
Our PET group provides an experienced team ready to support you in inplementing your preform mold and hot runner concepts.Our service starts with individual assistance in the pre-sales stage and does not end with supplying the mold but instead continues through to the end of he mold lifetime.

COOLING SYSTEM
spiral water cooling way on cavity enhances mold cooling.
cooling system on neck and move neck plates brings an enhance cooling.
precise distributary plate distributes cooling water into cavity evenly,quicken preform cooling.

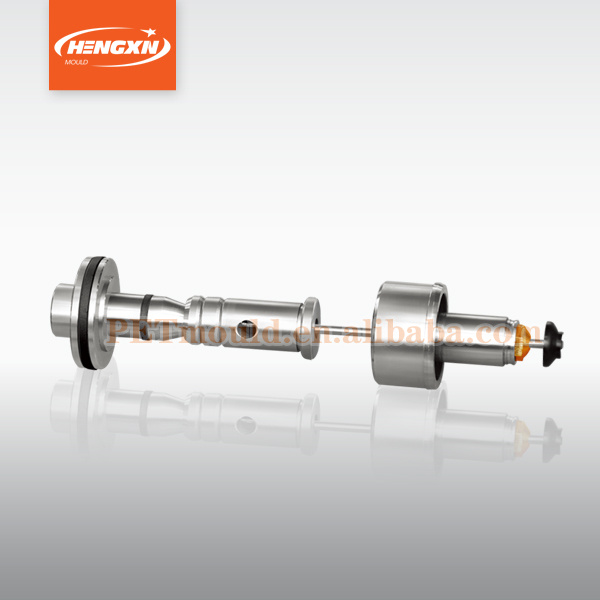

HOT RUNNER
hot runner balance design ensures evenly force,uniform heating and identical preform.
less energy cost and pressure lost.
independent cavity control system ensures nozzle temperature fluctuates within 1 .
Adopt imported heating devices,Germany Hotset or Italy Rotfil.




PREFORM MOLD STRUCTURE:
LONG-CUTTING GENERAL PREFORM MOLDS
LONG-CUTTING DOUBLE-LOCK PREFORM MOLDS
SHORT-CUTTING GENERAL PREFORM MOLDS
SHORT-CUTTING DOUBLE-LOCK PREFORM MOLDS
NO-CUTTING PIN-VAVLE PREFORM MOLDS

MOLD DATE

No,of cavity12cavity16cavity24cavity32cavity48cavity72cavity
18g(cm)62*38*4379*38*4388*46*4586*68*48105*68*55110*78*58
weight(kg)6308101150175024503100
28g(cm62*38*4579*38*4588*46*4886*68*52105*68*58110*78*62
weight(kg)6608501250190026003350
40g(cm)62*38*4879*38*4888*46*5086*68*55105*68*62110*78*65
weight(kg)6908901350200027503500
.The thickness and weight of molds are in accordance with the tubes,these measurements will change in case the products are improved.

































































































No,of cavity 12cavity 16cavity 24cavity 32cavity 48cavity 72cavity
18g(cm) 62*38*43 79*38*43 88*46*45 86*68*48 105*68*55 110*78*58
weight(kg) 630 810 1150 1750 2450 3100
28g(cm 62*38*45 79*38*45 88*46*48 86*68*52 105*68*58 110*78*62
weight(kg) 660 850 1250 1900 2600 3350
40g(cm) 62*38*48 79*38*48 88*46*50 86*68*55 105*68*62 110*78*65
weight(kg) 690 890 1350 2000 2750 3500

Prod Model: HX--1056
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Runner: Rotfil From Italy or Hotset From Germany
Steel: S136 From Sweden
Material: Steel
Application: Commodity
Zhejiang Taizhou Huangyan Hengxin Mould & Plastic Co., Ltd (Hengxin) was established in 1992.

Hengxin occupies more than 10, 000 square meters workshop and has more than 100 employees.

Hengxin is specialized in PET perform mould, cap mould, bottle blowing mould, household mould.

With many years rich experience, Hengxin become one of Chinese leading and famous suppliers of PET preform mould. Especially we design and manufacture self-lock PET perform mould and shut-off nozzle PET perform mould by ourselves.

Hengxin moulds have been well received abroad in Italy, Russia, Africa, Southeast Asia and the Middle East as well as at home.

We also set up several agencies for supplying business consultation, technology support and after-sale service at home and abroad.

"To survive by quality, to develop by creditability, to satisfy the customers" are our guidelines.
