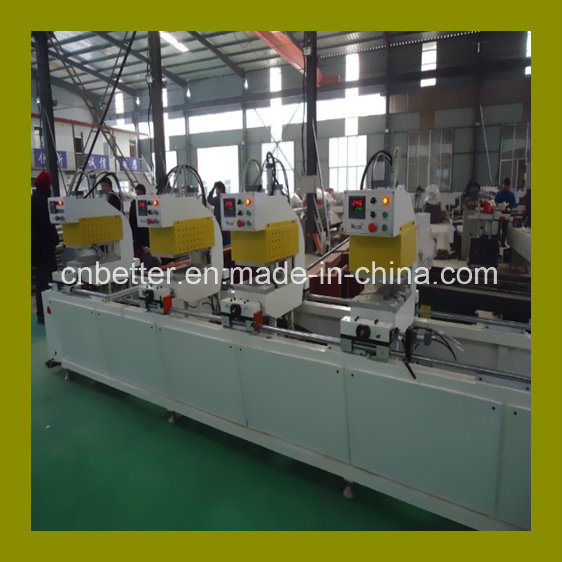

Four head welding machine for PVC/UPVC/Plastic/Vinyl window door

1. Product Description

1). It is a special machine for welding PVC/UPVC/Plastic/Vinyl doors and windows.

2). It can weld and the combination, programming control and pneumatic driving system are used to achieve the high reliability, easy operation and large processing range, The 4 heads can work individually, simultaneously or combinative. This machine suitable for the large production scale. It can make about 80-100 windows in 8 hours per day.

3). If you want to weld the two mullions window frame, you'd better buy this four head welding machine, it can weld the two mullions window frame at one time.

4). This machine, it is our common welding machine, if your profile is Europe profile, it is no problem, if your profile is America type profile, it needs to make backup moulds according to the profile sample, so if it is America type profile, it needs customer post the profile sample to us, then we make the moulds according to the sample.

5). If you profile thickness(height) is higher than 110mm, and also want to use this common welding machine, we can make the welding head higher with some device, but it needs to customer pay some extra charge about this.

6). Here if you want to make variable angle welding, here we can add to install the variable angle welding device to the machine, if you need, we can add this device, it needs to pay little extra cost if you want to weld variable angle.

7). All machines parts, we use famous brand:
------PLC: Omron/ Mitsubishi, Japan
------Sensor: Omron, Japan
------Button and contactor: Schneider, France
------AIR PIPE: RISHUN, Japan
-----Cylinder: BAIDI, China Taiwan
-----Solenoid valve: STNC, China Taiwan
-----Linear bearing system: SBC, South Korea

2. Related All PVC/UPVC/Plastic/Vinyl window machine models:
PVC window Cutting saw:
SJ02-3500 Double mitre saw for PVC profile
LSJ02-3500 Double mitre saw for PVC profile
SVJ-65 V shape cutting saw for PVC profile
SYJ03-1800 glazing bead cutting saw for PVC profile
SJV-45 Mullion cutting saw
LJZB-500X4200 Double-head precision cutting saw
LJZY-500X4200 Double-head precision cutting saw with digital show
LJZ-CNC-500X4200 CNC Double-head precision cutting saw
LJG-500 Heavy duty double head precision cutting saw

Welding machine:
SH-100 Single head variable angle welding machine
HJ02-3500.2/2A two-head welding machine
HJ02-3500.3/3A three-head welding machine
HJ02-4500.4/4A four-head welding machine
SHP4-3000A Four corner welding machine
SHP4-CNC-3000A Four corner CNC welding machine
WFHJ02-4500.1A Single head seamless welding machine
WFHJ02-4500.2A Double head seamless welding machine
WFHJ02-4500.3A Three head seamless welding machine
WFHJ02-4500.4A Four head seamless welding machine
HSWF-01 South Korea type single head seamless welding machine
HSWF-02 South Korea type double head seamless welding machine

Milling machine:
SZJ01 Lock-hole milling machine
LSX-100 single-axis copy-routing milling machine
LSX01-100 Double-axis copy-routing milling machine
SCX01-2 double-axis water groove milling machine
SCX01-3 three-axis water groove milling machine
SCX01-4 four-axis water groove milling machine
LXD-200 Ending milling machine
LXD02-200 End milling machine
LXDA End milling machine
LXD-250 Heavy duty end milling machine
SFX01-160 Cap-seal milling machine for PVC profile

Cleaning machine:
SQJ01-120 Corner cleaning machine
JQK04-120 CNC Corner cleaning machine
SQJ05-120 V corner cleaning machine
SQJ06-120 Surface cleaning machine

Bending machine:
SYH01-1800 PVC arc bending machine

Screw machine:
Single head Full automatic steel linear screw installing and fastening machine JGJ01
Double head Full automatic steel linear screw installing and fastening machine JGJ02

Model number	HJ02-4500.4/4A
Power supply	220V 50Hz
Input power	4.5 kw
Air Consumption	200L/min
Operation air pressure	0.4 ~ 0.6 Mpa
Welding height	20~110mm
Welding length	400~4300mm
Max. width of profile welded	≤120mm
Max. cut dimension of profile welded	330mm
Contour dimension(L×W×H)	5500×1000×1700mm
Machine weight(about)	1600kg
