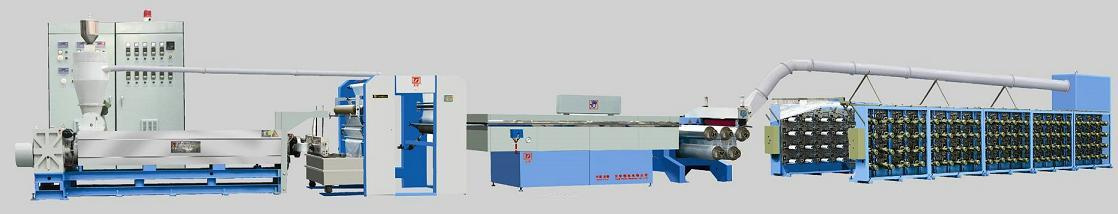

Plastic Wire Drawing Machine
Price: |
US $ 80000-150000/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Piece |
Pay Type: |
T/T |
Quick Details
- Condition: New
- Application: Wire
- Plastic Processed: PP
- Screw Design: Single-screw
- Automatic Grade: Auto
- Place of Origin: Anhui, China (Mainland)
- Brand Name: Tiandi
- Model Number: 300
- Voltage: 300KW
- Power(W): 360
- Dimension(L*W*H): 44 * 5 * 4 m
- Weight: 11 Ton
- Certification: ISO9001
- After-sales Service Provided: Engineers available to service machinery overseas
- Colr: Blue
- Certification: ISO9001
- Oringn: Anhui, China
- Price: Please inquire
- Delivery time: Please inquire
- Speed: See specification sheet
- Size: See specification sheet
- Output: See specification sheet
- Power: See specification sheet
- Material: See specification sheet
Packaging & Delivery
Packaging Details: | Wooden case loaded in Container |
---|
Delivery Detail: | 2 month |
---|
Specifications
Plastic Wire Drawing Machine for producing flat plastic wire:
1. High speed
2. Stable output
3.High quality flat wireProduct Description
Model SJ105/1350-300 High-Speed Extrusion and Stretching Machine
Model SJ120/1500-300 High-Speed Extrusion and Stretching Machine
Model SJ150/1700-300 High-Speed Extrusion and Stretching Machine
Model SJ150/1200*2-250 High-Speed Extrusion and Stretching Machine
These high speed extrusion and stretching machines are developed by adopting German technology together with requirements for weaving technology of domestic market. They are controlled by micro-computer and frequency conversion governor. They are widely used for producing bulk bags, small package bags, transparent bags and other PP/PE woven bags.
Above Machine can be customized for 450m/min super speed extrusion and stretching machine
1. Designed by adopting advanced foreign technology, Model SSJ-280 winder has many features such as advanced structure, smooth winding, high linear velocity, homogeneous uniform tension etc.
Max linear velocity: ≥280 m/min
Max diameter of winded yarn: 160 mm
Suitable bobbin tube:
38mm (inner dia.) * 230 mm
38mm (inner dia.) * 270 mm
2. The seven-roller of this extrusion machine are designed by adopting advanced foreign technology with a blend functions of stretching, forming, retracting and water cooling. The contractibility rate can be adjusted freely from 5% to 10% which makes the machines work more economically.
3. Magnetic tension winder can roll the flat film stably and achieve high rate of certified products.
4. These extrusion machines are controlled by micro-computer and equips DC and frequency adjustment. All control units are foreign excellent product which enable the machine reach international advanced lever and make the machine working stably and controlling flexibly and credibly.
5. The electrical control units of this extrusion machine use step-less speed adjustment and the temperature controller adopts intelligent control which is sensitive and credible. The whole set of machine can not only be adjusted individually but also be operated together.Main Technical Specification of High-Speed Flat film Extrusion and Stretching Machine
Model | SJ90/1100 - 300 | SJ105/1350-300 SJ105/1200-300 | SJ150/1700 -300 above SJ120/1500 -300 above | SJ150/1200*2 - 250 |
Net Output of Flat Film (Eight Hours) | 1100 - 1700 kg | 1400 - 2300 kg | 2200 - 3500 kg | 2200 - 3000 kg |
Max. Extrusion Output | PP/PE 300 kg/h | PP/PE 400 kg/h | PP/PE 500 - 600 kg/h | PP/PE 500 - 600 kg/h |
L/D ratio of Screw | 33 : 1 | 33 : 1 | 30 : 1 | 30 : 1 |
Rotation Speed of Screw | 20 - 120 r/min | 20 - 120 r/min | 20 - 150 r/min | 20 - 150 r/min |
Width of Die Lip | 1100 mm | 1350 mm 1200 mm | 1700 mm 1500 mm | 1200 * 2 mm |
Form of Filter | Selectable | Selectable | Selectable | Selectable |
Stretching Form | Oil-heating or hot air | Oil-heating or hot air | Oil-heating or hot air | Oil-heating or hot air |
Model SSJ-500 Winder | 184 spindles | 208 spindles | 256 spindles | 416 spindles (Model SSJ-280) |
Density Scope of Flat Film | 60 - 220 tex | 60 - 220 tex | 60 - 220 tex | 60 - 220 tex |
Total Power | 260 Kw | 300 - 320 Kw | 450 Kw 380 Kw | 360 Kw |
Power of Main Motor | 55 Kw | 75 Kw | 120 Kw 90 Kw | 110 Kw |
Measurement (L * W * H) | 36 * 5 * 4 m | 40 * 5 * 4 m | 44 * 5 * 4 m | 50 * 5 * 4 m |
Remark: Standard of flat film (width of film: 2.5mm, thickness of film: 0.05mm) |
Prod Model: |
Model SJ105/1350-300 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Raw Material: |
PP |
Type: |
Flat Wire Drawing Machine |
Mode: |
Vertical |
Product Types: |
Rope |
Automation: |
Automatic |
Computerized: |
Computerized |
Established in 1991, Anhui Tiandi Plastic Machinery Co., Ltd. is the professional manufacturer and exporter of the whole PP/HDPE Woven Sack FIBC/Plastic shopping bag Production line.
Our main products are the High-Speed PP/HDPE Flat Yarn Extrusion Line, High-Speed Circular Loom Woven Bag Making Machine, Inner Coating Machine and the related Auxiliary Machines, such as the Automatic Cutting and Sewing Machines, printing machine and Baling Machine, etc.
With high quality and first-class management, our company has been awarded Hi-tech Enterprises, AAA Fund Credit Enterprise, Contract-abiding trustworthy enterprise. In 2001, our products have passed the ISO9001 quality system authorization., and our self-researched small six-shuttle Circular loom has got national practical new patent(No ZL03279366.9)
With high quality and reasonalbe price, our machinery has been exported to USA, Russia, Thailand, Middle-East, Egypt and so on, spoken highly by our clients for our high quality and perfect after-sale service.
While adhering to the principle of quality first, and reputation formost, we are consistently trying our best to server our customers. Sincerely welcome your visit to our company and cooperation.
