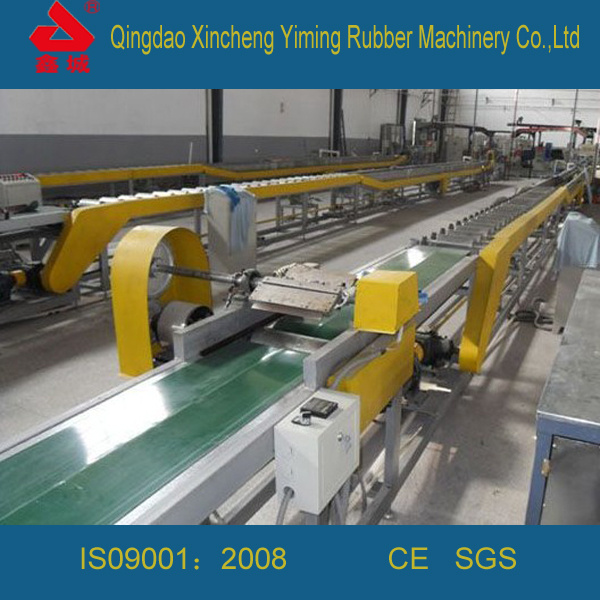

Motorcycle Inner Tube Cooling Line
The main function
Catching table;
Automatic spray talc;
Water cooling line;
Air blowing;
Inner tube printing;
Beat the bore;
Paste nozzle;
Cutting with length;
Main technical parameters:
Length of water cooling tank: According to customer's requirement. (reference: 10-14 meters)
Line speed: 10-40m/min Frequency conversion (Adjustable)
Beat the bore diameter: 7-8mm
Air pressure: 0.6-0.7Mpa
Driving motor: 3.7KW
Air blowing motor: 2.2KW× 4 set=8.8KW
Powder spraying motor: 0.37KW
Heating coil and plate: 220V 600W
Width of the internal water tank: 400mm
Width of plastic modular belt 340mm
Weight: About 2.8 ton
Power supply: 380V 50HZ 3PH
|
Model |
NSX-ML |
NSX-L |
|
Tube specifications |
Motorcycle & bicycle |
Auto. |
|
Width of dual layer tube (mm) |
<200 |
<420 |
|
Linear speed (m/min) |
10-34 |
8-15 |
|
Punch diameter (mm) |
6-8 |
8-10 |
|
Air pressure (Mpa) |
0.6 |
0.7 |
|
Total power (kw) |
14 |
22 |
|
Building speed(r/min) |
35/120 |
35/120 |
|
Motor power(kw) |
36 |
36 |
|
Overall size(lxwxh)(mm) |
23500x1000x850 |
35000x1300x850 |
|
Weight(kg) |
5000 |
7000 |
Qingdao Xincheng Yiming Rubber Machinery Co., Ltd is located in the west coast of Qingdao-Jiaonan City, west of the state road 204, next to the Qingdao Economic and Technological Development Zone, nearby Qingdao Port and Qingdao Liuting International Airport, with excellent geographical location and developmental traffic.
We are a professional manufacturer of various rubber machineries and its auxiliary equipments. We can design and manufacture all kinds of non-standard rubber machineries according to the requirement of the customers. We have cooperations with several agencies major in designing and producing rubber & plastic products, on the R & D of rubber-plastic field, technology assessment, technical training, technological achievements. We contract a full set of equipments on making all kinds of large engineering rubber-plastic, tyres and other rubber-plastic products. We provide commissioning process and installation, until customers produce satisfied products and achieve maximum economic benefits.
Our company passed ISO9001: 2008 International Quality Management System Certification. The company gathered a number of outstanding technical staffs, management persons, have a young marketing team which has international perspective and local experiences, offering the professional international marketing services. We have high level, high efficiency, high-speed marketing network, quickly seizing the international market.
Our company has excellent machine-processing equipments, advanced technology, unique test method, full of quality products and good sale-service system, we are well received by consumers, leaves a good corporate image in the peer.
"Excellent, customers first, scientific management, continuous improvement "is our quality policy, Qingdao Xincheng Yiming Rubber & Machinery Co., Ltd will serve you the best.
