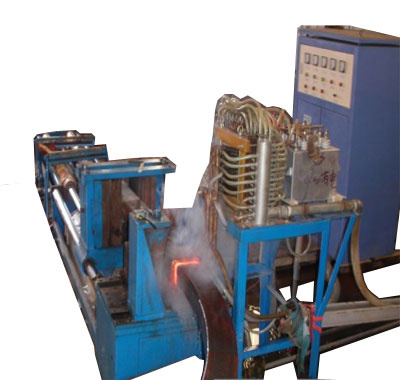

PLC steel pipe fittings bend machine
PLC steel pipe fittings bend machine won a high reputation all over the world. Shean is your best choice in the world. Welcome to our factory visit.
1. Bending material: Carbon seamless steel, 20G, A106B, A106C
Welded pipe: 235B, 345B, X42, X52, X60, X70
Alloy steel: 335P12, P22, P91, 12Cr1MoVG, WB36
With PLC control system, bender thickness reducing 5-10%
Oval: 5%
Waver: Hot 2%
Plain L=500 3%
Bending angel tolerance +/-0.5 degree
3. Integrated hydraulic system
4. Infrared radiation thermometer, temperature control automatic tracking and obvious show.
5. PLC Control system working element theory:
5.1 Keep machine strength, especially clamp head parts, use strong complete casting way to keep bending intensity facing big force when pushing
5.2 Install magnetism ruler and sensor organ to transmit machine force, speed, temperature to PLC Screen.
5.3 PLC Screen has English version and Chinese version.
5.4 End user need to put element informations to PLC system, like: Bender size, thickness, radius, pushing angle, raw mother pipe material etc
This PLC steel pipe fittings bend machine is make by most advanced technical, and have been exported to some development countries.
Serial number |
Max diameter |
Max thickness |
Stroke of cylinder |
Quantity of cylinder |
Max thrust |
(mm) |
(mm) |
(mm) |
(piece) |
(t) |
|
|
|
|
|
1 |
1420 |
20 |
6500 |
4 |
670 |
2 |
1220 |
20 |
6500 |
4 |
600 |
3 |
1020 |
20 |
6500 |
4 |
500 |
4 |
820 |
20 |
6500 |
4 |
400 |
5 |
720 |
20 |
6500 |
4 |
320 |
6 |
630 |
20 |
6500 |
2 |
300 |
7 |
530 |
14 |
6500 |
2 |
160 |
8 |
426 |
14 |
6500 |
2 |
130 |
9 |
325 |
14 |
6500 |
2 |
84 |
10 |
219 |
12 |
6500 |
2 |
65 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
