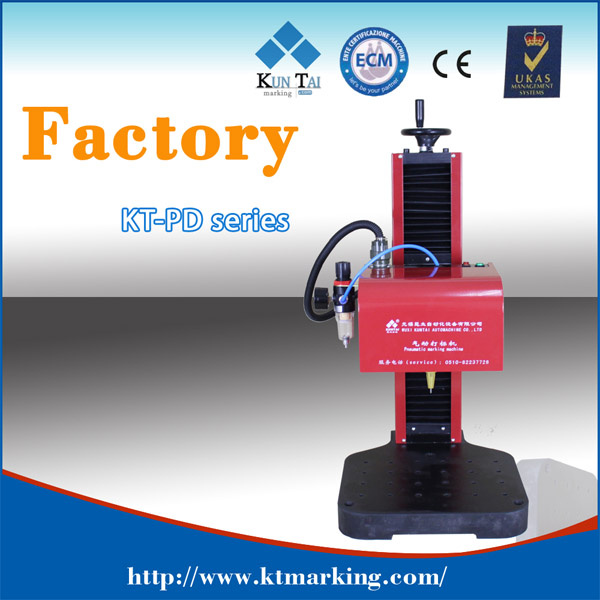

pneumatic Dot pin marking engraving machine
PD01,marking area 120x80mm
Pneumatic marker, also known as Dot Pin marking is also known as micro percussion marking machines. These machines are ideal for replacing a hand punching operation & has a lot of advantages over many similar conventional processes.
Hot foil stamping is also replaced with Pneumatic Metal marking machine. These machine are capable of marking on soft & hard components.
These machines can mark all metals such as Steel, Stainless Steel, Copper brass, Gold, Silver etc.Ideal for marking on hard plastics.
These machines mark permanent Batch numbers, Serial numbers, Barcode scanned data, Data from PLC, Date Codes, Month Codes, Year Codes, etc.
Application:
Material : Aluminum, Iron , Copper, Stainless Steel, Coated or plated material, Nylon, ABS, Poly carbonate, PVC, Most Metallic materials mark well.
Application Industry : Automobile or bodywork of motorcycle, car frame, automotive chassis, engine, and mechanical part, machine tool, metal pipe, gear, pump body, valve, various hardness plastic products
features:
1.Working table is precision die casting,
2.128 sub-drive
3. Imported straight line guide rail,
4.High-precision stepping motor,
5.Adopt the imported tungsten alloy print pin, stable and long life.
6.Advanced USB interface control technology
7.High performance industrial motherboard, the needle work automatically.
8.Effective anti-jamming, radiation-resistant, adaptable for harsh environment.
9. Rigid column, high accuracy, Low running costs and virtually no consumable costs.
Technical Specification:
| Marking depth | 0.01~2mm(depends on the different materials)
|
| Marking contents | Characters, alphanumeric, date, numbers, serial No, VIN code etc.
|
| Marking area(mm) | 120x80mm(customized accept)
|
| Materials request | Below HRC60 metallic and nonmetallic materials (above HRC60 need special stylus)
|
| Work power | AC100V~240V50Hz/60HZ
|
| Inputting air pressure | 0.3_0.6MPa
|
After sale services
Free design and guide for custome
Free software update
Professional technical support
We can supply the new machine parts or fix the old one.
One year for free warranty, people damage need be negotiating
if interested,please contact me anytime,thank you.
Wuxi Kuntai Automation Co., (KT Marking) is a leader in Marking Technology. Launched in 2003, we continue to expand our powerful network of quality marking machines. We consider it our mission to be a sought-after marking machine manufacturer for even the most discerning industrial customer.
We at KT Marking, go beyond your typical marking machine provider. We cover a variety of marking applications and industries, whether it is Aerospace, Automotive, Electronic, Military & Defense, Metal Processing, Energy, or Medical. Our marking machines add real value for our customers. This gives us a natural appeal to industries seeking superior quality marking.
Our wide range of marking solutions, including laser marking machines, DOT peen marking machines, and customized marking solutions used for industrial metal & plastic parts marking, are fast and durable.
KT Marking solutions are relied on, every day, by thousands of industrial manufacturers throughout the world. ALL KT Marking systems - whether standard or customized - are supported by an entire network of experienced and knowledgeable Marketing, R&D, and Service Professionals.
Our factory is growing and developping rapidly these years:
2003: Creation of the first-generation KT DOT peen marking machine, which made KT Marking a name to contend with, in the Chinese market
2006: Creation of KT R&D department - specialized in researching and developing the DOT Peen Marker and Laser Marker, both of which offer a superior performance
2008: Award received by the Chinese Government - "Honoring Medal of Contracts and Trustworthy Company
2009: Creation of second generation DOT Peen and Laser Marker, and getting the patent certificate
2012: Creation of marking machines with a unique and new design, which received approval and certifications from CE, RoHS etc.
2013: Creation of Service Team, for improving after-sales support and service
