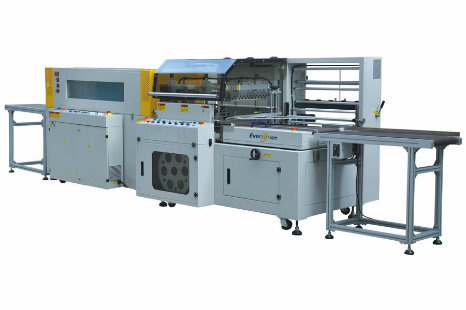

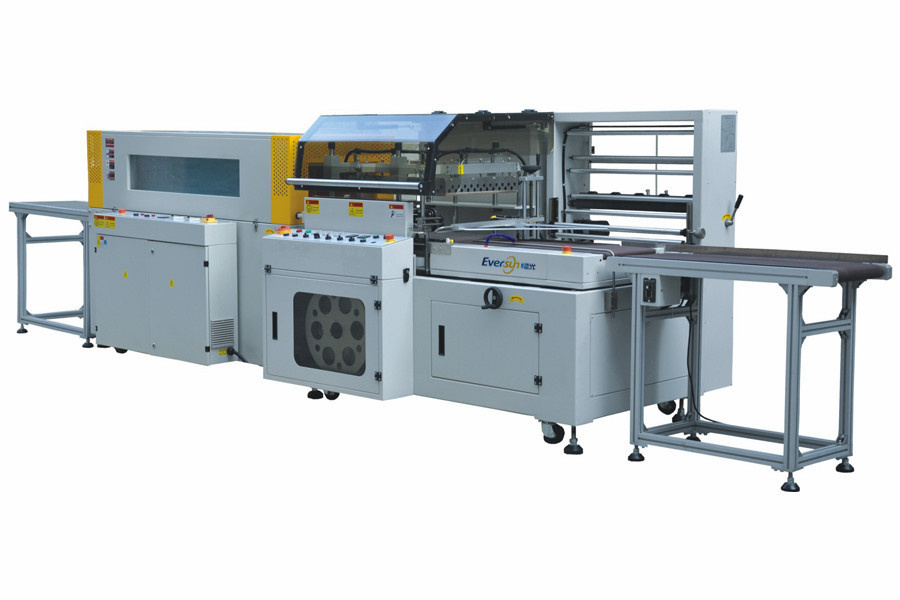

Product name:POF L Bar Sealer Machine
HG-5545 Auto POF L bar Sealer shrink packing machine
Product Features
1 This Machine can be joined with produce line with fully automatic and high efficiency
2 Equipped with film boring device, manual file transmit system and conveyor and feeding system. Adoptable for variety measurement packing, apply for Box, print, hardware product, electronics product film shrink packing
3 Attached with Teflon coated anti stick and anti high temperature aluminum seal blade, the film finishing is perfect
4 movable double sensor attached in horizontal and vertical position , also apply for small item packing
5 Fine adjust of the machine for variety size packing without change the mould and film system
6 different items can be mixed in one package
7 Fully protect with alarm system and machine cover
8 Upper film and lower film control by timing device
9 Waste film Automatic collect device
| Model No | HG-5545C Packing station |
| Max. Packing size (mm) | L450*W350*H150mm |
| Machine measurement(mm) | 1650mm(length)*900mm(width)*1550mm(height) |
| Packing Speed | 10-40 packs per minute(depends on different packs Measurement) |
| Rated power | Single phase 380V 50 Hz,Total 2.5-3 Kw |
| Air pressure | 5.5KG/cm2 |
| Film Type | POF |
HG-5030C Even temperature Shrink tunnel
Product Features
1 Version-able window to spy all shrinking processing and parameter can be correct accordingly
2 Easy operation Control panel to correct the value easily
3 Inventor Control Motor making tunnel on even temperature
4 Air Flow control plate to make the packs all around shrinking
5 World Brand Electronic Parts ensure the machine more stably and long life| Model No | HG-5030C Shrink Tunnel |
| Tunnel Inner Size | L1500*W500*H300 |
| Machine Measurement | L2000*W1050*H1250mm |
| Max. Temperature bearable | 400 Degree |
| Rated Power | Three phase 380V 22 Kw |
| Film Type | POF, PVC , PE |
From One Machine but un-limited packing usages
One Machine with Un-limited Usages
