Specifications
polystyrene disposable food box making machine 1)ps foam products 2)practial and effeciency 3)foam machinery,high output
polystyrene disposable food box making machine

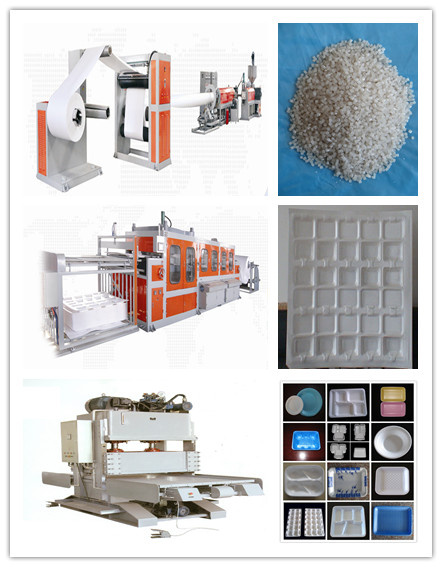

PS Foam Sheet Extrusion Line:
Parameter of the machine |
Item | Unit | HY-105/120 |
capacity | Kg/h | 200-240 |
thickness | mm | 1-4 |
width | mm | 640-1080 |
foaming rate | 10-22 |
cooling method | Wind &water cooling |
cutting method | Single |
weight | 10T |
Butane gas pressure | Mpa | 0.9-1.2 |
installation power | kw | 180 |
Installation size | m | 30x6x3 |

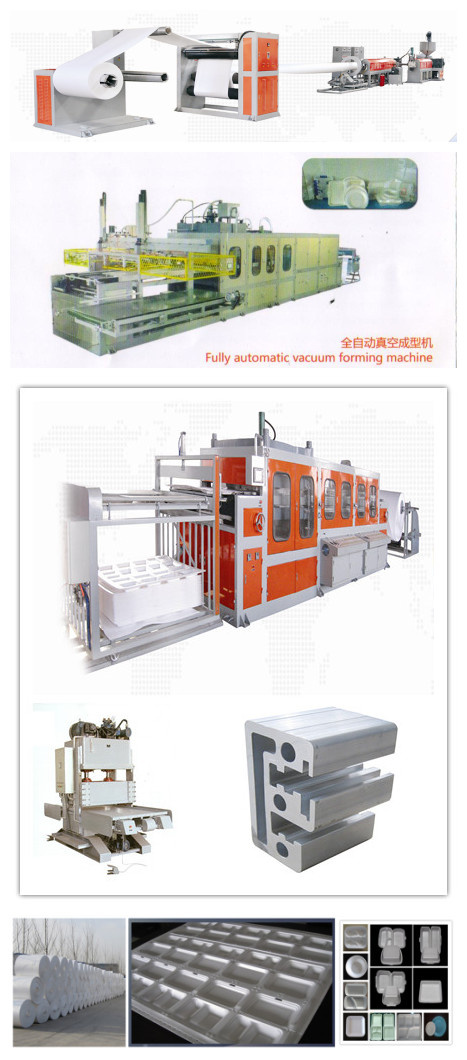

vacuum forming machine:
It can be used for processing all kinds of plastic sheet.
It adopts PLC controller and touch screen to control the working programme.
It is easy to operate and features high degree of automation.
This machine uses aluminum moulds to form different kinds of foam container
Technics flow
1. unwinding ps foam sheet --------2.machine preheating ------ 3.ps foam sheet into the vacuum forming machine --------- 4.heating ------ 5.forming ------ 6.cutting-----7. stacking
Double Worktables Hydraulic Cutting Off Machine:
This machine uses wood mould to cut connected products on ps foam sheet into independent one,
then the finished products could be packed.
Technics flow
Cutting - finished products - packing
Haiyuan Plastic Machinery Co., Ltd is professional in manufacturing PS foam fast food box(one time dishes) production line and plastic package machinery. Meanwhile, we are the supplier of PS fast food boxes and food trays to some chain supermarkets in domestic and aboard. With strong technical strength and abundant experience, basis on advanced technology from domestic and abroad, we have successfully developed and produced various equipments...Haiyuan sincerely welcome the friends all over the world to visit us!
