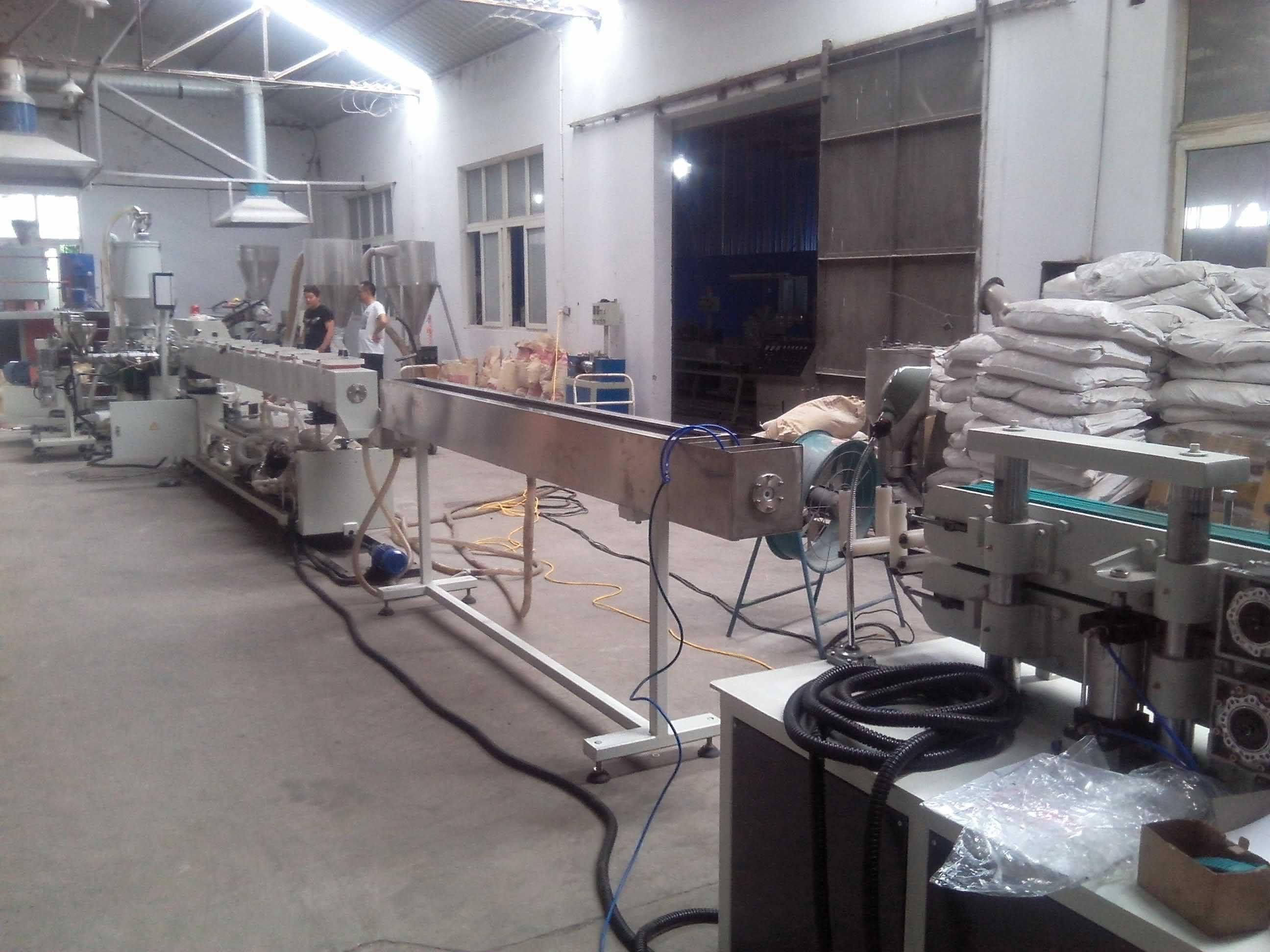

PP plastic pipe extrusion line
This pipe production line mainly includes: Extruder, mould, vacuum calibration tank, spray cooling tank, haul-off, cutter, stacker.
| Model | PE63 | PE160 | PE315 | PE400 | PE500 | PE630 |
| Produced Pipe Specification(mm) | 16-63 | 75-160 | 110350 | 110-400 | 160-500 | 200-630 |
| Calibration length(mm) | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Degree of vacuum(Mpa) | -0.030.08 | -0.030.08 | -0.030.08 | -0.030.08 | -0.030.08 | -0.030.08 |
| Max hauling force(N) | 10000 | 15000 | 20000 | 25000 | 30000 | 50000 |
| Max Hauling speed(m/min) | 10 | 6 | 4 | 3 | 2 | 1.4 |
| Effective hauling length(mm) | 1000 | 1500 | 1500 | 1500 | 1800 | 1600 |
| Compressed air consumption(m3/h) | 0.4 | 0.6 | 1.0 | 1.2 | 1.5 | 2.0 |
| Refilled water volume(m3/h) | 5 | 6 | 7 | 8 | 9 | 12 |
| Line length(m) | 20 | 22 | 30 | 30 | 36 | 42 |
Zhangjiagang Longree Technology Co., Ltd. is one of the famous manufacturers of plastic mixing, extrusion, surface decoration and recycling machine.
Longree Technology is located in Zhangjiagang, Jiangsu Province, close to the international metropolis Shanghai, only 120km away from the Shanghai Pudong International Airport.
In our Longree group, there are plastic conveying-mixing, extrusion, surface decoration, recycling equipment manufacturing plants, crusher and pulverizer plant, professional screw manufacturing plant, screw gearbox manufacturing plant and a PC products plant( in Russia).
We can supply wide range of all kinds of plastic machinery. We have a strong technical team, experienced workers, and a professional after-sales team. All of these ensure our super quality, competitive price and satisfying after-sales service.
We continue to improve equipment performance based on customers' feedback. Now the Customer Satisfaction Rate is about 98%. Growing up together with the customers, with this development concept, Longree`s products not only have a big market in China, but also exported to: Moscow (Russia), Istanbul (Turkey), Dubai (UAE), Helsinki (Finland), Buenos Aires (Argentina), Brazil, (Cairo)Egypt, India and other countries and regions.
Our main products are as follows:
1 Extruder
2 Pipe production line
3 Profile production line
4 Sheet production line
5 Board production line
6 WPC production line
7 Granulation line
8 Recycling line
9 Mixer
10 Auxiliary machine
Welcome you to visit our Longree Group!
