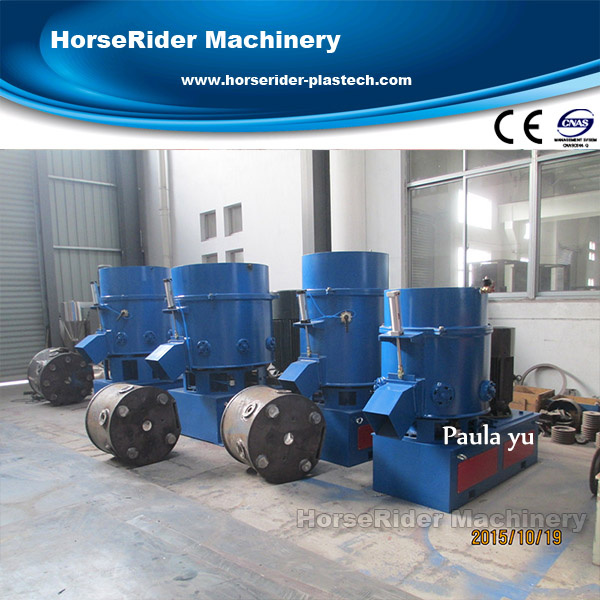

Agglomerator machine
Aggregator:
GHX high speed granulator makes plastic films and materials with less than 2mm wall thickness materials into granules. It is suitable for soft PVC, HDPE, LDPE, soft PE, PS, PP, BOPET, OPP and other thermoplastic wastes and films and froth PS wastes. When the waste plastic is supplied into the chamber of such machine, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the wall of container will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing.
The particles can be used for extrusion or injection mould machine directly. Also can be further pelletized for some advanced requirements.
Model
| GHX-300
| GHX-450
| GHX-800
|
Potbody volume
| 300
| 450
| 800
|
Effictive volume(L)
| 200
| 350
| 550
|
Quantity of rotaltional
| 2 pcs
| 2 pcs
| 4 pcs
|
Quantity of fixed blade
| 7
| 8
| 11
|
Rtating knife speed(rmp)
| 950
| 950
| 760
|
Motor power
| 55
| 75
| 110
|
Dimension(m)
| 2*1.1*1.82.
| 2.35*1.25*1.95
| 2.6*1.4*2.3
|
Output
| 6T/day
| 8T/day
| 12T/day
|
Weight
| 2.2T
| 2.8T
| 3.5T
|
Zhangjiagang Sevenstars Machinery Co., Ltd. is a professional plastic machinery suppliers located in Zhangjiagang city, China. A beautiful and famouse city for all kinds of plastic machine.
We specialize in the development, design, manufacture and marketing of various plastic machines. Such as
PE pipe extrusion line,
UPVC window door profile extrusion line,
WPC profile extrusion line,
UPVC ceiling wall panel extrusion line,
WPC foam board production line,
PP plastic film crushing washing line,
PET bottle crushing washing line,
PE pelletizing granulating line,
Single shaft shredder,
Double shaft shredder,
Plastic crusher and so on...
As one of the reliable supplier in China, We have keeping improved our management & technology level. Up to now, we has earned good reputation in domestic and abroad market. And our products have been exported to many countrys, like Mexico, America, Argentina, Chile, Brazil, Iran, Saudi Arabia. Thailand, Malyasia, Indonisa, Russia, India and so on.
'Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buid up a professional after-sale services team with rich-experienced in machine commissioning and installation. Each year we will attend China plastic exhibtion, and we have got the CE certificate for our machine
We believe our quality and service will bring success to each customer.
Welcome final users and distributors from all the world contact with us and create success
With your support and our effort, we deeply believe that the tomorrow of sevenstar machinery will be much better.
