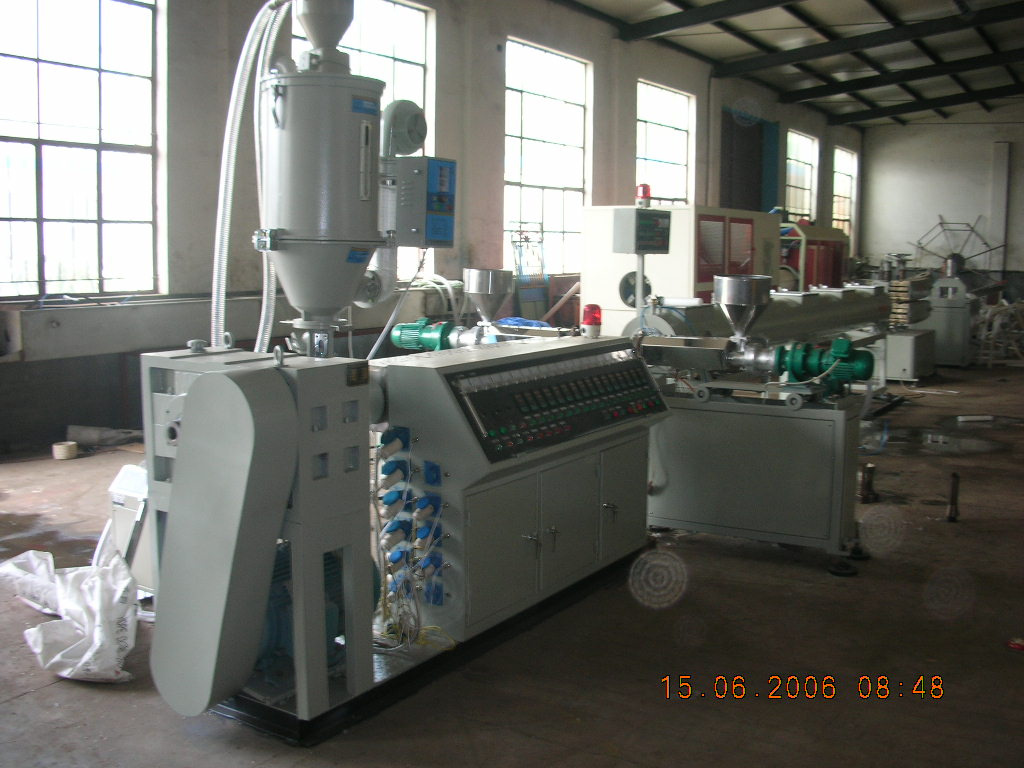

PPR Hot Cold Water Pipe Extruder Machine Extrusion Line
Split spiral extrusion die is designed for PP-R pipe, production range of 20-160mm, the maximum line speed up to: 10m/min
Features of the PPR pipe
Heat-resistance, pressure resistance, humidity keeping and energy saving, durable and economic, etc.
II. The configuration of the line
1. SJ-90/30 extruder 1unit
2. Co-extruder SJ-25/25 for marking line 1 set
3. Mould 1set(75-160mm)
4. SZD-6000 Vacuum calibration unit (the height of the centerline is 1000mm) 1 set
5. SDP-6000 Spray cooling bath (the height of the centerline is 1000mm) 1 set
6. SQY-110 Hauling-off machine (the height of the centerline is 1000mm) 1 set
7. SQG-110 Cutting machine (the height of the centerline is 1000mm) 1 set
8. Stacker SFL-6000 1 unit
|
Model/Sepc. |
DiameterRange(mm) |
Extruder model |
Line speed (m/min) |
Max. Capacity (kg/h) |
Installed power (KW) |
|
LPG65/30 |
20-63 |
LSJ65/30 |
1-10m/min |
120 |
55 |
|
LPG90/30 |
75-160 |
LSJ90/30 |
0.2-4.5m/min |
260 |
120 |
Qingdao Leader Machinery Co., Ltd is an experienced and professional manufacturer of plastic extruder and extrusion lines for years. We can produce various equipments, including plastic pipe extrusion lines, plastic profile extrusion lines, plastic sheet/plate extrusion lines and also some recycling and pelletizing machines etc. According to different requirement s of each customer, our engineers will provide most professional mechanical design and manufacturing, and the complete processing technology to meet their special application requirements.
Since foundation, we have been dedicated to study and research new products, new processing technology to satisfy the updating requirements of the world, and also we continuously digest and learn from the world advanced science technology and leading process. We are always standing firm ahead domestically in the plastic-extruder field as the pioneering representative. With years of experience in design and fabrication, we newly developed LM series extrusion lines, which realized the high efficiency extrusion idea "high precision control, high efficiency production, high quality production".
Through ISO9001-2008 quality certification, CE certification, SGS certification and GOST certification for Commonwealth of Independent States, strict following the standards of modern enterprise, the overall strengthening and the effective management of production, procurement, technology, and after sale service. We win the market by high quality products and services. At present, products have been exported to the US, Korea, Russia, Ukraine, Kazakhstan, Hungary, UAE, Turkey, Iran, Saudi Arabia, South Africa, Libya, Algeria, India, Nepal, Bangladesh, Mexico, Argentina, Chile and other countries and regions, praised by customers.
