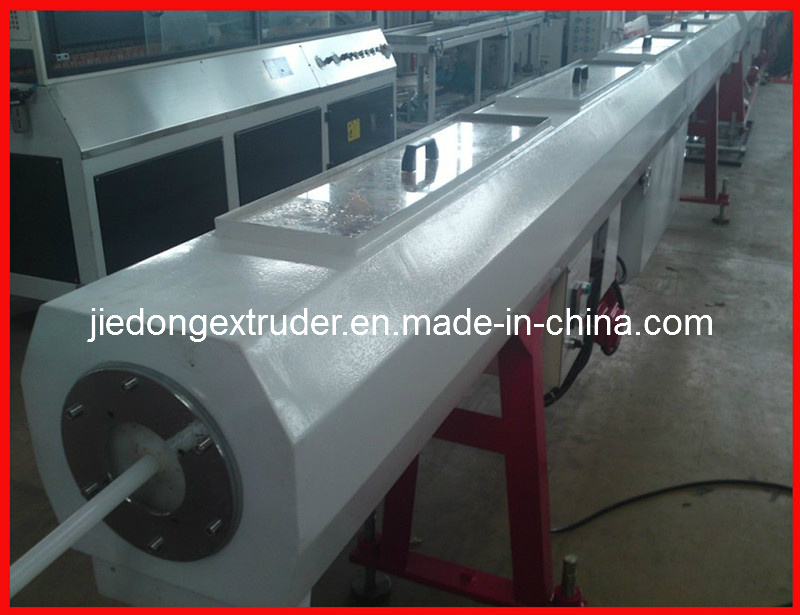

*Description of JD-SJ65/30 PPR hot and cold water pipe extrusion line
*Using a special screw design and enhanced plasticization effect of PPR to ensure high-quality and high speed extrusion, high shear stress and low temperature to ensure that raw materials of high perfoemance plastics extrusion, the measurement on the feeder with the drying system to ensure the uniform plastic extrusion of PPR.
*Split spiral extrusion die is designed for PPR pipe, production range of 20-63mm, the maximum line speed is up to 10m/minI. The configuration of the line
--- SJ-65/30 extruder: 1unit
-AC motor, 37KW 1 set
-Speed regulating unit, 37KW 1 set
--- SJ-25/25 extruder 1 set
-AC motor and frequency conversion control, 3.7KW
---Pipe die head and mould 1set
12, 20, 25, 32, 40, 50, 63mm
---SZD-6000 Vacuum calibration unit (the height of the centerline is 1000mm) 1 set
Equipped with 1 vacuum pump and 1 water pump.
---SDP-6000 Spraying water cooling tank(the height of the centerline is 1000mm) 1 set
---SQY-63 Hauling-off machine (the height of the centerline is 1000mm) 1 set
2 pedrail hauling-off machine, upper and down pedrail
Valid clamping length: 1200mm
--- SQG-63 Non-scraped cutting machine (the height of the centerline is 1000mm) 1 set
NonscraPPRd knife cutting,
---SFL-6000 pipe stacker for PPR pipes 1 set.
|
Model/Sepc. |
Diameter Range (mm) |
Extruder model |
Line speed (m/min) |
Max. Capacity (kg/h) |
Installed power (KW) |
|
JD-SJ65/30 |
12-63 |
SJ65/30 |
0.8-9m/min |
120 |
55 |
|
JD-SJ90/30 |
75-160 |
SJ90/30 |
0.2-4.5m/min |
260 |
120 |
Qingdao JIEDONG plastic machinery Co., Ltd is a professional manufacturer of plastic machinery, who is one knowledge-intensive manufacturer dedicated to extruder kind of equipment of scientific research, development, fabrication, sales and service.
Our company was awarded science and technology progress enterprise title by Qingdao government, also holds ISO9001: 2000 and CE certificate, and has independent import and export rights.
Plastic machinery we manufactured widely covers series extruder of plastic pipes; plastic plate &sheet; plastic profile; granulating unit; plastic recycle machine and crusher, more than 20types and have more than 100 varieties.
Our plastic machinery with top quality and company hold very good reputation, so our plastic machine lines had far sold to 30 provinces and cities in domestic market and had export to India, Russia, Korea, Iran, Saudi Arabia, Turkey and Vietnam.
Our products include plastic pipe production line, plastic profile production line etc
such as:
machine for PVC pipe, PE/HDPE pipe, PPR pipe, PA/PU pipe, corrugated pipe, COD duct, pre-stressed corrugated pipe, PE carbon corrugated pipe etc.
Machine for plastic profile include: PVC sheet, PVC corner bead, PVC profile, PET sheet, PET packing belt, WPC sheet, WPC door/winder board, WPC profile etc.
auxiliary machinery include: Mixer, drying machine, crusher, pelletizer etc
