PP-R pipe has plastic pipe features such as light weight, corrosion resistance, no scale formation, long service life, but also has the following main features:
1, Non-toxic, health.
The raw material moleculars of PP-R are only carbon, hydogen, they haven't toxic harmful elements, it's healty and reliability, it is used not only for the cold and hot water pipis, but also can be used for pure drinking water system.
2, Energy-saving insulation.
Thermal conductivity of tube is 0.21w/mk PP-R, onle for the steel 1/200.
3, Good heat resistance.
PP-R VEKA softing point is 131.5° C, the maximum operating temperture is up to 95° C, it can be used for the building hot water system
4, Long service life
The service life of PP-P tube is up to 50 years in the working temperature 70° C, working pressure(P. N) under 1.0 MPa, the premise is the pipe must be above S3.2and S2.5 serives. It can be used more than 100 years in room temperature.
5, Convenient installation
PP-R has godd welding performance, it can be heated and welded convenient easily, the joint strength is greater than the pipe itself.
6, The material Recyclable utilization.
After cleaning, crushing and recyling, the PP-R can be reproduced pipes. If the recycled material is less than 10% of the total material, it doesn't affect the quality of the products.
Product Description
PPR raw material: According your order
Brss insert: 58# or 62# brass
Main products: PPR fittings, PPR pipe, composite pipe, PPR ball valve, PPR stop valve, PPR filter, PPR union etc.
Supply PPR fittings mould with very high quality
Size: From 20mm to 110mm
Working temperature: -40~ +95° C
Pressure: 2.5Mpa
Packing: With poly pag packing then in color carton
OEM: Offer
ISO9001, ISO14001
Standard: DIN8077/8078
Quality: 50years guarantee
| PIC. | SIZE | ECONOMIC |
|
| Equal Tee |
| Bitmap | T20 |
|
| T25 | 0.073 |
| T32 | 0.127 |
| T40 | 0.211 |
| T50 | 0.392 |
| T63 | 0.715 |
| T75 | 1.177 |
| T90 | 1.97 |
| T110 | 3.425 |
| T160 |
|

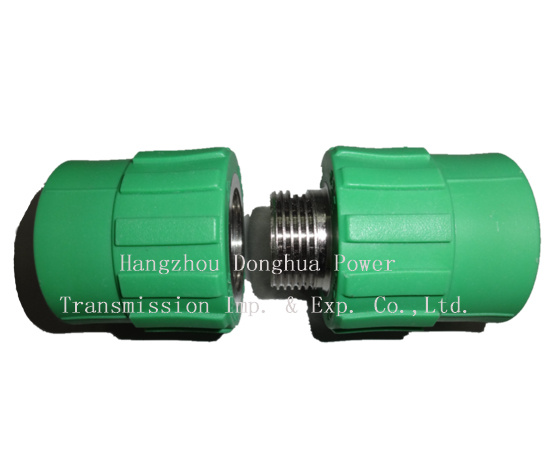

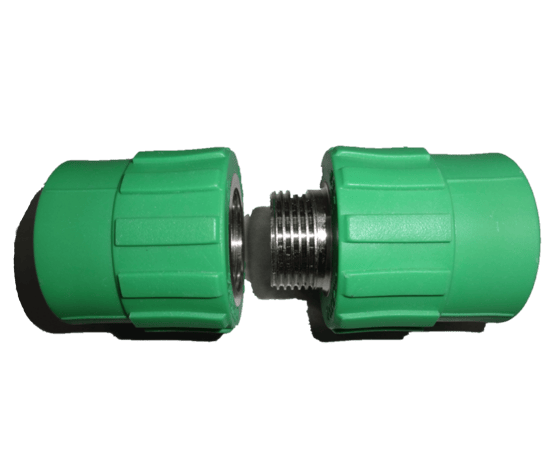

| PPR Union |
| Bitmap | UN20 | 0.0736 |
| UN25 | 0.1156 |
| UN32 | 0.1577 |
| UN40 | 0.2944 |
| UN50 | 0.4206 |
| UN63 | 0.757 |
| UN20 | 0.101 |
| UN25 | 0.143 |
| UN32 | 0.2103 |
| UN40 | 0.3575 |
| UN50 | 0.5257 |
| UN63 | 0.8832 |
| Reducing Tee |
| Bitmap | TA25x20x25 | 0.07 |
| TA32x20x32 | 0.091 |
| TA32x25x32 | 0.103 |
| TA40x20x40 | 0.171 |
| TA40x25x40 | 0.183 |
| TA40x32x40 | 0.19 |
| TA50x20x50 | 0.245 |
| TA50x25x50 | 0.276 |
| TA50x32x50 | 0.312 |
| TA50x40x50 | 0.352 |
| TA63x20x63 | 0.355 |
| TA63x25x63 | 0.463 |
| TA63x32x63 | 0.502 |
| TA63x40x63 | 0.612 |
| TA63x50x63 | 0.624 |
| TA75x32x75 | 0.697 |
| TA75x40x75 | 0.805 |
| TA75x50x75 | 0.887 |
| TA75x63x75 | 1.037 |
| TA90x40x90 | 1.142 |
| TA90x50x90 | 1.308 |
| TA90x63x90 | 1.595 |
| TA90x75x90 | 1.699 |
| TA110x50x110 | 2.008 |
| TA110x63x110 | 2.439 |
| TA110x75x110 | 2.674 |
| TA110x90x110 | 2.909 |
| TA160x110x160 |
|
| Reduced Elbow |
| Bitmap | LA25× 20 | 0.052 |
| LA32× 20 | 0.07 |
| LA32× 25 | 0.082 |
| LA40× 20 | 0.195 |
| LA40× 25 | 0.258 |
| LA40× 32 | 0.211 |
| LA50× 40 | 0.281 |
| LA63× 40 | 0.352 |
| LA63× 50 | 0.469 |
| High footed pipe clamp |
| Bitmap | HK20 | 0.026 |
| HK25 | 0.03 |
| HK32 | 0.033 |
| HK40 | 0.042 |
| HK50 | 0.049 |
| HK63 | 0.056 |
| Over Cross |
| Bitmap | ∪ 20 | 0.112 |
| ∪ 25 | 0.175 |
| ∪ 32 | 0.298 |
| Cross |
| Bitmap | C20 | 0.054 |
| C25 | 0.087 |
| C32 | 0.146 |
| C40 | 0.235 |
| c50 | 0.436 |
| c63 | 0.596 |
| Female threaded Elbow with disk |
| Bitmap | ZL20F1/2" | 0.343 |
| ZL25F1/2" | 0.554 |
| ZL25F3/4" | 0.602 |
| Felame threaded Tee |
| Bitmap | T20F1/2" | 0.301 |
| T25F1/2" | 0.361 |
| T25F3/4' | 0.422 |
| T32F1/2" | 0.518 |
| T32F3/4" |
|
| T32F1" | 0.939 |
| T40F1-1/4" | 1.626 |
| T50F1-1/2' | 2.288 |
| T63F2' | 2.891 |
| Female threaded Elbow |
| Bitmap | L20F1/2" | 0.265 |
| L25F1/2" | 0.325 |
| L25F3/4" | 0.434 |
| L25F1/2" |
|
| L32F3/4" | 0.723 |
| L32F1" | 0.994 |
| L40F1-1/4" | 1.716 |
| L50F1-1/2" | 2.288 |
| L63F2" |
|
