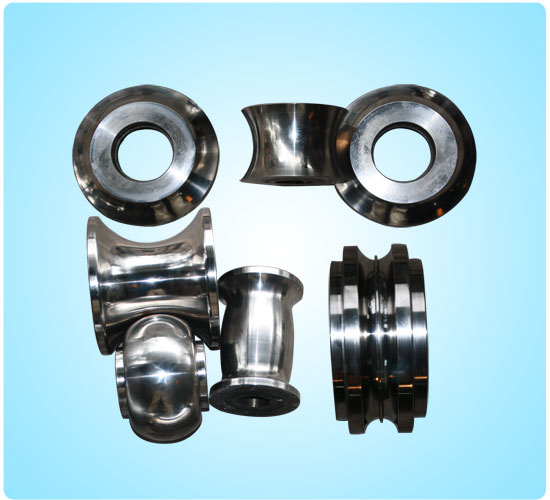

Precise Stainless Steel Pipe Mould (BG)

Precise Stainless Steel Pipe Mould (BG)
Price: Negotiable
Trade Terms: FOB
Min Order: 1set
Pay Type: L/C,T/T
1. Precise Stainless Steel Pipe Mould (BG): Round tube, square tube, plum tube, flat tube, oval tube, fan-shaped tube, polygonal tube, single and double groove tube, frame tube, Special-shaped tube mold, etc.

2. Selection: To produce first-class pipe mold, we must have first-class raw materials. Our company use high-quality mold steel Cr12MOV as raw material which is high wear resistance, toughness, resistance to high pressure, high hardness, strong quenching.

3. Machining Process: Raw materials- materials tesing- exercise- saws- turning- drilling- turning- CNC precision turning- grinding- quenching- hardness test- internal and external grinding- test- boxing.

4. Features: Mature manufacturing process, rich experience and standard production management build up the brand of BaiGuan. Use CNC machining of Japan, high precision; 10 years experience in R & D, the leading solution for uneven surface forming tube, bad angle, pipe problems generated in the process such as strain wrinkles, fingerprints, mechanical pattern, on the corner, concave angle; And to form tolerance of roundness in less than 0.05mm; Square tube on the angle does not exceed ± 0.05mm

5. Pre-sales services:

Answer the customers' questions about investment consulting on the field of stainless steel pipe industry;

According to the production process requirements, plant management requirements and the company development, offering factory planning proposals and making plant arrangements for the customers, such as functional area about production, storage, office, living, yard, etc...

Discuss the development trend of the global stainless steel industry as a whole with customers, particularly analysis and forecast the status as well as the outlook, trends, development, import and export, competition pattern of Chinese stainless steel industry.

Customers can visit the production line of stainless steel pipe in our factory for free.

6. After-sale Services:

Provide the relevant shipping charge information, take charge of loading and the relevant shipping procedure, focus on the safety of the goods and the shipping time.

Provide the technical documents about machinery installation, maintenance, operation and so on.

Provide the technical support about the machinery installation, maintenance, operation and so on.

Provide the equipment list of the main components.

Responsible for the equipment installation and commissioning guidance.
Provide one year warranty (man-made damage without insurance, the vulnerability of non-insurance).

Provide post-paid warranty service after shelf life.

Foshan charged affairs for the customers: Apply for the certificate, find the relevant products of this industry, find the master worker, provide the information we know of the relevant weld pipe industry.

Provide our customers with limited space for short-term storage of other company's products, provide charged affairs for express and shipping.
  parameter
Type
Specification
(mm)
Material Tolerance  ranges(mm) Hardness  ranges
Round  tube 5-325 Cr12MoV/SKD11 Roundness: +-0.05 60-63HRC
Square  tube F10xF10-F300xF300 Cr12MoV/SKD11 Flatness: +-0.04 60-63HRC
Special-shaped  tube F10xF10-F100xF300 Cr12MoV/SKD11 Flatness: +-0.04 60-63HRC

Prod Model: BG
Markets: Southeast Asia,Africa,Mid East,Eastern Asia
Place Of Origin: Foshan, China
Specification: Various for Your Choose or Design for You
Brand: Bg
Warranty: One Year
Material: Cr12MOV
Shaping Mode: Forming and Forging Mould
Product Material: Stainless Steel
Product: Pipe Mould
Foshan Baiguan Science and Technology Co., Ltd, located in Foshan Shishan Industrial Park, is a whole-plant equipment manufacturer of the stainless steel tube mill, specialized in research, development, design, production, sales, and support services.

Our company has strong technical force and overall quality. We have a professional welded pipe R & D team, management team, and more than 50 capable technicians. Also, we established an advanced computer simulation laboratory and workshop in equipment development experiments.

We strictly carry out the ISO9001 international quality management system standard. After several years development and innovation, through the staff's pursuing and full use of modern management and advanced precision machinery processing equipment, we establish a complete operating system throughout home and abroad. Quality products and attentive service not only have won a large number of loyal customers for the company, but also achieved recognition from the industry and authorities.

Based on stainless steel welded pipe equipment, we created our brand of "BG" for a dozen specifications of products, including industrial pipe making machine, weld seam-inside leveling machine, bright annealing equipment, high frequency welding tube mill, stainless steel decoration pipe making machine, polishing machine, mold, embossing machine, milling machine etc.

To go with the development of the times, and to meet the diverse needs of customers, our company will go hand in hand with a innovation attitude. As customers continue to recognize, our products have been selling both at home and abroad.

Our company's corporate philosophy is " win by technology, strive for excellence". We forge ahead by working ways of "scientific, rigorous, innovative"; Hunt for the latest industry information with sharp market insights. We are LED by market demand. Customer-oriented is our core value. We are sure to provide our customers with quality products and first-class services.

We warmly welcome you to visit our company and negotiate win-win cooperation so as to create a better future!
