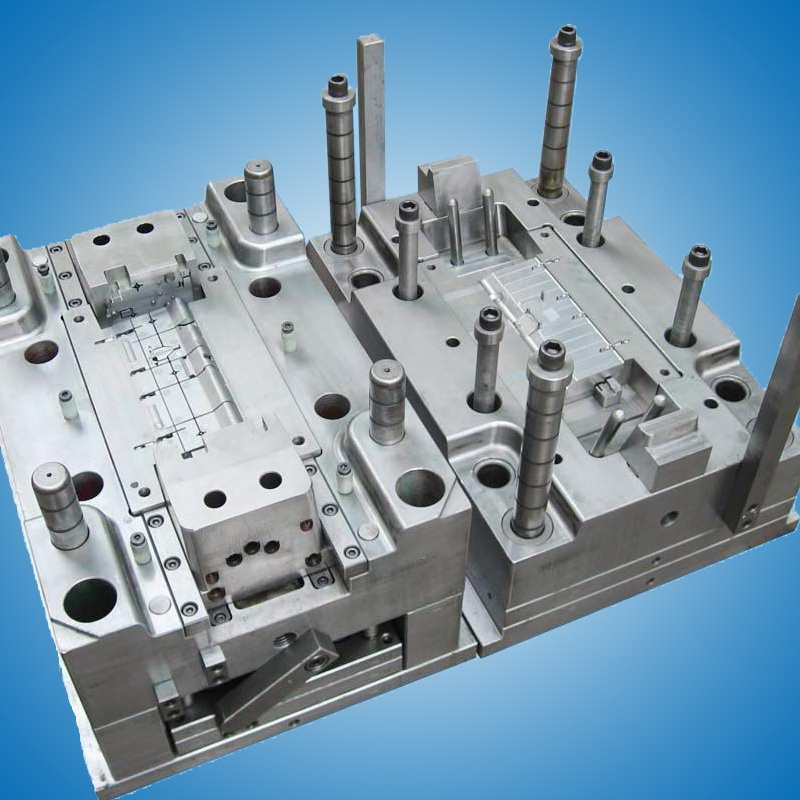

Precision Injection Molding Plastic Moulds

Precision Injection Molding Plastic Moulds
Price: US $ 100/Set
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal
Plastic Molding Injection Mold description
Injection molding is a manufacturing process for producing parts by injecting material into a mold. Injection molding can be performed with a host of materials, including metals, glasses, elastomers, confections, and most commonly thermoplastic and thermosetting polymers. Parts to be injection molded must be very carefully designed to facilitate the molding process.
Injection molding utilizes a ram or screw-type plunger to force molten plastic material into a mold cavity; This solidifies into a shape that has conformed to the contour of the mold.
Injection molding consists of high pressure injection of the raw material into a mold which shapes the polymer into the desired shape Injection molding machines consist of a material hopper, an injection ram or screw-type plunger, and a heating unit. They are also known as presses, they hold the molds in which the components are shaped.
We are specialized in manufacturing Plastic Injection Standard Mold and Customized Mold as per customer's requirement.

Plastic molding injection mold, stamping, deep drawing, blowing Moulds Specifications
Mold standard: HASCO/DME/LKM/Rabourdin/Misumi
Runner: Hot/cold
Plastic materials: PP, PE, ABS, PVC, PC, PS, PU, PMMA or as per customer requirement
Mould life: 500, 000 shots or as per customer requirement
Cavity no.: 1 x 1.1 x 2, 1 x 4, 1 x 8, 1 x 16, 1 x 32, 1 x 64
Intensive cooling system, optimal air venting, shining polish, advanced mould design, easy to operate
Plastic Injection moulds
Die Casting moulds
Stamping, deep drawing, blowing moulds

Company Advantage
(1)Plastic mould;
(2)Strictly obeys the processing procedure according to customer' s requirements;
(3) Fast delivery of T1 samples.
(4) In-house inejction mould designing available;

Core and Cavity Material:

718, 718H, S136, NAK80, P20, SKD61 etc.

Main Processing Equipment

CNC, Grinding machine, Lathe, Drill Press, EDM center

Practicable Software:

Pro/engineer, Solidworks, UG, Auto cad.
Prod Model: QR-PM005
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cavity: 1-1,1-2,1-4,Ect
Cavity & Core: DIN 1.2316/ DIN 1.2738
Material: Steel 45#, 50#, 718, etc
Mouldbase: S50c.Lkm Standard^etc
Mould Accessories: Dme/Hasco Standard...
Cooling System: Core Baffle Cooling, Cavity Plate Chain
Molding Life: 500,000-1,200,000shots
Runner: Cold or Hot
Gate Type: Pin-Point Gate
Plate Mould: 2 or 3 Plates
Shaping Mode: Injection Mould
Application: Hardware
Installation: Fixed
Process Combination Type: Single-Process Mode
Qirui Metal and Plastic Co., Ltd. was established in Xiamen in 1998. Our factory produce strictly according to ISO9001: 2008 international quality system. We have the facilities and capabilities of stamping, deep drawing, Alu/Zinc casting, injection molding, AC/DC motor fabrication, CNC machining and so on, skilled personnel, over 15 years of production experience to consistently provide high quality parts or components that meet your exact specifications, also we have R&D department with 3D printer to facilitate prototype development and offer a comprehensive OEM/ODM service package including consulting, engineering, cost analysis, and manufacturing. for instance, ours' chocolate fountains, Belgium waffle makers and frying pans are very popular around the world.
In addition, making metal and plastic parts, commercial and household appliance, one lighting department has been set up to facilitate LED lighting components and LED lights development, especially indoor LED lighting as LED bulb, down light, spot light and panel light to meet the LED lighting marketing requirement.

Please call or e-mail us today to see what solutions we can provide your company or to find out how we can help you with your project!
