Precision Injection Multi Cavity Mould HOT Runner And 2 plate
Quick Detail:
1. The part name: Medical instruments(plastic injection mold)
2. Plastic material: PP
3. Cavity material: H13 HRC48-52
4. Mold life: 1000k shots or according to customers quantity condition to decide it with saving cost for our customers.
5. Gate type: SUB-gate, direct gate, fan gate, point gate, edge gate, valve gate, tip gate etc according to our customers requires.
6. Mold base standard: LKM Local standard, DME or HASCO, Customize according to customers' requirements.
7. Standard of mold accessories: LKM, DME, HASCO, MISUMI, Meusburger, CUMSA, Progressive, INCORE, HRS, Husky, YUDO, PETS, MOLD-MASTER, MERKLE, Parker, HPS, EUCHNER, RJG, cilpres, NITTO, CRACK, ASSAB, GSW DIN standard, BOHLER, AISI standard, DAIDO JIS standard, PUNCH etc according to our customers requires.
Description:

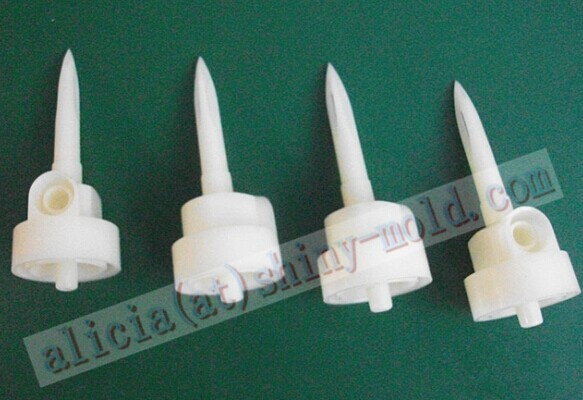

The part name: Medical instruments
Mold type: Plastic Injection Mould with HOT runner system
Locating ring Dimension: Dia100
Part Material: PP
Ejection type: Ejection pins.
KO Pattern: 200*200
Sprue Radius: SR 19
Mold construction description: HOT runner system with SUB gate, 2 plates, 8sliders, and many shut off area. Many size tolerances are no more than +/-0.02mm, twice ejection with ejection pin and stripper plate, there is a very small long center pin in the product, which is very easy to be deform when molding, otherwise, this mold have 24 cav, we must ensure that the size of all mold component are consistent in mass production.
This mould is made in Shiny Mould Factory. It is a mould exported to Europe, with complicated structures and high quality requests. Customer needs mold life to be over 1 million shots. We can ensure this mold life and give warrant to our customer that once some mould components are broken during working, if it is caused not by the operation fault from the workers, we can provide new mould components to them free of charge.
We specialize in Mold Making & Injection molding that has been defined since 2003, well equipped with precision CNC, Mirror-EDM, Slow wire cutting, Injection Machine and the most advanced CMM etc. Shiny is able to take an idea from its conception to a completely finished product.
All our mold standard meet DME or HASCO or MISUMI. Complete in-house Mold making, Mold testing and Injection Molding.
Shiny supply finished parts from 50 pieces upwards to millions of parts as per the customer's request.
