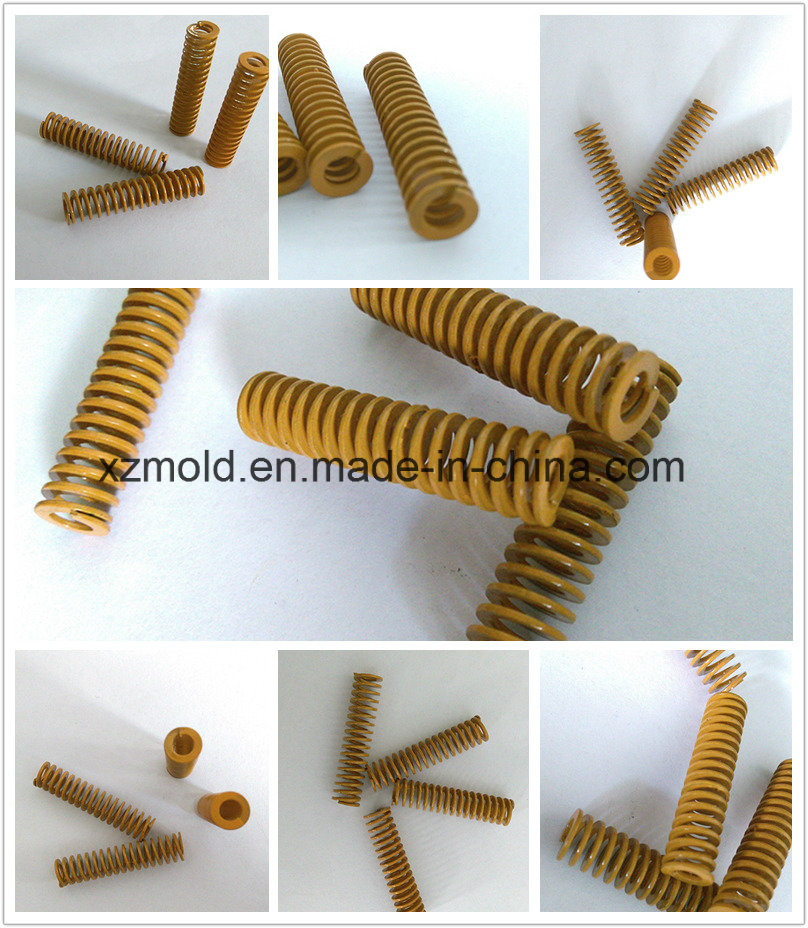

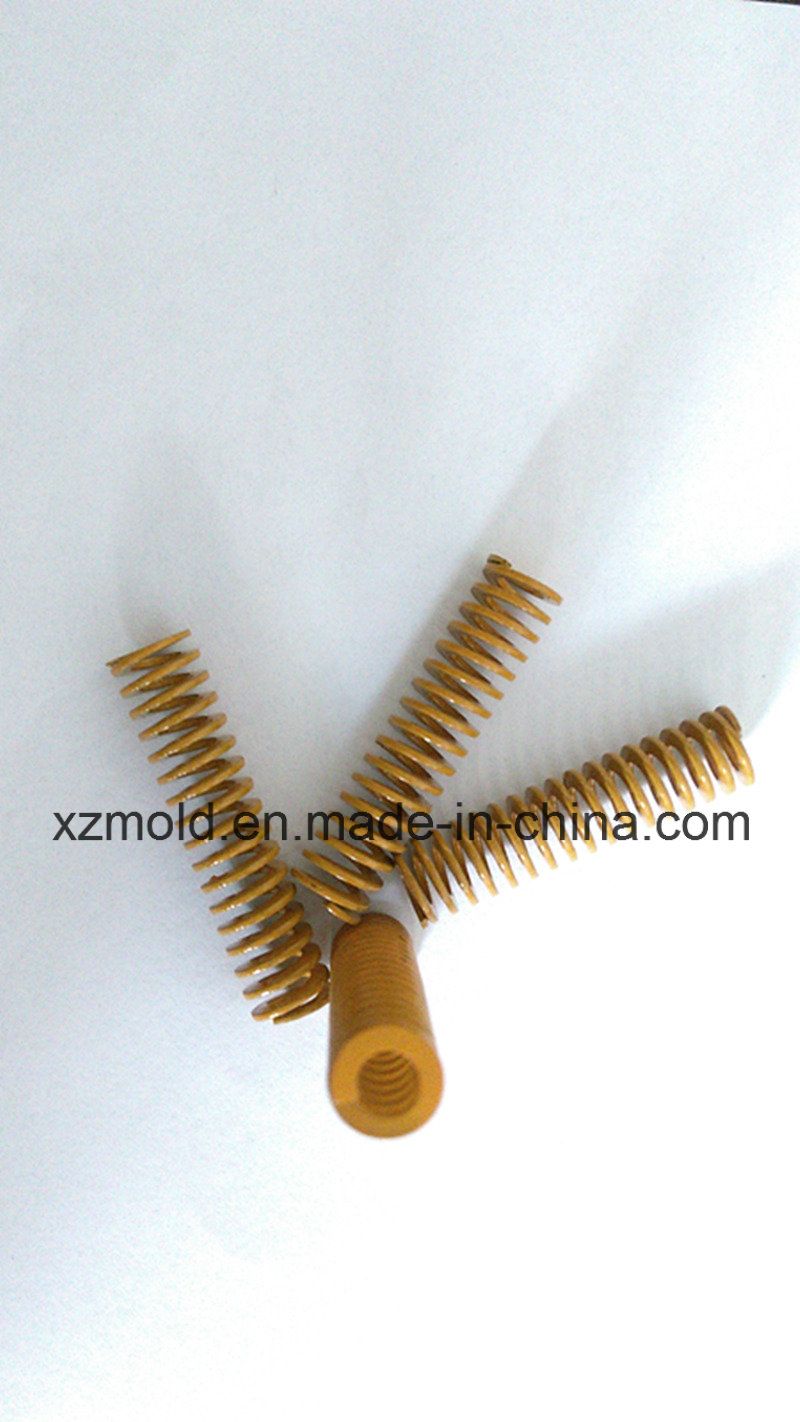

The mould springs of rectangular section are widely used in the punching moulds, metal die-casting moulds, plastic injection moulds and mechanical equipment with rigid structure. Made of good steel, these products have features of high elasticity and high precision.
Materials: SKH51, SKD11, ASP23, M42, SKD61, S45C, A3
Hardness: 60+2HRC, determined by material
Service: Made to order
Marking: Up to requirements
Machine type: Punching machine
To enable us to effectively quote your various punch needs, please provide complete specifications and prints where possible
QC system: 100% inspection on critical dimensions before shipment
To increase customer satisfaction, we insists on good-quality and professional manufacturing products. As a result, we have established a faultless Quality Assurance System.
With more than 11 years of professional experience,
Besides, customized services availble here.
Welcome your inquiry, and drawings
Welcome to contact with us, we will give you our best service.
| Hardness | 45-68 HRC or Depend on the material |
| Heat treatment | Available |
| Service | Made-to-order |
| Surface treatment | TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available |
| Closest tolerance | + - 0.002mm |
| Polishing | close to Ra0.2 |
| processing technology | Die polished, Polishing, Plating titanium, Lettering, Wire EDM, Electro-discharge machining, Titanize, Heat treatment, Fast wire cutting, Slow wire cutting, Head annealing, Sintering. |

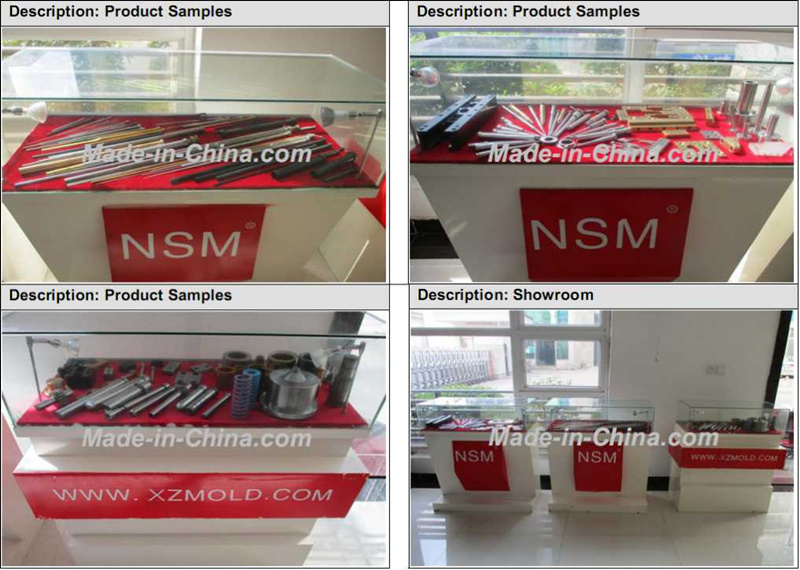

Products Show
1.Factory information:
Company:Dong guan city Xiang zhen mold parts Co.,Ltd |
| Web: www.xzmold.com |
| Location:Dong guan,China (close to Hong Kong,Shen Zhen,Guang Zhou) |
| Software:PDF,Auto-CAD,Pro-E,UG etc are available |
| Employee:100-200 |
| Manufacture in:High precision mold parts/Hot-runner and related parts/CNC/EDM parts/Grinding parts/Customized mold parts |
2. Equipment and Inspection measurement:
Description | Machine type name | Origin from and brand | Quantity | Precision level(mm) |
| Processing equipment | CNC Processing | Taiwan | 3 | ±0.01 |
| CNC Lathe | Japan | 2 | ±0.003 |
| WEDM (Low speed wire cutting) | Japan | 2 | ±0.005
±0.002 |
| WEDM (high-speed wire cutting) | China | 2 | ±0.005
±0.01 |
| Flood grinder | China | 1 | ±0.002 |
| EDM | Taiwan | 2 | ±0.005 |
| ID Grinder | Taiwan | 3 | ±0.001 |
| Depth drill | Taiwan | 3 | ±0.02 |
| Automatic grinder | Taiwan | 2 | ±0.001 |
| Centerless Grinder | Taiwan | 12 | ±0.001 |
| Surface Grinder | Japan | 2 | ±0.001 |
| Surface Grinder | Taiwan | 5 | ±0.001 |
| Vertical hydraulic Heading Machine | China | 2 | |
| Semi-automatic Heading Machine | Taiwan | 3 | |
| Manual Heading Machine | Taiwan | 2 | |
| Automatic forging machine | Taiwan | 1 | |
| Bench grinders | Taiwan | 2 | |
| Punch Grinder | Taiwan | 6 | ±0.002 |
| Lathe | China | 4 | ±0.01 |
| 32 type Lathe | Taiwan | 4 | |
| 25 type Lathe | Taiwan | 3 | ±0.01 |
| 15 type Lathe | Taiwan | 10 | ±0.01 |
| Milling Machine | Taiwan | 6 | ±0.01 |
| Liquid nitriding furnace | China | 1 | |
| Tempering furnace | China | 2 | |
| Oxidation furnace | China | 1 | |
| Inspection equipment | Rockwell hardness | Shanghai | 1 | ±0.5° |
| Height gage | Japan | 2 | 0.001mm |
| Microscope | Shanghai | 2 | 0.0001mm |
| Three-dimensional | Germany(Zeiss) | 1 | ±0.002 |
| 2.5 dimension | Taiwan | 1 | ±0.001 |
| Digital Projector | Taiwan | 1 | ±0.002 |
| Vickers hardness tester | Taiwan | 1 | |
| Concentricity device | Taiwan | 2 | ±0.001 |
| Digital Micrometer calipers | Taiwan | Multiple | Conventional |
| slide calliper rule | Taiwan | Multiple | Conventional |
| Height Gauge | Taiwan | 1 | Conventional |
| Roughometer | Japan | 1 | Conventional |
3.Precision parts information:
Accuracy for EDM | Clearance angle | R0.03mm |
| | Surface Roughness | Ra0.05mm |
| Accuracy for Grinding | Clearance angle | R0.02mm |
| | Shape tolerence | ±0.001mm |
| | Accuracy for surface | Ra0.05mm |
| | Minimum thickness | 0.1mm |
| | Minimum groove | Wide 0.01mm;Depth 0.25mm |
| Material | Japan:SKD61/SKD11/SKH51/SUJ2 | |
| | Germany:1.2343/1.2344 or as Customer's request. | |
| Size | Standard as DME/Hasco/Punch etc or Customized | |
| MOQ | 1Pcs/Type | |
| Price | EXW/FOB/CNF/CIF | |
| Payment | T/T or %advance-%against shippment | |
4.Why choose us:*-Quality: Qualified Raw Material
Reliable Machines
Mature process
Skilful employees
Strict Quality Control
*-Price: Competitive price /Reasonable margin
*-Service: Any inquiries replied within 24 hours
Quick Delivery
Quick Response (7/7)
Warranty: Depend on product type.
Stardand parts:500K---2M cycles
5. How to order: (1) Send us drawing or standard code & size
(2) We quote you within 1 day (except Saturday and Sunday)
(3) Get agreement with price and sign PO or Contract
(4) Make payment in advance
(5)If sample required,we will make sample first
6. Contact Info:Sales Manager:Nancy
Tel: +86 769-83516188 ext 8831
Fax: +86 769-83510866/83510966
Dongguan City Xiangzhen Mold Parts Co., Ltd. is a professional manufacturer of standard components and plastic molds.
The ranges of our products include standard (HASCO, DME and JIS) and customized high-precision ejector pins, ejector sleeves, shoulder ejector pins, blade ejector pins, core pins, guide posts, bushings, punching parts, fixtures and other parts.
We not only produce these standard components, but also help solve problems in the production of plastic molds and die casting parts.
Our factory is equipped with Taiwanese CNC working centers, NC gun drilling machines, centerless grinders, cylindrical grinding machines, internal grinding and honing machines, high-speed precision desk-top lathes and surface grinding machines.
We follow the spirit of "teamwork" and establish close and cooperative partnership with our customers. The company has cooperated with many clients both from domestic and overseas, and has obtained consistently high praise from our customers since it was set up. We sincerely welcome you to visit our company or contact us for cooperation!
We have significantly essential support from local customers that are leading mould manufacturers and reputable foreign agents in mould industry.
