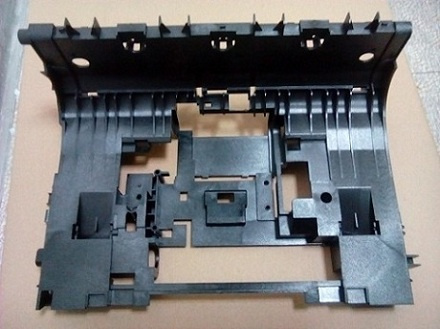

Plastic framework mould requirement:
1. Critical to fit and/or function;
2. Material to be PA+33% GF, processing must be with in Spec.;
3. Color to be black, shade is unimportant;
4. Draft to be included in dimensional tolerance;
5. Parts to be supplied from vendor in trays, one part per cell to prevent damage to teeth. Parts must never be placed into bins or bags: They must be kept in trays. One part per cell, until individually removed for assembly.
6. Tolerance indicated applies within dimensions indicated: Remainder may be +0.2/-0.03
7. Shspe of roots of teeth to be as produced by specified basic rack.
8. Gear to be inspected in area indicated:
9. The highlight surface must be smoothy for paper path.
10. No ejector pin mark, gate, flash, scratches or imperfections permissible on surface indicated;
11. Cavity identification mark to be placed on surface indicated
12. Nominal wall thickness is 2.5, part volume is approximately with 3D /actual;
13. Zero draft on textured surface: Slide required;
14. Target A(a, a2, a3) B(b1, b2) to be established on highest point;
15. The nominal geometry is established by the wireframe data. The following tolerances with respect to established datums apply unless otherwise specified:
0 to 25 mm: ± 0.1
>25 to 100 mm: ± 0.2
>100 to 200 mm: ± 0.3
>200 to 400 mm: ± 0.4
Mould details:
Runner system: Hot runner valve gate for sequence control;
Clamping force: 650 Ton
Cycle time: 41 sec below spec
Data precision require: 6 positions must meet Spec( 0.3 mm)
Moulds' steel: P20
Cav/core material: S136
CNC (11) | MF600(42000turns) | 1 | Germany |
| MCV-1020D/DL-MCV720 | 3 | Taiwan |
| MV1615/MV1100 | 2 | Taiwan |
| V85/V145/MV-1600 | 3 | Taiwan |
| DMV-2000G/ MV-3018G | 2 | Taiwan |
| 2 | EDM Wire Cut (12) | Robofil-390 | 1 | Switzerland |
| W537 | 1 | Taiwan |
| DK-7750/7740/7732/7763 | 10 | China |
| 3 | EDM (15) | Roboform-22 | 1 | Chicago, USA |
| Roboform-2NC | 1 | Chicago, USA |
| CN-865C/T-1800 | 2 | Taiwan |
| DF-435Z/545Z/434Z | 5 | Taiwan |
| 7140/7150 | 6 | Taiwan |
| 4 | Grinding Machine (8) | KGS-515/618/250 | 7 | Taiwan |
| M7130 | 1 | China |
| 5 | Die Spotting Machine (2) | LS-200 | 1 | HK |
| WS-70 | 1 | HK |
| 6 | EDB Machine (1) | DH703 | 1 | HK |
