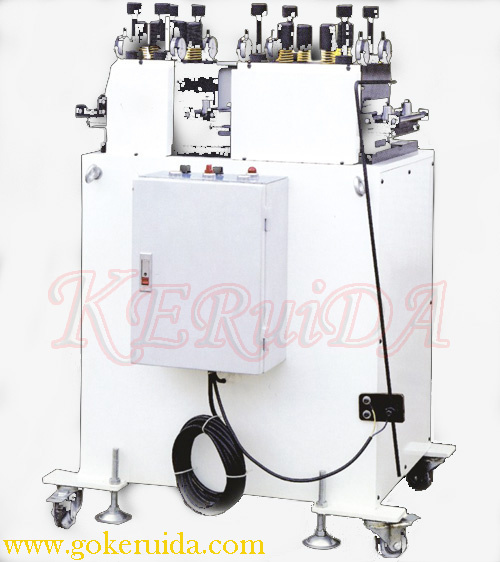

Features
1 ). It is suitable for straightening all kinds of high precision metal material.
2 ). This machine is powerful new equipment which is used for high speed press work. And it can advance pressing product's quality and quantity.
3 ). Fine electric parts can not be finished with high accuracy unless straightened coil materials may achieve. So Roll material need to be straightened, and the stress be moderately removed.
4 ). Downward or flat easily.
5 ). As bearings of work-rolls are, of a oiling, lubricating free type, there will be no trouble from the adherence of oil or dirt.
6 ). The drive unit is controlled by an inverters (cycle control)to feed smoothly at a speed synchronized with the press.
7 ). Two sections type straightening device, it is no need to adjust straighten function when rolled material is under straightening process (from start to end). To ensure the material at same flatness completely.
8 ). We Accept Special purposed Machine Orders.
9 ). Adopt transducer timing, which is can running placidity.
SPECIFICATIONS (GJ series )
Models | GJ-100A | GJ-200A | GJ-300A |
Material Width(mm) | 0~100 | 0~200 | 0~300 |
Material Thickness(mm) | 0.1~0.6 |
Hangement of work roll | 25 |
Straightening Method | 8-point micro-adjustment |
Motor(HP) | 0~16m/min |
Feed Direction | 1–2 | 1–2 | 1 |
Power | Left←→right |
Power | AC three-phase voltage220/2380V |
Dimensions (L×W×H) | 860×700×1230mm | 860×800×1230mm | 860×900×1230mm |
Machine Weight (kg) | 150 | 200 | 250 |
KERuiDA is a German-funded corporation, one of the well-known brands in the world. It is specialized in punch machine and mould & die making.
Punch machine making:
In 2005, Keruide Machinery Equipment Co., Ltd. was set up in Dongguan. Introduce Germany advanced technology and professional R&D, to design and make KERuiDA big three round high-speed precision automatism punch and a range of automatic machinery and equipment. We followed the policy of "People-oriented, Morality for the first". With professional technical R&D team, to research a new type of superhigh speed punch according to the customers' special needs. We always continue to improve our products, and due to our high quality and good services, we received the vigorous support and high trust from our customers. Thus, it created "Dongguan Keruide Machinery Equipment Co., Ltd. " a good image in business. And we take "creating the first brand of nation" as a goal.
Mould and die making:
We can provide one-stop service including design and fabrication of tooling, molding products and secondary process such as Silk Screen Printing, Spray Printing and Pad Printing etc. Due to the rich experience, competitive price, on-time delivery and high quality, our moulds and products have been sold very well all over the world, especially in European countries and U. S. In order to adapt to the pace of market development, we earned ISO 9001-2000 certification in 2005, which embodies our efforts in quality management. Advanced equipment, excellent employees, sophisticated techniques, superior quality management, responsive service system, all of these will contribute to our competition. Therefore, we have always kept long-lasting trustworthiness and harmonious Win-win relationship with our customers.
We always keep in mind: To survive on quality, to profit from management, always keep improving. And our slogan is "Take customer's interests firstly, Think what you think, Worry what you worry. "
Therefore, "Choose us, you choose the success! "
