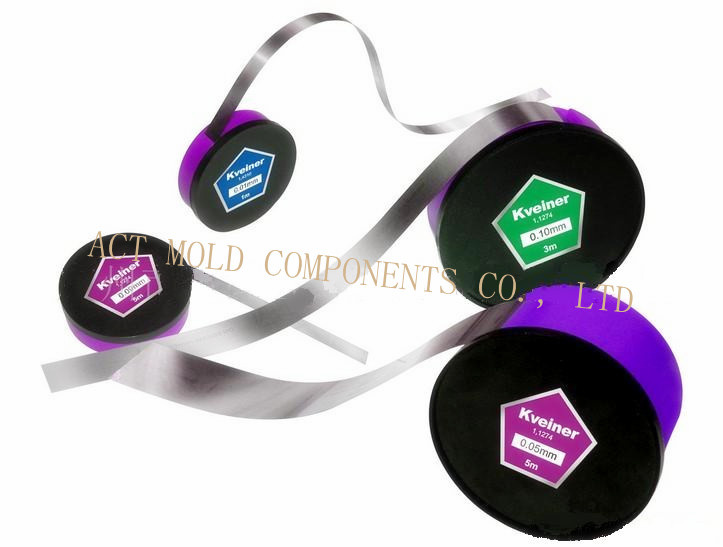

Material:
Option 1: high carbon steel, 46-48HRC
Option 2: stainless steel, 46-50HRC
Specification:
Width: 12.7mm, 25mm, 50mm, 100mm, 150mm
Thickness: 0.005-3.00mm
Thickness Tolerance:
0.005(±0.001)
0.01-0.03(±0.002)
0.04-0.06(±0.003)
0.07-0.12(±0.004)
0.15-0.18(±0.005)
0.20-0.22(±0.006)
0.25-0.30(±0.007)
0.35(±0.008)
Length: 1m, 3m, 5m
With more than 15 years professional experience, the team at Act Mold strives to manufacture quality components for Mold & Die Industry. We specialized in producing Mould Alignment Locks since 2002, then expanding our product ranges in order to cater various requirements from our valued customers. In 2007, our new plant was built for manufacturing high precision Carbide Dies & Punches so as to satisfy the needs of increasing productivity and reducing tooling costs for more customers from medical, automotive, electronics and consumer manufacturing industries.
We serve our esteemed customers with total solution, including design, production and technical support. Whether Mold & Die components according to JIS/DIN standards or custom-made products, we looks forward the opportunity to serving you with our expertise and be your fully-fledged partner.
