forging press

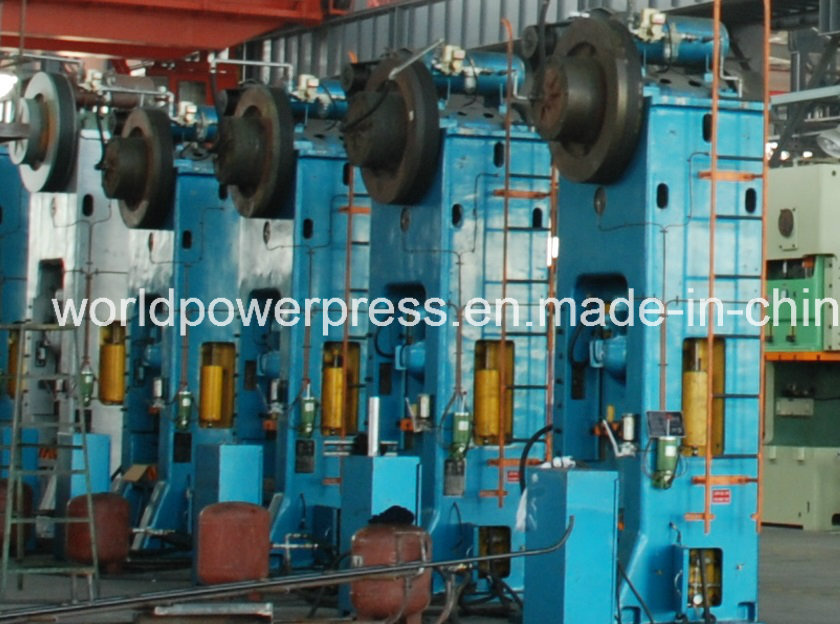

JS31 closed type single point press is widely used in industries including automobile, tractor, agriculture machinery, textile machinery, electrics, motor, instrument, aviation and weapons. It can fulfill the blanking, forming, bending and shallow-drawing processing. It is more suitable for various sheet forming parts.
Features:
1.Heavy duty lubrication system
2.Ultra-long guide rails
3.Finite element analysis for major partsm rigid and strong
4.Special clutch and brake
Parameters:
Item | Unit | JS31-125 | JS31-160 | JS31-200 | JS31-250 | JS31-315 | JS31-400A | JS31-500 |
| Nominal capacity | KN | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
| Stroke under nominal force | mm | 7 | 8 | 10 | 10 | 12 | 13 | 13 |
| Slide stroke length | mm | 130 | 160 | 200 | 200 | 220 | 250 | 250 |
| Stroke speed | times/min | 35 | 32 | 32 | 28 | 28 | 25 | 25 |
| Max. die shut height | mm | 350 | 385 | 500 | 460 | 520 | 530 | 530 |
| Die shut height adjustment | mm | 100 | 140 | 120 | 160 | 160 | 160 | 160 |
| Slide bottom size | L-R | mm | 550 | 510 | 700 | 700 | 700 | 810 | 810 |
| F-B | mm | 550 | 560 | 700 | 670 | 670 | 810 | 810 |
| Size of worktable | L-R | mm | 700 | 710 | 800 | 850 | 850 | 990 | 990 |
| F-B | mm | 750 | 790 | 850 | 900 | 900 | 1060 | 1060 |
| Knock out pressure | KN | 65 | 70 | 80 | 80 | 80 | 100 | 150 |
| Stroke | mm | 65 | 80 | 100 | 100 | 100 | 125 | 125 |
| Quantity | piece | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Motor Power | KW | 11 | 15 | 22 | 22 | 30 | 37 | 45 |
| Overall dimensions | L-R | mm | 1610 | 1640 | 2200 | 2185 | 2185 | 2437 | 2510 |
| F-B | mm | 1474 | 1725 | 2310 | 2242 | 2242 | 2548 | 2648 |
| Height above floor | mm | 4000 | 4325 | 4300 | 4866 | 4950 | 5450 | 5540 |
| Weight(Approximate) | TON | 11.2 | 12.8 | 15 | 21.5 | 23.82 | 40.5 | 42 |
Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic power press, press brake and shear machines in China.
We can supply mechanical power press from 6.3Ton to 630Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.
We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.
Warranty Policy
Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.
Installation Support
We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
