Press Machine / Rubber Mat Making Machine
| Price: |
US $ 1200-20000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
Product Description

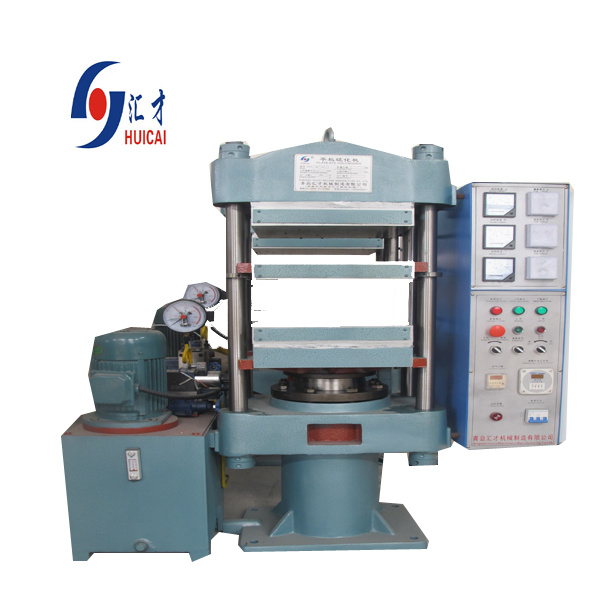

Rubber Tile Vulcanizing Press/Rubber Tile Making Machine/Rubber Tile Machine
A.Rubber vulcanizing machine
1.Material of steel plate:
We use hight quality carbon steel Q-235(produce by Jigang Group Co.,Ltd which is a famous company) ,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel.
2.Weldment of frame :World technique
Welded together as a whole part,Stewing fire treatment after weldment.
(Carbon dioxide gas shielded welding,alloyed welding wire).
Submerged arc welding, VSR treatment after weldment.
3.Piston:
The material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,and anti-abrasion.
4.Heating way&precision temperature control:
Steam ,oil or Electric (We use high quality heating pipe to keep heating stability)
Range of temperature:0-300 °C (can be adjustment if you need 400 °C ,we can do it )
Plate temperature tolerance:±0.1°C (very precise)other factory just is ±3°C
Also we can produce the machine with water cooling system.
5.Hydraulic system:(PLC control)
The professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure.
We use OMRON,SIMENS CHNT , SCHNEIDER ect brand electric parts.
6.There are more advanced technical information as our core patents,and not showed in the description,please send email to us.
B.Rubber tile making machine
Rubber tile is made of two layers of different rubber granulates, color granulates are fine granulates or rubber wire in surface, the bottom layer is thick rubber granulates or rubber wire.
Following is the main processes:
1.Conching:Put the rubber granulates and stain into the stirring barrel to stir,and then put into the adhesive to stir,this process requires for 4-6 minutes( because the adhesive is easy to cure, so stir it when use ).
2.Weighing raw materials:Weight the rubber granulates stirred, according to the granulates' thickness requirement of the tiles .
3.Paving and pressing:Paving the rubber granulates weighted on the mold, then floated it by trowel.Firstly paving the surface rubber granulates which is fine and color, then the thickness and black.
4.Vulcanization molding:Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of vulcanization accord to the thickness of the rubber tiles, in general, 3-8inutes finished.After that, Mold separate automatic, then remove floor tile on the shelves to dry.
5.Inspecting:Inspect the surface of the floor tiles formity, no aberration, no flaw, line with the product quality.
| Type |
XLB-D(Y)450x450x2
XLB-D(Y)600x600x2/4 |
XLB-D(Y)500x1000x1
XLB-D(Y)600x800x1 |
XLB-D(Y)750x850x1
XLB-D(Y)800x800x1 |
(MN)Nominal mounding power |
1.00 |
1.00 |
1.60 |
Working layer number |
2 |
2/4 |
2 |
Piston stroke (mm) |
300 |
300 |
300 |
Plate pressure (mpa) |
2.04 |
2.87 |
2.51 |
Main motor power (kw) |
2.2 |
2.2 |
2.2 |
Plate chearance (mm) |
125-200 |
125-200 |
125-200 |
Calefaction manner |
Electricity, (oil) steam |
Electricity, (oil) steam |
Electricity, (oil) steam |
Configuration |

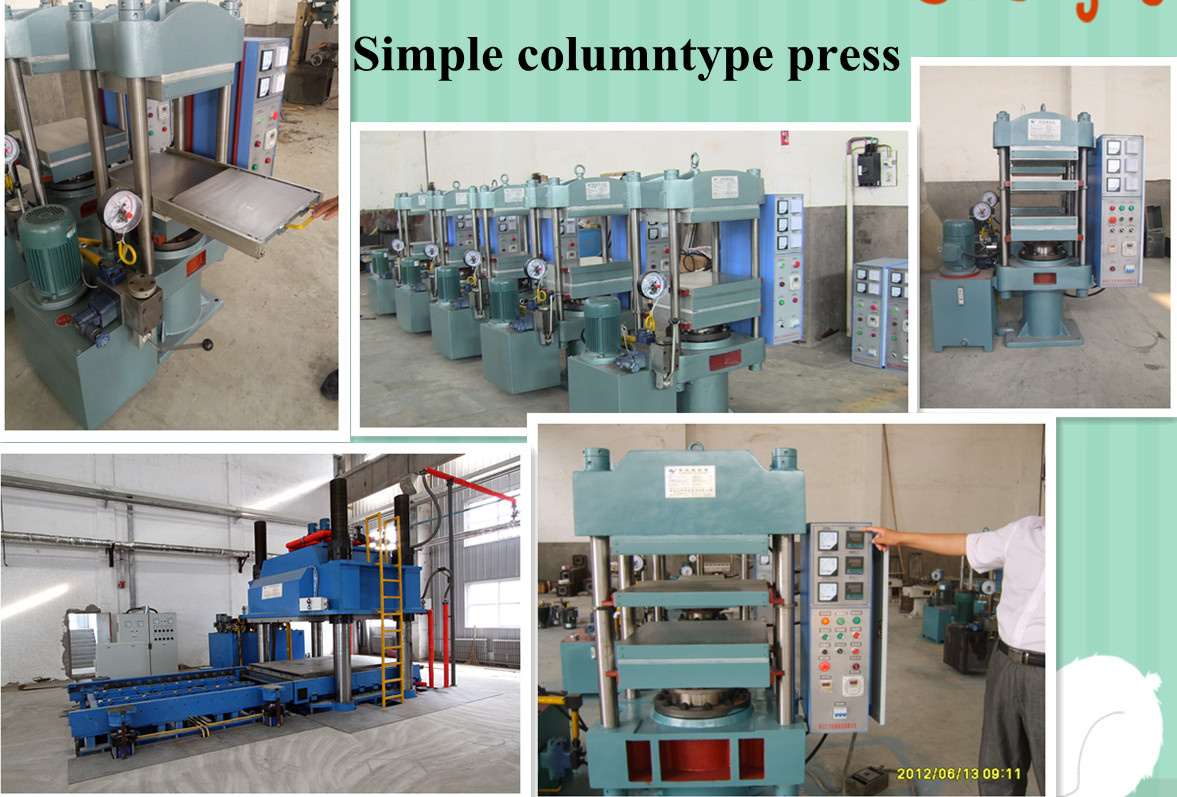

Column type, frame type |
Column type, frame type |
Column type, frame type |
| Prod Model: |
XLB-D(Y)550X550X4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Bule / Green / Red |
| Model: |
Rubber Tile Press |
| Size: |
550*550*4 |
| Working Layers: |
4 |
| Total Pressure: |
50t |
| Daylight: |
125 |
| Piston Stroke: |
500 |
| Motor: |
2.2kw |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Structure: |
Coloumn |
| Certification: |
CE, ISO |

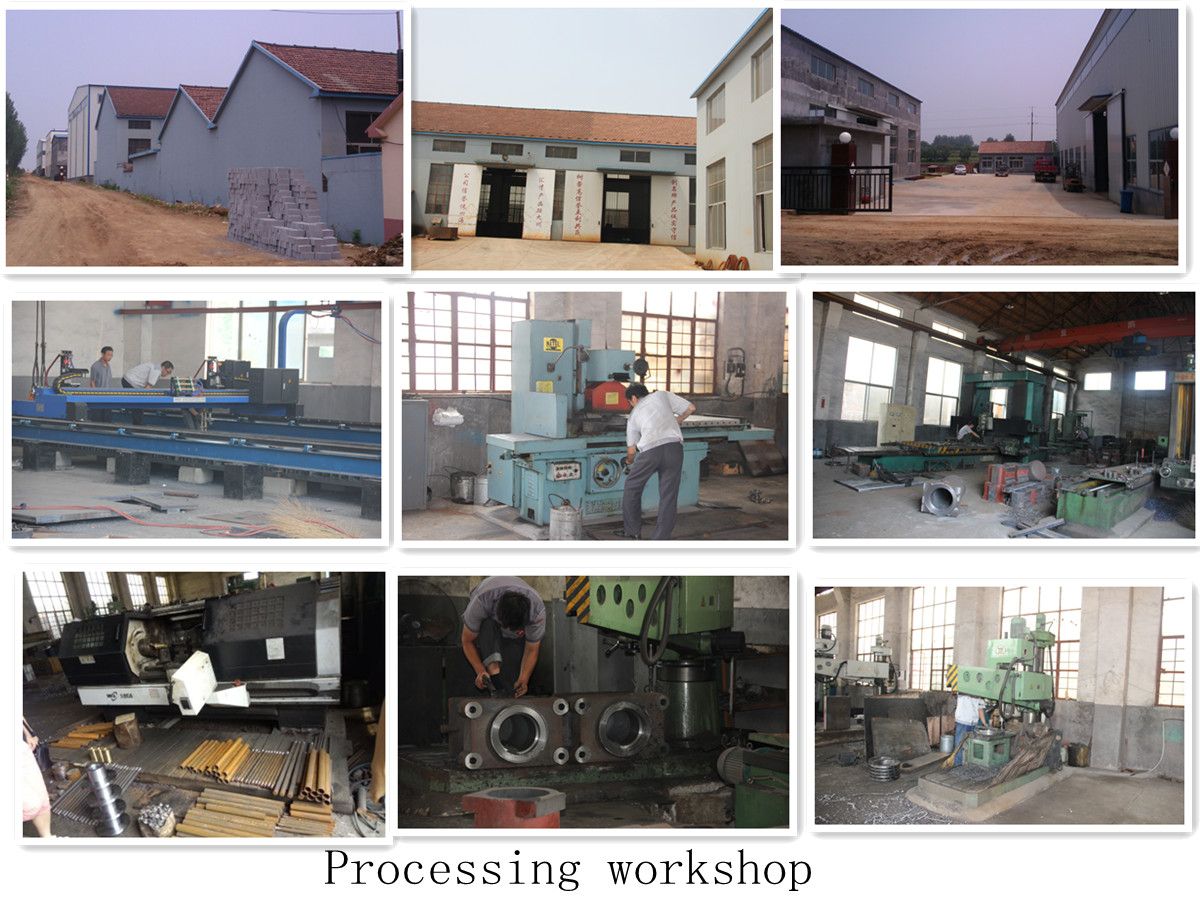

Qingdao Huicai Machine Manufacture Co., Ltd. is a joint-stock enterprise founded based on former Qingdao Jiaonan Huicai Rubber Machinery Factory. Founded in October 1996, it has over ten years' history in manufacturing rubber machinery. It is a specialized manufacturer integrating research and manufacture of various specifications of plate press, rubber mixing mill etc. Rubber machinery and tyre machinery. Due to its rich technical force, advanced manufacturing technology, complete test means and quality after-sales service, the company enjoys good reputation in this industry of China. Its products enjoy a very high reputation in the domestic and international market.
Management Concept: Survive by Quality, Develop by Credit, Innovate by Technology, Improve by precision.
Times Concept: People Oriented, Scientific Development, Advance with Times, Innovative creation.
Work Concept: Hardworking Practical, Conscientious and Meticulous.
Our company will continue to persist in the principle of "Win by Excellence, Credit first, Customer Oriented" and considerate and best after-sales service. We sincerely welcome worldwide customers come to our company for negotiation, and invite people with lofty ideals to join us to create great undertaking together.
