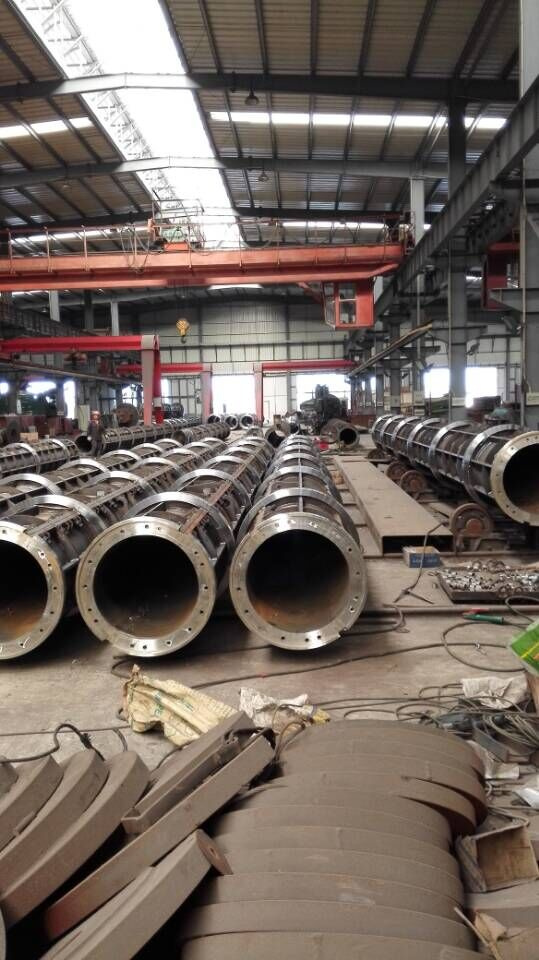

concrete spun pile steel mould is original in structure.Its position fixing is made by radial tongue-and-groove and axial taper pin. Manufactured stage by stage and binded by bolts at last, the mould is characteristic with the advantages of esay transportation, quick assembling, correct position fixing, good rigidity and smooth working.
Specifications of pile mould
Inside Ddameter of small end (mm) |
Wheelbase(mm) |
Wheel Diameter(mm) |
Length(mm) |
300 |
2000 |
510 |
7-11 |
350 |
2000 |
610 |
7-11 |
400 |
2000 |
610 |
7-12 |
450 |
2000 |
710 |
7-12 |
500 |
2000 |
710 |
7-12 |
550 |
2000 |
810 |
7-12 |
600 |
2000 |
810 |
7-15 |
800 |
2000 |
1010 |
7-15 |
1000 |
2000 |
1210 |
7-15 |
Our service
1.One year warranty under normal use and we supply maintenance for life for free.
2.24 hours technical support by Phone, E-mail, SKYPE, or Remote Control.
3.English operation manual, popular and easy to understand.
4.Free trainings to make sure you master the operation of cnc router.
Taizhou Amity Care International Co., Ltd has been regarded as the foreign trade department of "Hengyuan Building Material Machinery", all abroad (overseas) tasks and international business will be undertaken by "amity care ".
We are manufacturer of centrifugal spinning machine, mould, heading machine, cutting machine, cage welding machine, tension jack for pre-stress. Feeding machine for different capacity, weave welding machine, sheet cutting machine etc. We also can supply setting up a new factory full line service. We have already exported various kinds of concrete pile, pole and pipe concern making machines to overseas countries and regions such as Indonesia, parkistan, Vietnam, Myanmar, Korea, Malaysia, South African etc. Mideast, Southeastern Asia.
