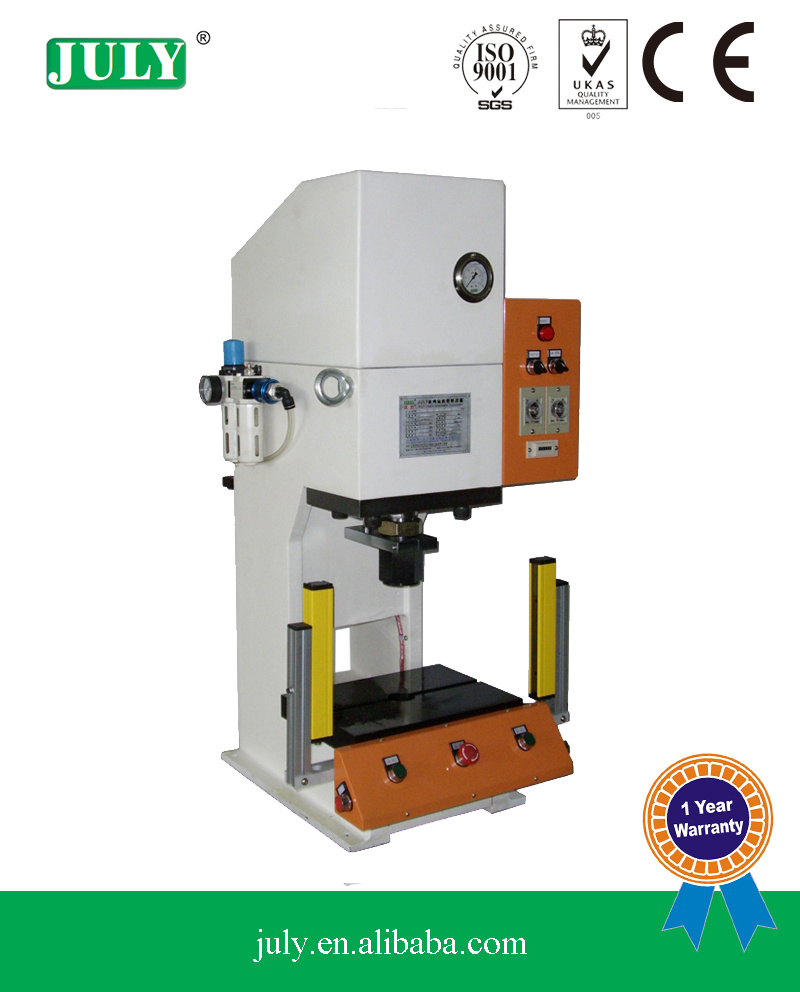

Processing Machines (JLYCZ)

Processing Machines

Characters of Machine Press

With compressed air as power source, easy to operate,
There is no noise and electricity consumption unlike the hydraulic system generated in standby to reduce production costs.
With the advantages of hydro pneumatic technology, works faster with high pressing force.
It is easy to adjust machines pressing force, only by regulating pressure of air source, you can get your required force.
C-frame solid structure, easy to operate, convenient to upload and download materials, that ensure efficient work.
Multifunctional use for indentation, punching, riveting, assembly, cutting, etc
Safe and humanness design, comfortable operation, suitable for long-term operation.
Different size working bed is customized, normally 650*550*700mm.
Easy adaptation to different tool and part heights because of simplistic height adjustment with angular gear.

Operating manual of press machines
To start machine by two hand buttons, time relay controls machine's return stroke.
Connected to power, in the "manual" state, operator can make machine do low force inching rise or inching drop action by pressing inching rise or inching drop buttons, so as to correct moulds.
In the "automatic" state, machine will start after operator put workpiece on work bed and press switches by two hands. During fast approach stroke, the upper moulds move to workpiece quickly and gently with low-noise, no impact, when upper moulds contact with workpiece machine will build up full power(power stroke) automatically from fast low force approach stroke until set-up time over, then time relay controls moulds returning automatically, so as to insure machine builds up enough pressing force required.
Speed of Fast approach stroke and returning stroke can be adjusted stepless, so as to meet different working frequency requirement.

Machine's maintenance system can process inlet compressed air so as to make it gas-water seperated and oil atomization, you can also adjust the pressure of inlet air source stepless, so that machine's output force is adjustable stepless.
With an emergency returning button, moulds can return immediately anytime.
There is a power stroke regulating valve, which can adjust pressing force of power stroke while machine's speed is not changed, in this way it can protect moulds and energy-saving.

Attentions of press machines
Adopt easy and safe return circuit design, meet safety requirements of press machines, if you need further security protection facilities, please contact us.
Each machine's output force is theoretical value, practical output force is 85% of heoretical value, when you use our machines please ensure supply stable air source.
Please take machine's open height into account, please calculate the height of your moulds and workpiece.
Hydro pneumatic press has oil tank, please fill oil between top and bottom oil line, please use ISO VG 68 anti-wear hydraulic oil. Hydraulic oil should be changed every year or 500000 cycles later, if oil is emulsified please change oil.
Please attention air source treatment's drainage function, if it is ineffective, please change new one.
When machine does not work for long time please release machine's pressure.

Application of Machine Press

1. Bending
2. Punching and connection
3. Riveting
4. Blanking
5. Stretch for forming
6. Stamping numbers and letters
7. Cutting
8. Assembling and alignment
9. Clamping and extrusion

Model	JLYCZ-63-3T	JLYCZ-80-5T	JLYCZ-125-10T	JLYCZ-125-15T
Max Height	235	235	230	230
Cylinder Specifications	Ø63*100*50mm	Ø80*100*50mm	Ø125*100*50mm	Ø125*100*50mm
Boosting Specifications	Ø125-L25-Q30	Ø125-L25-Q50	Ø125-L17-Q120	Ø125-L25-Q120
Power	AC220V,50Hz	AC220V,50Hz	AC220V,50Hz	AC220V,50Hz
Driving Pressure	0.4-0.7MPa	0.4-0.7MPa	0.4-0.7MPa	0.4-0.7MPa
Weight	180kg	200kg	320kg	320kg
Driving Pressure	Theoretical output	Theoretical output	Theoretical output	Theoretical output
0.4MPa	3100Kgf	5020Kgf	8340Kgf	12265Kgf
0.5MPa	3890Kgf	6280Kgf	10425Kgf	15330Kgf
0.6MPa	4670Kgf	7530Kgf	12510Kgf	18400Kgf
0.7Mpa	5450Kgf	8790Kgf	14500Kgf	21400Kgf
