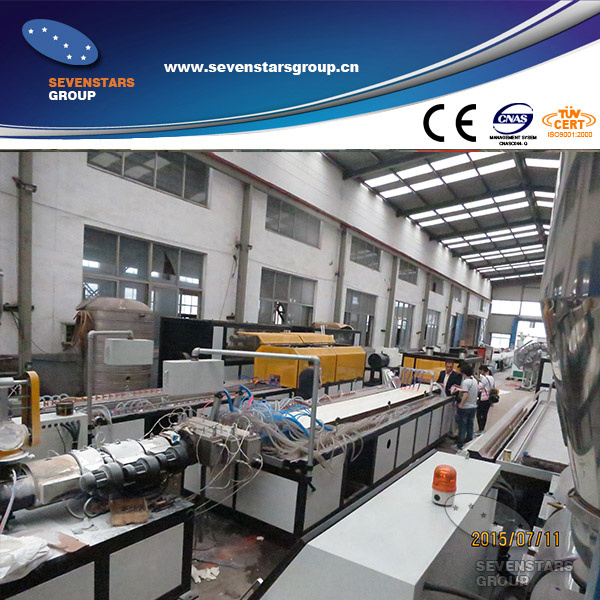

Professional manufacture PVC pinch plate ceiling making machine
Description of pvc windows and doors profiles line and PVC pinch plate making machine.
PVC window and door profile extrusion line also can for making wpc PROFILE
Equipped with specially dsigned screw, barrel, die-head and auxiliary machines, using advanced processing technique.
The profile and plate is a new environmental friendly product, material mixed plastic, wood and appropriate aditives.
It is widely used for product carrier, packaging box, frame of window & door, decorating board and other outdoor products
Any Profile and pinch plate that you can provide us the drawing we can do it
Description of pvc pinch plate making machines:
1.SJSZ series conical twin screw extruder is a kind of high effiency equipment for plastic extrusion.
2.It is mainly composed by force feeder,soft plasticization screw and barrel,high precision gearbox,exhaust system.
3.It has features of even mixing,better plasticization,stable working,high capacity,and it is suitable for produce PVC products from mixed powder.
4.With different mold and other auxiliary equipments,it can produce plastic pipe,board,sheet,granules and so on.
Technical parameters of pvc pinch plate making machines:
Model | SJSZ-51 | SJSZ-65 | SJSZ-80 | SJSZ-92 |
Screw diameter(mm) | 51/105 | 65/132 | 80/156 | 92/188 |
Max.speed of screw | 45 | 45 | 34.7 | 34.7 |
Main motor(kw) | 18.5 | 30/37 | 55 | 110 |
Capacity(kg/h) | 125 | 260 | 400 | 800 |
Center height(mm) | 1000 | 1000 | 1100 | 1200 |
Net weight(kg) | 3000 | 4000 | 5500 | 8000 |
Dimension(m) | 3.6x1.1x2.1 | 4.2x1.5x2.4 | 4.7x1.5x2.4 | 6x1.6x2.5 |
1. SJSZ65/132 conical twin screw extruder(SJSZ51/105,SJSZ55/110) | one set |
2.Die mould | one set |
3.Vacuum calibration table | one set |
4.Haul-off machine | one set |
5.Cutting uint | one set |
6.Stacker | one set |
7.Electric cabinet | one set |
8.Spare parts list | one set |
Zhangjiagang Sevenstars Machinery Co., Ltd. is a professional plastic machinery suppliers located in Zhangjiagang city, China. A beautiful and famouse city for all kinds of plastic machine.
We specialize in the development, design, manufacture and marketing of various plastic machines. Such as
PE pipe extrusion line,
UPVC window door profile extrusion line,
WPC profile extrusion line,
UPVC ceiling wall panel extrusion line,
WPC foam board production line,
PP plastic film crushing washing line,
PET bottle crushing washing line,
PE pelletizing granulating line,
Single shaft shredder,
Double shaft shredder,
Plastic crusher and so on...
As one of the reliable supplier in China, We have keeping improved our management & technology level. Up to now, we has earned good reputation in domestic and abroad market. And our products have been exported to many countrys, like Mexico, America, Argentina, Chile, Brazil, Iran, Saudi Arabia. Thailand, Malyasia, Indonisa, Russia, India and so on.
'Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buid up a professional after-sale services team with rich-experienced in machine commissioning and installation. Each year we will attend China plastic exhibtion, and we have got the CE certificate for our machine
We believe our quality and service will bring success to each customer.
Welcome final users and distributors from all the world contact with us and create success
With your support and our effort, we deeply believe that the tomorrow of sevenstar machinery will be much better.
