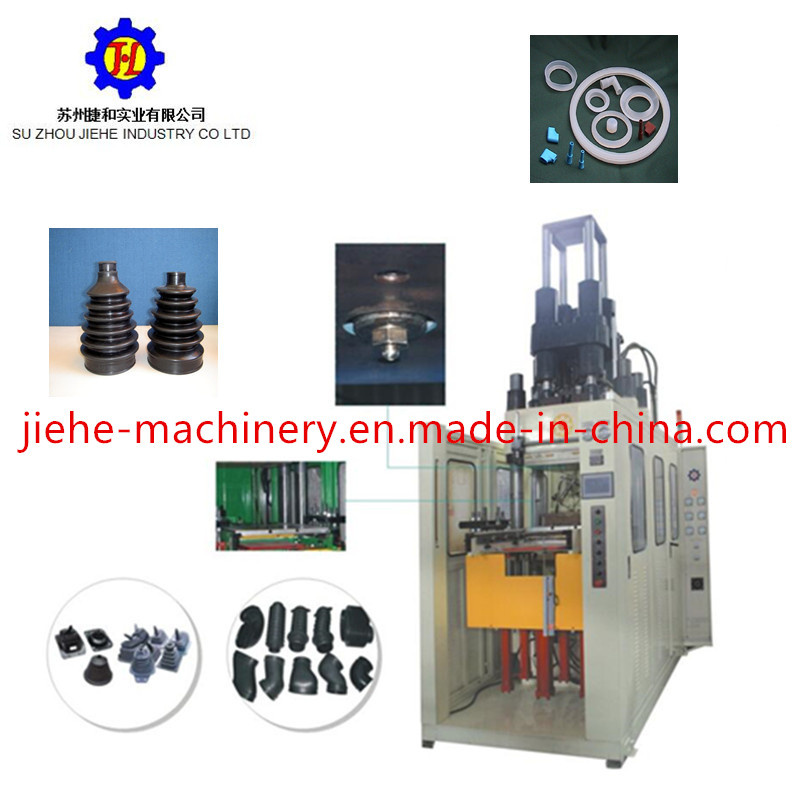

Vertical Type Automatic Rubber Injection Molding Machine
Characteristics of the machine:
Feeding device: feeding with our patent screw barrel, no feeding discontinuity, exhaust safely, improve the quality of the product and convenient to replace the material and clean, apply to different kinds and hardness of material.
Anti-kickback device:Specially designed check valve, no interrupt of feeding, no waste of material, no retune of the gum, ensure the precision of injection volume.
injection device:Use fractionated injection technology, adjust the speed and pressure optionally, no gum leakage and meet the process requiment of different kinds of gum to ensure the quality of product.
oil control device:Two-way oil warm systerm sdjusted by PID separately, which ensure the balance of oil temperature and the precision of the machine.
Advantages:
1.Every operations running through the touching screen, safe and simple
2.A special design of two-states feeding to prevent dead material left in the injection system
3.calculate and control injection volum precisely through an optical rule made in Germany
4.Adopting the imported vacuum pump to ensure the quality of product
5.A Safety grating has been used to ensure the security of your operators while operating
6.A self-adjusting oil-way system to ensure the stable performance and reduce noise
Technical parameters:
Type | 200Ton | 300Ton | 400Ton |
| injection cylinder Dia.(mm) | 75 | 90 | 110 |
| injection pressure(kg/cm3) | 1650 | 1900 | 2200 |
| thereotical injection volume (cm3) | 2000 | 3000 | 4000 |
| screw dia(mm) | 40 | 45 | 50 |
| srew speed(rpm) | 0-90 | 0-120 | 0-120 |
| Clamping force(kn) | 2000 | 3000 | 4000 |
| mold opening stroke(mm) | 380 | 450 | 550 |
| Heating plate size(mm) | 560*560 | 700*700 | 850*850 |
| piston diameter(mm) | 355 | 450 | 500 |
| Injection volume(cc) | 1500/2000 | 3000 | 4000 |
| Horse power(hp) | 15 | 20 | 20 |
| Single shaft thermal electricity(KW) | 16 | 18 | 28 |
| Total power(KW) | 27 | 33 | 44 |
| machine weight(ton) | 6 | 9 | 11.5 |
| dimension:L*W*H(MM) | 1850*2900*3750 | 2200*3300*4200 | 2600*3600*4500 |
Suitable manufacturer:
Electronic industry,electric buttons, automobile-purpose rubber, rubber for common industries and household purposes,bottle blocks,medical rubber,trademark rubber,diamond blades tool, military&defense industry toy industry.
A good start comes from the high quality. Suzhou Jiehe attaches great importance to the details of the whole process of production and it aims to offering the highest quality to our customers. Our company specializes in producing rubber injection molding machine, vacuum hydraulic machine, plate rubber vulcanization machine, performing machine, framework oil seal machine, silicon cutting machine and so on.
Tank Ren (Sales Manager)
Suzhou Jiehe Industry Co., Ltd
Mobile:86-15380888960
Suzhou Jiehe Industry Co., Ltd is located at Xiangcheng District, Suzhou, Jiangsu, China and covers an area of 12000 square meters. Our company was founded by a group of professional engineer who is well experienced in rubber manufacturing machinery. To meet our customers' requirements, we have been adhering to design innovation, quality first and also provide custom made service.
A good start comes from the high quality. Suzhou Jiehe attaches great importance to the details of the whole process of production and it aims to offering the highest quality to our customers. Our company specializes in producing rubber injection molding machine, vacuum hydraulic machine, plate rubber vulcanization machine, performing machine, framework oil seal machine, silicon cutting machine and so on.
Our after-sale service network is always at your side and it also has service hotline to tackle with your complaint and feedback timely. We also supports technical service in terms of the problem results from the machine. We insist that our products are the best choice to the manufacturers who operate rubber electronic parts, auto parts, conductive rubber, seal type, sports equipment, medical equipment and various containers.
We will constantly follow the policy of taking advanced innovation to promote development, brand strategy and fist class service. And we will try our best to satisfy our customers.
Our products:
Suitable For:
O-rings, Gasket, Packings, Keypad, Roller, Pharmaceutical stopper, Piston of syringe, Automotive parts, Anti-vibration products, Silicone product and many other rubber articles.
Suitable manufacturer:
Electronic industry, electric buttons, automobile-purpose rubber, rubber for common industries and household purposes, bottle blocks, medical rubber, trademark rubber, diamond blades tool, military&defense industry toy industry.
