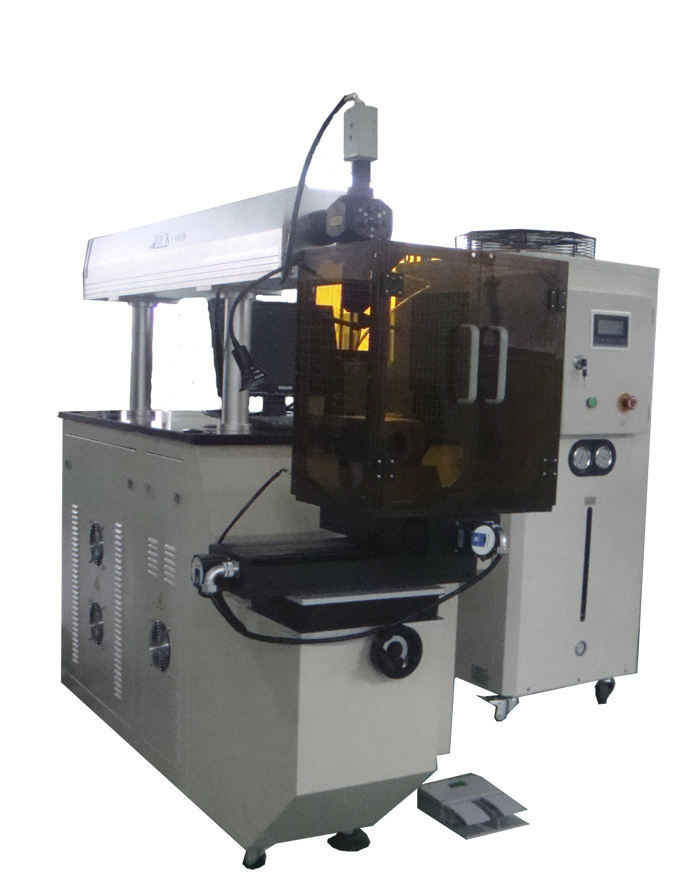

Laser welding machine with safety shelter main characteristics:
1. This laser welding machine is combining with acrylic safety shelter, effectively protect our eyes and bodies from the laser radiation.
2. Golden plating laser cavity, better quality than traditional ceramic laser cavity, easy and convenient to change the xenon lamps, no need to take away the half resonator mirror, reducing the trouble.
3. X, Y axis is driven and moved by electric motor, with great moving precision. In the vertical direction, the ball screw drives the laser welding head up and down moving in a certain range.
4. The standard working table size is 300mm*200mm.
Laser welding machine can weld kinds of metal materials: Stainless steel, carbon steel, mild steel, titanium, copper, alloy, etc.
|
Model |
QL-T300 |
|
Max. laser power |
300W |
|
Laser working medium |
Nd: YAG |
|
Laser wavelength |
1064nm |
|
Mono-pulse max laser power |
60J |
|
Feedback type |
Current minus feedback |
|
Single pulse width |
0.1ms-20ms |
|
Welding depth |
0.1-3mm (Depending on materials) |
|
Pulse frequency |
1-200HZ |
|
Positioning |
Red light (optional CCD) |
|
Cooling |
Water cooling |
|
Power consumption |
12KW |
|
Power supply |
Three phase 380V/50HZ |
|
Host dimension(W*D*H) |
900mm*1700mm*1600mm |
|
Chiller dimension(W*D*H) |
600mm*880mm*1450mm |
