Working conditions:
Working area: inside
Working humidity: under 85%
Working temperature: O-40ºC
Working Power: 3 phases 380V (-10%,+5%) 50Hz
Circulating cooling water≤40ºC Pressure≥0.4Mpa
Main features of this machine:

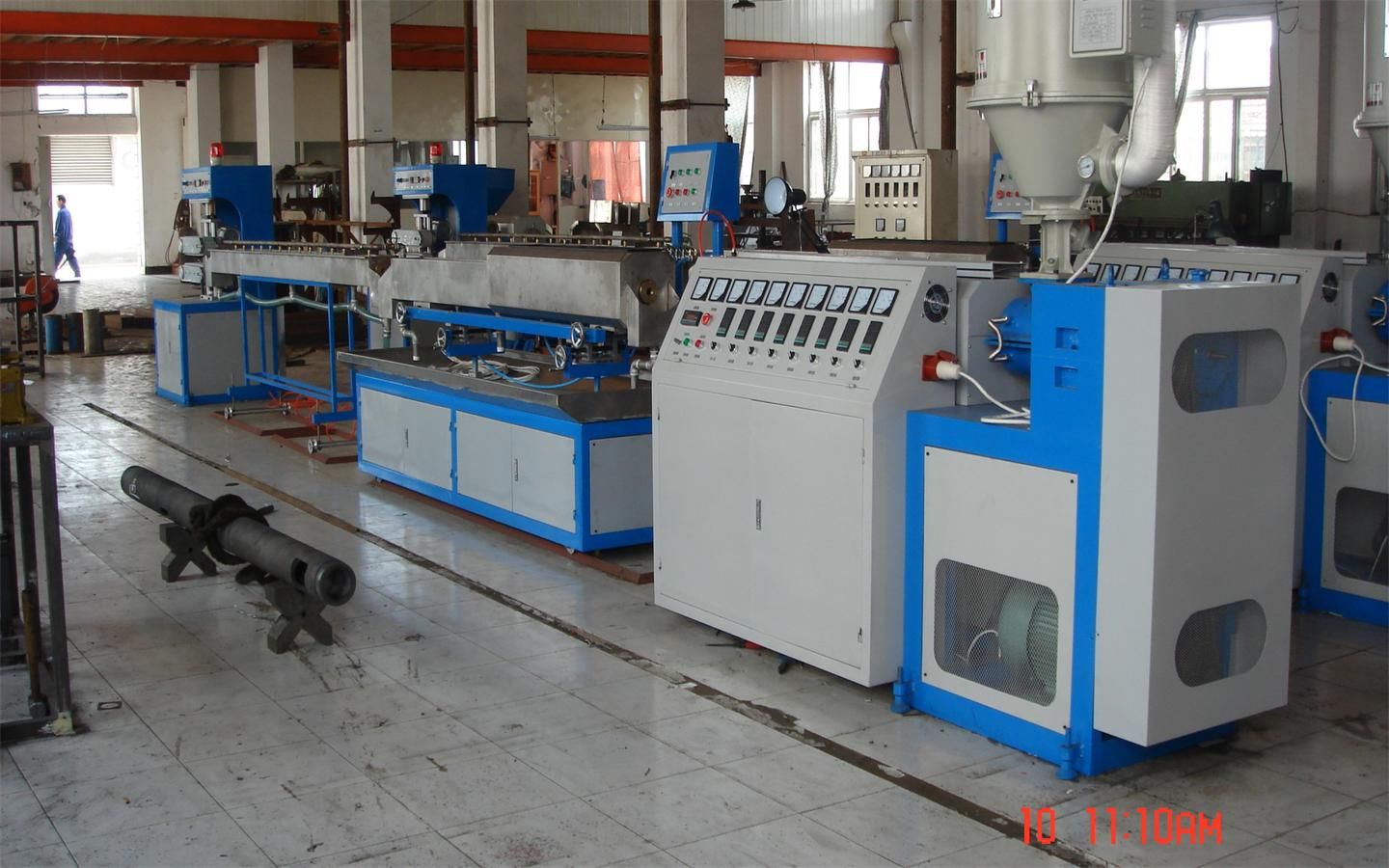

It is equipped with extruder , mould ,vacuum cooling tank ,haul off and winder ,which is to produce various specification soft tube and abnormal soft profile according to different material conditions and product characters
Main equipments of production line are as below:
1.1 One single screw extrusion machine SJ65/30 one set
Screw diameter: 65mm
Screw material :38CrMoAiA
Nitriding Layer Thickness: 0.4~0.7mm
Rotation rate(r/min): 8-80r/min
1.2 Barrel:
Heating mode: Foundry Aluminum Heater
Heating area: 6 area,
heating power: 30KW
Cooling area:6 area x180w(cooling fan),
Screw hard chromium plating processing
Material:38crMnAlA surface with nitrogen treatment,
Nitrogen layer thickness: 0.4~0.7mm
1.3. Drive and reduction system
Main drive motor power: 30KW Nanjing brand
Main motor rotate speed: 30-1400r/min
Type of gearbox:Gear speed lower brand is from Hangzhou
1.4 Extrusion speed:40~90kg/h
1.5 Machine weight:2500kg
1.6 Machine size: (LxWxH ) 4X1.4X1.3 meters
1.7 Other electrical equipments:
Temperature meter: Japan RKC ;
Contactor: solid state relay
Low-voltage electrical: China famous brand CHINT
Frequency Converter: Taiwan brand
1.8. with one set of mould which make according to your requirement
1.9 with one set of hopper type drying machine with automatic feeder
2.0 Inside with motor frame,distribution box
2.1 Coiling (rolling) machine for final products- tubes
For more information, pls contact with us freely. We can make machine according to your special requirements.
