Specifications
1.High precision,wide application
2.Godd quality
3.Easy operateion
4.Fast delivery

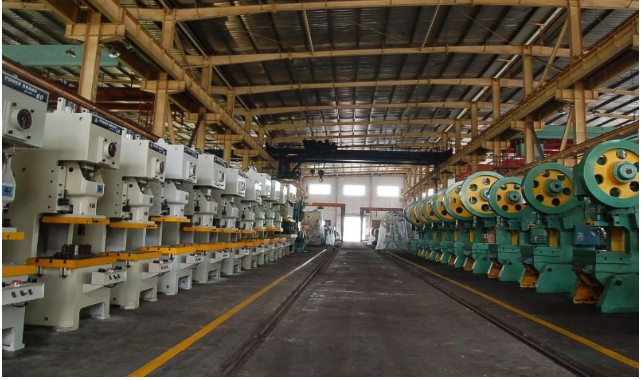

J23 Mechanical press/eccentrc press machine/punch machine/power press
The Machine of Whole structure and Characteristics:
J23 Series Presses is one of the new generation of plate process and developed by SXZG,The press is for cutting, punching, blanking, bending and light stretching work
1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application.
2. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful.
3. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
1. Transmission control and brake systems:
1. Use the combine of dry friction clutch and brake pneumatic,rigid interlocking,reliable piece of friction material semi-metallic friction material SMFM-88,less pollution, long life. With the transfer torque, rotational inertia is small, smooth transmission, flexible operation, convenient of installation and maintenance
2. Die height adjustment of slider with manual mode, the scale display. Extended by four triangular rail, easy adjustment.
3.Use double safety valve to ensure the accurate implementation of the clutch instruction.
4. Electrical control is installed PLC, 8 group cam controller, reliable action.
5. Electrical control adopts Omron PLC for centralized control, improved machine reliability
6. Proximity switch with 8 groups consisting of Schneider cam controller, reliable synchronization detection and monitoring.
7. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.
8. Can move the ram up slowly,which allows the operator to control Mold adjustment conveniently.
2. Ram adjustment and Structure:
1. Adjustable stroke machine, slide stroke to achieve a certain level within the range of adjustable, body steel plate welded structure, the whole body is tempered, use the secondary transmission, the transmission part of the crankshaft horizontal Placement, flywheel and gear are the external open style, easy maintenance.
2. Slider is a cast box structure and rigid. Collapse of the slider-style installation of pressure overload protection device, simple structure,if the slider overload, the fuse collapse is damaged, then protect the machine tool and die from damage.
3. Electrical system and the safety interlock:
1. Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.
2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
3.The machine by the European Union CE certification and ISO quality system certification
ITEMS | UNIT | J23-6.3 | J23-10 | J23-16 | J23-25 | J23-35 | J23-40 | J23-63 | J23-80 | J23-100 |
Nominal capacity | KN | 63 | 100 | 160 | 250 | 350 | 400 | 630 | 800 | 1000 |
Nominal stroke | mm | 2 | 2 | 2 | 2.5 | 3.5 | 6 | 6 | 7 | 7 |
Slide stroke length | mm | 35 | 45 | 55 | 65 | 80 | 90 | 110 | 120 | 140 |
Stroke times per minute | times | 170 | 145 | 125 | 55 | 50 | 45 | 50 | 38 | 38 |
Max. die set height | mm | 150 | 180 | 220 | 270 | 290 | 320 | 360 | 440 | 480 |
Die height adjustment | mm | 30 | 35 | 45 | 55 | 60 | 65 | 80 | 90 | 100 |
Throat depth | mm | 110 | 130 | 160 | 200 | 220 | 250 | 260 | 350 | 380 |
Distance between uprights | mm | 150 | 180 | 220 | 270 | 280 | 340 | 350 | 450 | 560 |
Slide bottom size | Left to right | mm | 140 | 170 | 200 | 250 | 250 | 300 | 300 | 430 | 540 |
Front to back | mm | 120 | 150 | 180 | 220 | 220 | 260 | 260 | 360 | 480 |
Stemhole size | Diameter | mm | 30 | 30 | 40 | 40 | 40 | 50 | 50 | 60 | 60 |
Depth | mm | 55 | 55 | 60 | 60 | 60 | 70 | 70 | 75 | 75 |
Bolster size | Left to right | mm | 310 | 370 | 450 | 560 | 610 | 700 | 760 | 950 | 1080 |
Front to back | mm | 200 | 240 | 300 | 370 | 400 | 460 | 480 | 650 | 710 |
Thickness | mm | 30 | 35 | 40 | 50 | 60 | 65 | 80 | 100 | 120 |
Table hole diameter | mm | 60 | 80 | 100 | 120 | 130 | 150 | 180 | 200 | 220 |
Max. inclinable angle | ° | 45 | 35 | 35 | 30 | 30 | 30 | 20 | 20 | 15 |
Bolster surface height | mm | 750 | 730 | 750 | 800 | 815 | 850 | 810 | 850 | 850 |
Over all dimensions | Left to right | mm | 620 | 665 | 847 | 950 | 1058 | 1335 | 1350 | 1715 | 1790 |
Front to back | mm | 780 | 900 | 1150 | 1345 | 1460 | 1721 | 1810 | 2060 | 2404 |
Height | mm | 1503 | 1658 | 1910 | 2130 | 2225 | 2488 | 2740 | 3290 | 3625 |
Distance between foundation bolts | Left to right | mm | 314 | 394 | 450 | 600 | 650 | 750 | 850 | 1010 | 1130 |
Front to back | mm | 530 | 610 | 780 | 920 | 1020 | 1060 | 1180 | 1360 | 1550 |
Motor power | kw | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 11 |
Weight | kg | 400 | 576 | 1085 | 1780 | 2650 | 3540 | 4550 | 7390 | 10800 |
BLIN MACHINERY Co., Ltd. (China) is a high reputed professional CNC Machine Tool manufacturer and exporter, main products are CNC Lathe, CNC Milling Machine(CNC Machining Center). Has total three production bases in China with more than 35 years history for machine tools manufacturing. Set overseas sales center in NINGBO city, include warehouse& showroom covered area 1500 square meter.
Besides our self-manufactured machines, we also cooperating closely with a number of leading machine builders in China for long term. We may provide nearly all types regular and special machines which customers need.
Focusing on international market, BLIN has placed the priority on both product quality and service. Our quality program starts as soon as customer's order is placed, and will follow through every stage including manufacturing, assembly, final testing, packing, and shipment to ensure the quality and spec. Strictly as customer's requirements. We promise every provided machine will be strictly tested and be ready to use before delivery.
By now, we already set up stable and long term business with customers from most countries in the world, such as USA, Mexico, Colombia, Ecuador, Argentina, Thailand, Indonesia, AUTRALIA, Iran, India, Russia, Germany, Poland, Spain, Finland, Netherlands etc. Our many models are hot sales in overseas market. We are sincerely prepared to co-operate with customers all over the world for mutual benefit and progress.
We look forward to hearing from you at any time!
