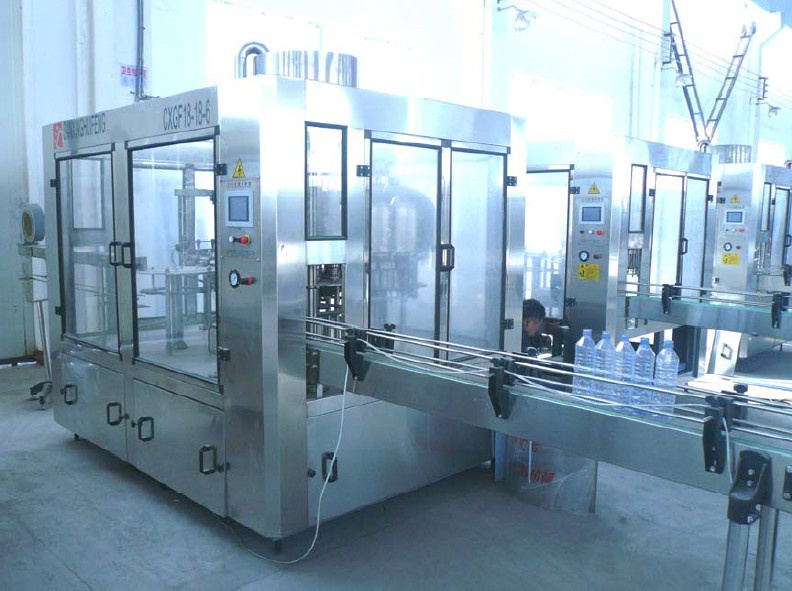

Pure water filling machine
Description:This 3-in-1 machine for PET bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of mineral water.
Features:(1) This bottling machine is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water, wine and so on.
(2) Bottle washing, filling and capping are achieved in one machine.
(3) The contact time is shorten between material and the outside, and improved the health conditions, production capacity and economic benefits.
(4) CGGF series bottling machine adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.
(5) The main machine adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.our Services Pre-service1. Guiding customers to choose the most suitable machine and give our suggestion.2. Provide the technical flow chart, machine photo, even machine vedio3. Specially designed for customer4. Help customer design the workshop layout On-sale service1. Tell customer about the production from time to time2. Do preparation for customer checking at any time.3. Help customer clean goods After-sales service1. Oversea install an training2. Free maintenance and replacements of spare parts for free in 12 months3. Engineers available to service overseas4. Provide technical supportWelcome you consult me for more details.
Model: |
CXGF
14/12/5 |
CXGF
16/16/6 |
CXGF
18/18/6 |
CXGF
24/24/8 |
CXGF
32/32/10 |
CXGF
40/40/12 |
Capacity:
500ml(b/h) |
3000 |
5000 |
7000 |
10000 |
14000 |
18000 |
Suitable
Bottle: |
150-340 (mm) |
Suitable
Cap: |
50-110 mm |
Filling
Pressure: |
0.2-0.3 (Mpa) |
Power(kw): |
2.2 |
3.84 |
3.84 |
5.6 |
6.3 |
7.3 |
Size(mm): |
2400×1670×2350 |
2470×1970×2350 |
2865×2170×2350 |
3700×2570×2350 |
3800×2950×2400 |
4500×3400×2400 |
Weight(kg): |
2500 |
3000 |
4000 |
5000 |
6000 |
8000 |
We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry and automatic blow molding machine in China.
For beverage machine, our Main products including:
The capacity of 5000-- 40000 BPH for HOT FILLING, MID-TEMP FILLING, ASEPTIC COLD FILLING LINES.
The capacity of 5000-- 40000 BPH for MINERAL WATER AND PURIFIED WATER PRODUCING LINE.
The capacity of 5000 -- 36000 BPH for CARBONATED BEVERAGE PRODUCTING LINE.
The capacity of 300 -- 2000 BPH for 3 gallon OR 5 gallon BARREL FILLING PRODUCTING LINE.
The capacity of 8000 BPH for the volume of 200ml to 500ml in MILK PACKAGING.
All kinds of WATER TREARMENT EQUIPMENT.
PET perform INJECT and BLOWING-STRETCHING MACHINE.
Mould plastics machine
Turn-key projects
Flat and tube UHT device, and CIP system.
All the products are sold well in every province and city of the whole country and also exported to several countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
