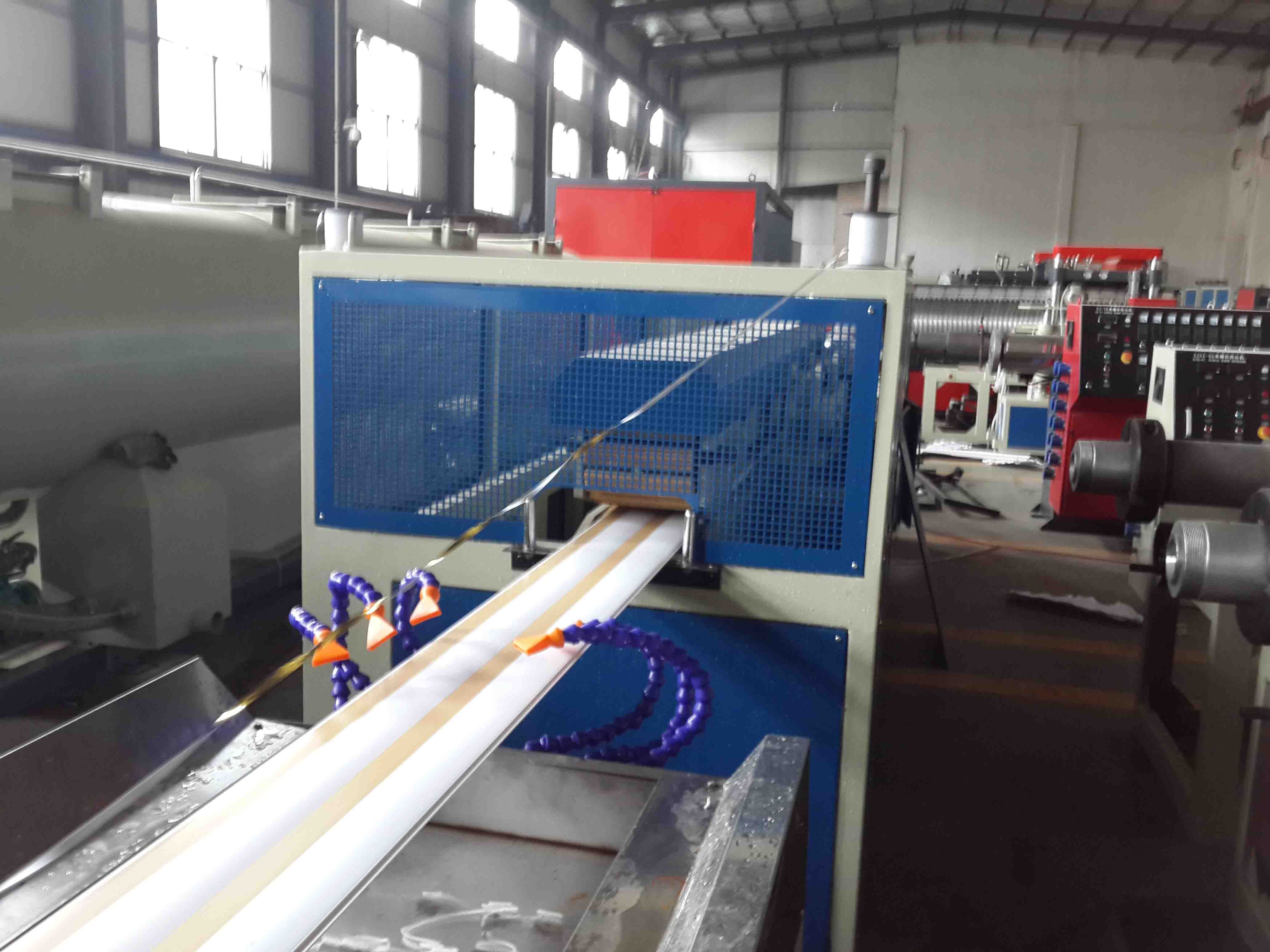

PVC ceiling decoration profile machine This production line adopts international technology, uses PE, PP, PVC, PS or other plastics compounding with nature fiber powder as the raw material, employs high efficiency conical twin screw extruder ,mould .vacuum calibration table ,tractor and cutter. The profile products are popularly used as the building board, partition wall aboard, plank on storage rack and furniture board, etc.
|
Model |
YF180 |
YF240 |
YF300 |
YF400 |
YF500 |
YF600 |
YF800 |
YF1000 |
YF1250 |
|
Max. width of product(mm) |
180 |
240 |
300 |
400 |
500 |
600 |
800 |
1000 |
1250 |
|
Extruder model |
SJSZ55/110 |
SJSZ65/132 |
SJSZ65/132 |
SJSZ65/132 |
SJSZ80/156 |
SJZ80/156 |
SJZ80/156 |
SJZ92/188 |
SJZ92/188 |
|
Max. extrusion capacity(kg/h) |
150 |
250 |
250 |
250 |
360 |
360 |
360 |
600 |
600 |
|
Extruder power(kw) |
22 |
30/37 |
30/37 |
30/37 |
55 |
55 |
55 |
110 |
132 |
|
Cooling water(M 3 /h) |
5 |
7 |
7 |
8 |
10 |
12 |
13 |
15 |
18 |
|
Compressed air(M 3 /min) |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
0.5 |
0.6 |
0 |
Jiangsu Lianshun Machinery Co., Ltd., specializes in producing plastic machines, including pipe machines, sheet machines, profiled machines, recycling machines and auxiliary machines.
After more than four years development, the technologies are developed and the functions of machines are stable, especially for plastic pipe production lines and recycling machines. The main products of our company have been exported to different countries and have a good reputation.
We welcome customers from all over the world to cooperate with us. Please do not hesitate to contact us if you have further inquiry. We look forward to hearring from you soon in order to provide you with our best of service.
