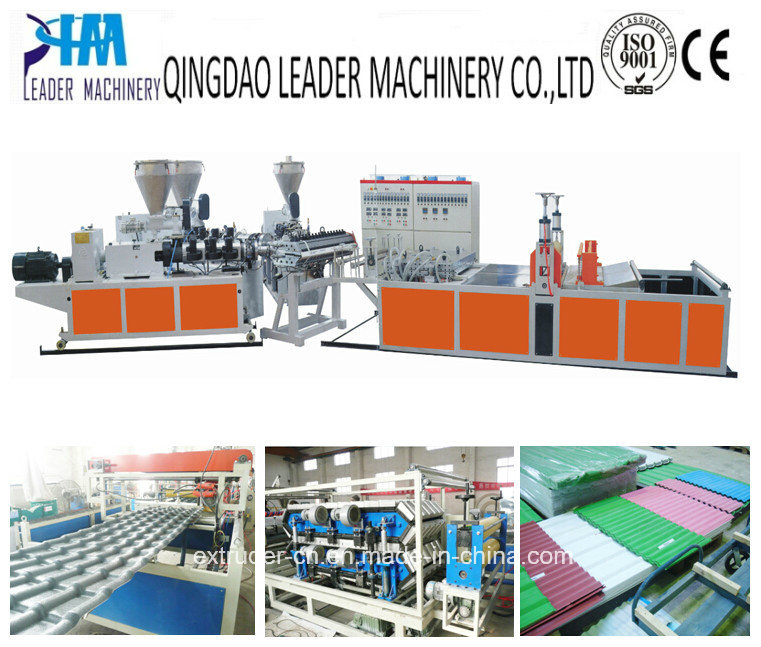

PVC Corrugated Roofing Sheet Making Machine
PART 1: INTRODUCTION AND APPLICATION:
Wave plate has an excellent corrosion resistance, weather resistance, easy processing, low cost and many other characteristicsm abd is widely used for roof material of workshops, warehouses.
PART 2: THIS LINE CONSISTS OF:
1. Extruder: Single-screw extruder PP / PE / PC, conical twin-screw extruder PVC.
2. T die head: The hanger-type flow structure, a suitable compression ratio to ensure the stability of material flow evenly.
3. Calibrating molds: Rational design, the unique design of the cooling flow to ensure the accuracy of products,
4. Hauling machine: Roller traction, using high quality NBR rubber roller, pneumatic adjustment, and frequency speed adjustment.
5. Cutting Machine: Knife cutting, fast, good accuracy.
PART 3: SHEET SPECIFICATION:
1. Width: 720, 880, 1040mm
2. Thickness: 1-4mm
3. Can be co-exrtusion ABA, AB, ABC
PART 4: PRODCUTION FLOWS:
High speed mixer--conical twin screw extruder--die head--calibrating board--cooling rollers--haul off--guillotine or coiler --stacker
PART 5 MAIN TECHNICAL DATA:
| Extruder model | SJSZ80/156 + SJ65/30 |
| Capacity | 350kg/h+50kg/h |
| Sheet specifications | Width: 720/880/1040mm
Wave pitch:160mm
Wave length:220mm
Wave height:30mm
Thickness:1-3mm |
| Emboss rollers | 1400mm*Φ300mm |
| T-die head | JC-Times brand |
| Corrugation forming machine max haul off power | 20KN |
| Haul off speed | 0.3-5m/min |
| Cutting machine | Pneumatic saw cutting |
| Stacker | 6m |
| Other accessory machines | High speed mixer, plastic crusher, plastic pulverizer etc |
Qingdao Leader Machinery Co., Ltd is an experienced and professional manufacturer of plastic extruder and extrusion lines for years. We can produce various equipments, including plastic pipe extrusion lines, plastic profile extrusion lines, plastic sheet/plate extrusion lines and also some recycling and pelletizing machines etc. According to different requirement s of each customer, our engineers will provide most professional mechanical design and manufacturing, and the complete processing technology to meet their special application requirements.
Since foundation, we have been dedicated to study and research new products, new processing technology to satisfy the updating requirements of the world, and also we continuously digest and learn from the world advanced science technology and leading process. We are always standing firm ahead domestically in the plastic-extruder field as the pioneering representative. With years of experience in design and fabrication, we newly developed LM series extrusion lines, which realized the high efficiency extrusion idea "high precision control, high efficiency production, high quality production".
Through ISO9001-2008 quality certification, CE certification, SGS certification and GOST certification for Commonwealth of Independent States, strict following the standards of modern enterprise, the overall strengthening and the effective management of production, procurement, technology, and after sale service. We win the market by high quality products and services. At present, products have been exported to the US, Korea, Russia, Ukraine, Kazakhstan, Hungary, UAE, Turkey, Iran, Saudi Arabia, South Africa, Libya, Algeria, India, Nepal, Bangladesh, Mexico, Argentina, Chile and other countries and regions, praised by customers.
