Feature & Function:

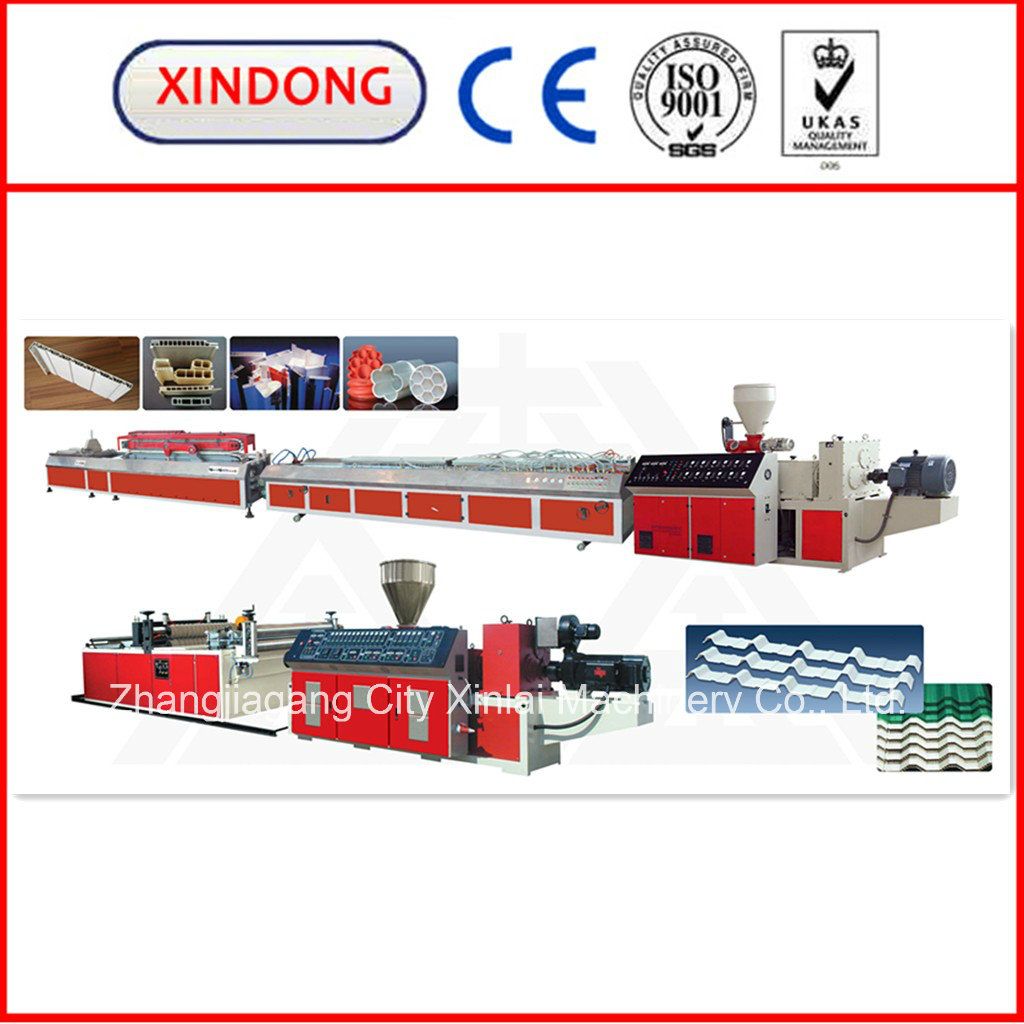

Plastic profile extrusion line is mainly used to produce PVC, PP and other material door, window, midheaven board, special section profile and so on. The line is composed by extruder, mould, vacuum calibrator, haul off machine, cutter andstacker. It can produce different sections and thickness of profile by changing the type of machine and mould.
|
()\shaping table model number |
ZDY240Tvacuum shaping table |
|
1\vacuum air pump number |
4 |
|
2\max vacuum air level |
-0.090Mpa |
|
3\shaping table length |
6000 |
4\models fixed
|
320mm |
|
5 vacuum air pump connector number |
32pcs |
|
6\max sucking rate |
180m3/h |
|
7\vacuum air pump motor |
2×5.5KW,
1×4KW(jade ring) |
|
8\water pump motor |
4KW+2.2KW(jade ring) |
|
9\sink Material |
stainless steel |
|
10\siamese coupling number |
32pcs |
|
11\track surface height |
890~1000mm |
|
12shaping table construction |
bendway |
|
13\shaping table Material |
stainless steel |
|
14\vacuum air pump |
ningbo |
|
()\haul off cutting drugger model |
QY-QGY240T haul off cutting drugger |
|
1\max tractive force |
35000N |
|
2\max pulling speed |
0.3~4m/min |
|
3\track width |
240mm |
|
4\track active length |
2350mm |
|
5\haul off drugger number and motor |
2×1.5KW (ABBtransducer) |
|
6\cutting section point of saw bit |
down and up cut |
|
7\dust exhaust apparatus |
built-in |
|
8\stressed by air |
0.5Mpa |
|
9\max cutting inches(width×height) |
240×65mm |
|
10\machine center height |
1050±50mm |
|
()\FBY300 panel turnover machine |
|
|
1\Unloading-panel power |
cylinder as power |
|
2.Unloading-panel material |
stainless steel |
|
()environmental challenge |
|
|
1\working temperature |
0~60 degree centigrade |
|
2\water temperature |
15 degree centigrade |
We, Zhangjiagang City Xinlai Machinery Co., Ltd, are professional manufacturer for plastic machinery located in Zhangjiagang, which is 2 hours away from Shanghai.
Our main products are:
1. Plastic extruder
2. PE/PP/PVC pipe production line 3
. PVC profile extrusion line
4. PE/PP/PVC/PET recycling granulation line
5 assistant machines, like shredder, crusher, pulverizer, loader, mixer, dryer, winder, belling machine, mold, printer, etc.
We are a manufactory gathered with designing, developing, producing and selling. By many years of concentrated business and combined with the practical experience, our products form serialization and standardizatio granually. Now we own our brands are "XINLAI"& "XINDONG", and products have passed CE & SGS certificate.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market, like South-East Asia, Middle-Ease, Africa, South America, etc. We wish to cooperate with you to create a bright future and mutual benefit.
Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
