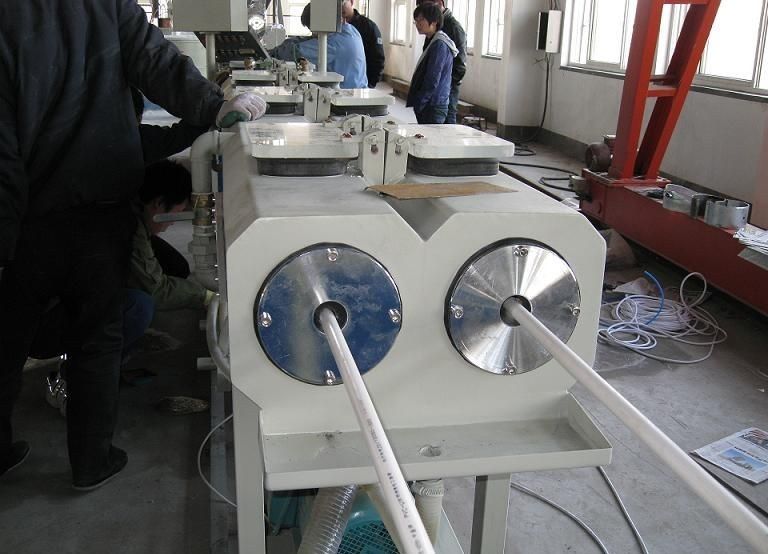

PVC Double Pipe Extrusion Line (16-63mm)

PVC Double Pipe Extrusion Line (16-63mm)
Price: US $ 30000-40000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
---Product Description
LPCG-63 PVC Twin Pipe Production Line Machine is a novel one launched by our company on the
Basis of wide investigation into users and application of advanced foreign technology. It's a collection
Of advancement, reliability and practicability, especially applicable to manufacture various of excellent
Quality UPVC pipes.

---PVC Double Pipe Extrusion line characters:

1. Two pipes extruded simultaneously and controlled respectively. One ceases and another goes on.
2. A combination of drawiing and cutting machine with fine appearance and accurate synchroniztion.
3. Applicable pipe diameter ranges from 16-63mm.

---Components of PVC Double Pipe Extrusion line
1. Automatic Feeding Machine (loader, charger) 1 set
2. Conical Twin Screw Extruder 1 set
3. Die Heads/Mould According to Customer's Need
4. Double Vacuum Calibrating Tank 1 set
5. Double Hauling-off Machine 1 set
6. Double Cutting Machine 1 set
7. Double Stacker 1 set

---Optional Devices or Machine
1. SRL-Z High Speed Hot and Cold Mixing Machine 1 set
2. SWP-Plastic Crusher 1 set
3. SMP-Plastic Milling Machine/Pulverizer 1 set
4. Printing Machine 1 set

---Main Technical Data
*Extruder Model JD-SJSZ55/110
*Diameter Range 16-63mm
*Line Speed 1-12m/min
*Capacity 150kg/h
*Installed Power 45KW
*Length 20m
*Weight 17000KG
Name Description/Model PVCG63
      Extruder Model JD-SJSZ63
Dimension, mm 3450*1450*2250
Capacity 80-250kg/h
PipeDiameterRange, mm 16-63
Total Power 64kw
  Vacuum Calibrating Tank Dimension, mm 6400*1020*1200
Total Power 13KW
    Haul off and Cutting Machine Dimension, mm 4100*1400*1650
Haul-off speed 0.1-12m/min
Haul-off force 15000*2 N
Total Power 10.4
Pipe Length, m 4-6
Prod Model: SJSZ-51/105
Markets: South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Extruder Type: Conical Twin Screw Extruder
Extruder Model: Jd-Sjsz55/110
Screw Diameter(Mm): 55/110
Electrical Components: Omron, ABB, Delix, Rkc, Schneider, FUJI
Control System: PLC Control
Pipe Diameter Range(Mm): 16-63mm
Certification: ISO9001:2008
Automation: Automatic
Product Type: PVC Pipe
Computerized: Computerized
Qingdao JIEDONG plastic machinery Co., Ltd is a professional manufacturer of plastic machinery, who is one knowledge-intensive manufacturer dedicated to extruder kind of equipment of scientific research, development, fabrication, sales and service.
Our company was awarded science and technology progress enterprise title by Qingdao government, also holds ISO9001: 2000 and CE certificate, and has independent import and export rights.
Plastic machinery we manufactured widely covers series extruder of plastic pipes; plastic plate &sheet; plastic profile; granulating unit; plastic recycle machine and crusher, more than 20types and have more than 100 varieties.
Our plastic machinery with top quality and company hold very good reputation, so our plastic machine lines had far sold to 30 provinces and cities in domestic market and had export to India, Russia, Korea, Iran, Saudi Arabia, Turkey and Vietnam.

Our products include plastic pipe production line, plastic profile production line etc
such as:
machine for PVC pipe, PE/HDPE pipe, PPR pipe, PA/PU pipe, corrugated pipe, COD duct, pre-stressed corrugated pipe, PE carbon corrugated pipe etc.

Machine for plastic profile include: PVC sheet, PVC corner bead, PVC profile, PET sheet, PET packing belt, WPC sheet, WPC door/winder board, WPC profile etc.

auxiliary machinery include: Mixer, drying machine, crusher, pelletizer etc
